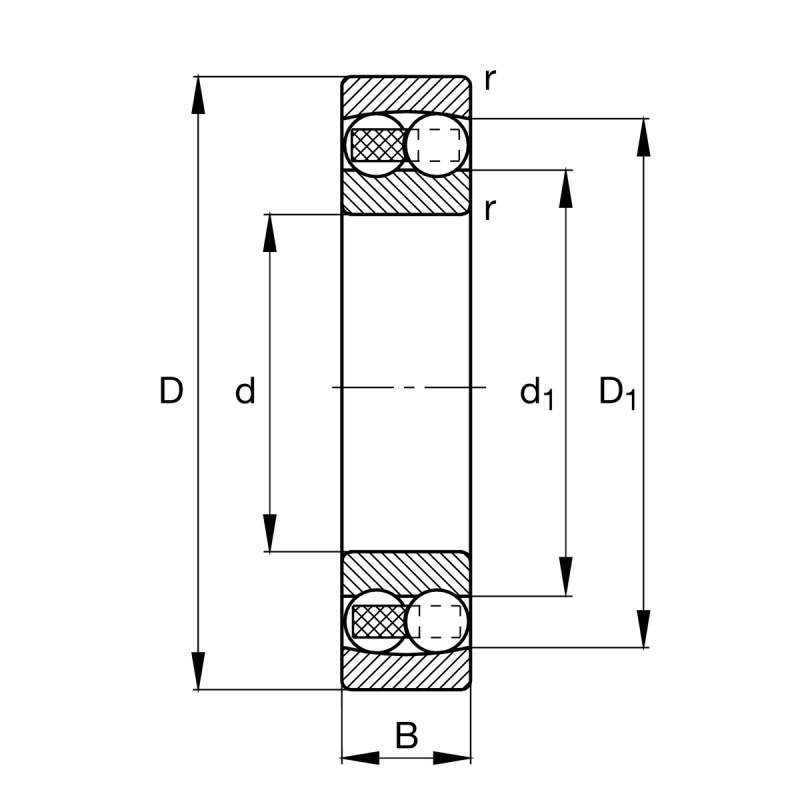

| Bore diameter | d | 85 | mm |
| Breite | B | 36 | mm |
| Basic static load rating, radial | C0r | 23,600 | |
| Limiting speed | nG | 7,200 |
| Außen-Ø | D | 150 | mm |
| Basic dynamic load rating, radial | Cr | 59,000 | |
| Fatigue load limit, radial | Cur | 1,380 | |
| Reference speed | nϑr | 5,200 |

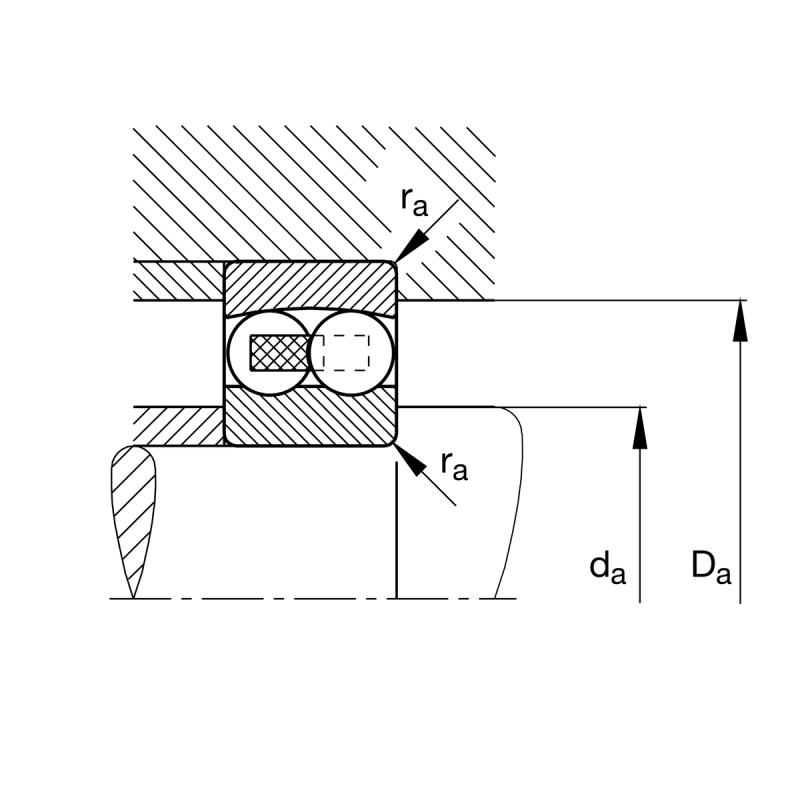

| Minimum diameter shaft shoulder | da min | 96 | mm |
| Maximum fillet radius | ra max | 2 | mm |
| Maximum diameter of housing shoulder | Da max | 139 | mm |
| Minimum chamfer dimension | rmin | 2 | mm |
| Shoulder diameter inner ring | d1 | 105,20 | mm |
| Shoulder diameter outer ring | D1 | 130 | mm |
| Hersteller | Teilenummer |
|---|---|
| GPZ Bearings | 1517 |
| RHP | 2217 |
| KOYO | 2217 |
| ISO | 85BS22 |
| SKF | 2217 (SKF) |
