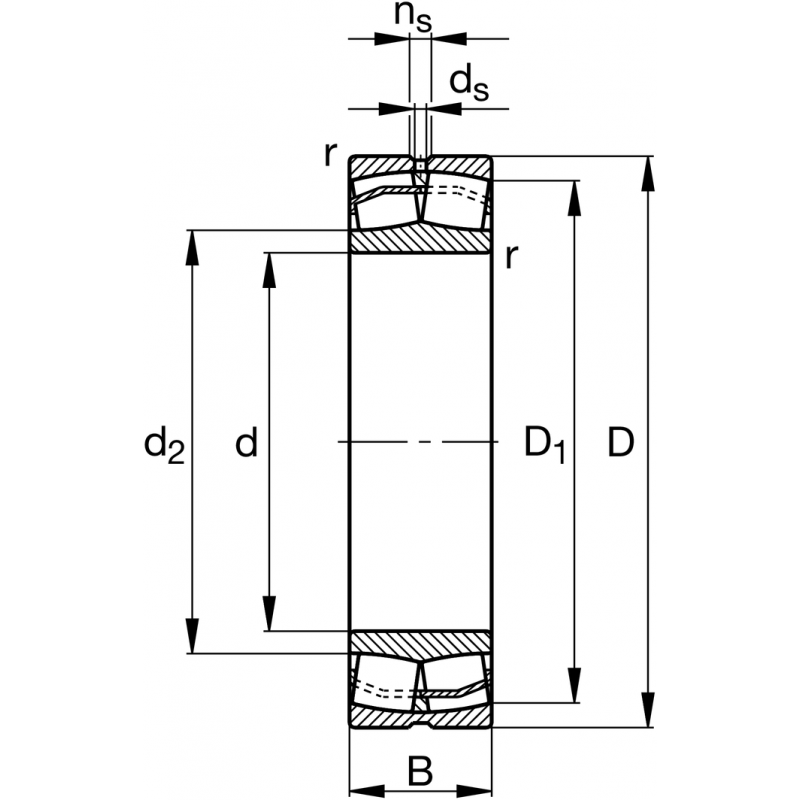

| Raceway diameter of the inner ring | d2 | 41,50 | mm |
| Minimum chamfer dimension | rmin | 1,10 | mm |
| Bore diameter outer ring | D1 | 59,90 | mm |

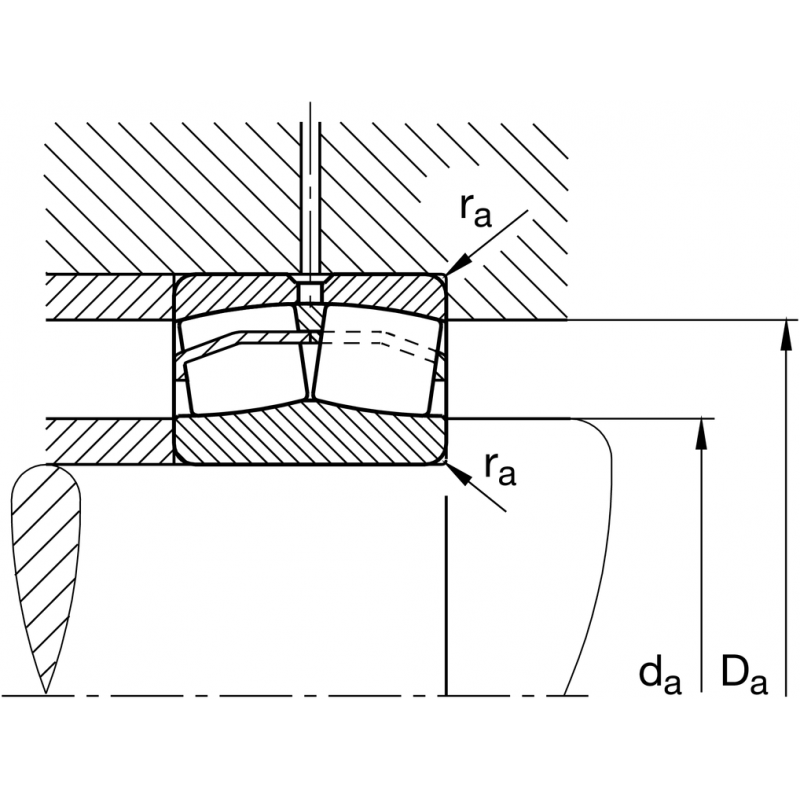

| Maximum recess radius | ra max | 1 | mm |
| Minimum diameter shaft shoulder | da min | 37 | mm |
| Maximum diameter of housing shoulder | Da max | 65 | mm |
| Reference speed | nϑr | 7,300 | |
| Fatigue load limit, radial | Cur | 7,200 | |
| Basic dynamic load rating, radial | Cr | 72,000 | |
| Außen-Ø | D | 72 | mm |
| Limiting speed | nG | 12,000 | |
| Basic static load rating, radial | C0r | 63,000 | |
| Breite | B | 19 | mm |
| Bore diameter | d | 30 | mm |
| Hersteller | Teilenummer |
|---|---|
| NSK | 21306 CD-E4-C3 (NSK) |
