| accessories accessories | 0574772000000000||bracket - steel | ||
| Elektrischer Anschluss | m20x1.5 | ||
| fluid temperature temperature celsius min to max range | -10 ... 75 °c | ||
| operating pressure pressure bar min to max range | 0.5 ... 10 bar | ||
| operating temperature f temperature fahrenheit min to max range | 14 ... 167 °f | ||
| over pressure pressure bar | 20 bar | ||
| pressure range pressure bar min to max range | 0.5 ... 10 bar | ||
| range | 20d | ||
| Baureihe | herion pressure switch | ||
| voltage | 30 … 250vac/dc |
| data performance shelf life | 3 years | ||
| eu country of origin | czechia | ||
| mil spec | available on request | ||
| operating pressure psi pressure psi min to max range | 7 ... 145 psi | ||
| operating temperature temperature celsius min to max range | -10 ... 75 °c | ||
| Anschlussgröße | g1/2 | ||

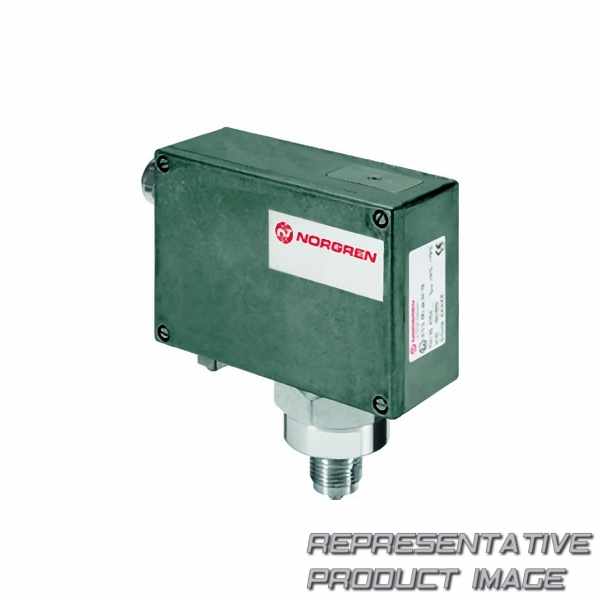

| product style | pressure switch | ||
| repeat accuracy ratio percent | 1 % | ||
| switching pressure difference pressure bar min to max range | 0.7 ... 8 bar |
