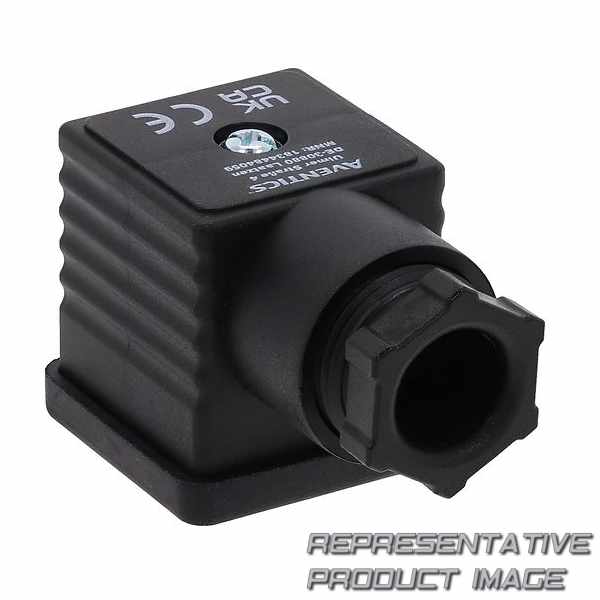

| Typ | valve plugs | ||
| connector standard | en 175301-803 | ||
| min. ambient temperature | -40 °c | ||
| max. current | 10 a | ||
| Schutzklasse | ip65 | ||
| number of poles | 3+e | ||
| cable exit angle | 90° | ||
| Gewicht | 0.03 kg |
| Anschlussart | screws | ||
| Shielding | unshielded | ||
| max. ambient temperature | 90 °c | ||

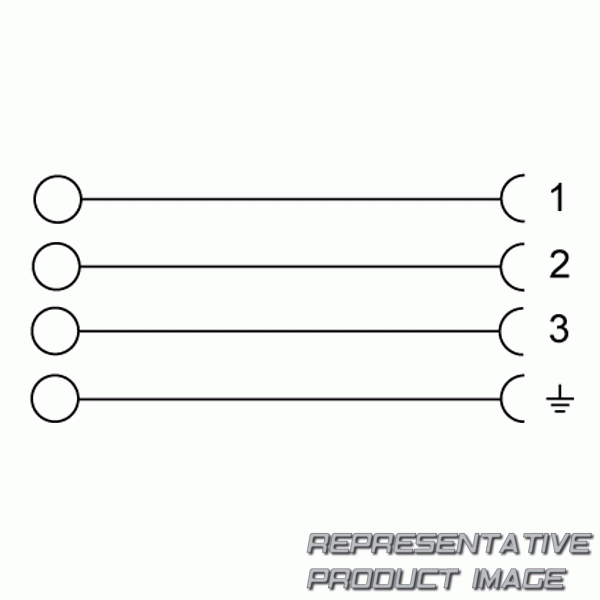

| contact assignment | 3+e | ||
| Electrical connection 1 | socket | ||
| cable exit | angled | ||
| mounting screw tightening torque | 0.4 nm | ||
| seal material | caoutchouc/butadiene caoutchouc |
