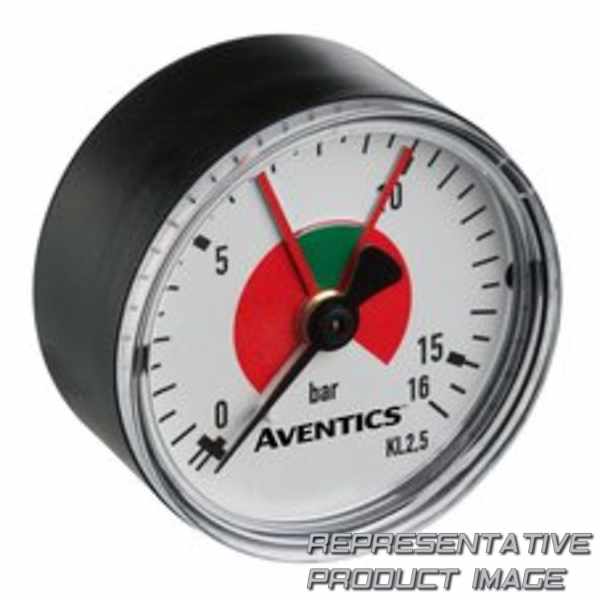

AVENTICS 1827231079

Name: 1827231079 AVENTICS
Brand: AVENTICS
SKU: 134247-de-eur
Price: 18.55 EUR
Availability: InStock

18,55 € ~~21,81 €~~ -14%

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	10 bar

Gewicht	90g

material thread		brass
Gehäusematerial		acrylonitrile butadiene styrene
pointer color		black
main scale color (outside)		black
background color		white
max. ambient temperature		60 °c
working pressure max		10 bar
display range max.		10 bar
range of application max.		8 bar
scale value		0,50
compressed air connection		g 1/8
standardization		en 837-1

material viewing window		polystyrene
Gewicht		0.09 kg
work area display, color		red, green
main scale unit (outside)		bar
Medium		compressed air
min. ambient temperature		-40 °c
working pressure min.		0 bar
display range min.		0 bar
range of application min.		0 bar
nominal diameter		50 mm
class		2,5
pressure gauge version		bourdon tube pressure gauge, back port, with adjustable work area display
