| Werkstoff Gehäuse | Anodised aluminium | ||
| Material underneath cover | Anodised aluminium | ||
| Pneumatic port 82 | G1/2 | ||
| Pneumatic port 22 | G1/4 | ||
| Pneumatic connection, port 11 | G1/4 | ||
| Befestigungsart | On service unit With accessories Either: | ||
| Electrical connection, IN | Plug connector, M12, 5-pin, A-coded | ||
| Mediumstemperatur | 5 °C ... 50 °C | ||
| Lagertemperatur | -10 °C ... 60 °C | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| CE marking (see declaration of conformity) | to UK Pressure Equipment Regulations | ||
| Zulassung | Special Equipment Type Test Certification | ||
| Signalbereich Analoger Eingang | 0 - 10 V | ||
| Nennbetriebsspannung DC | 24 V | ||
| Druckregelbereich | 0,4 bar ... 40 bar | ||

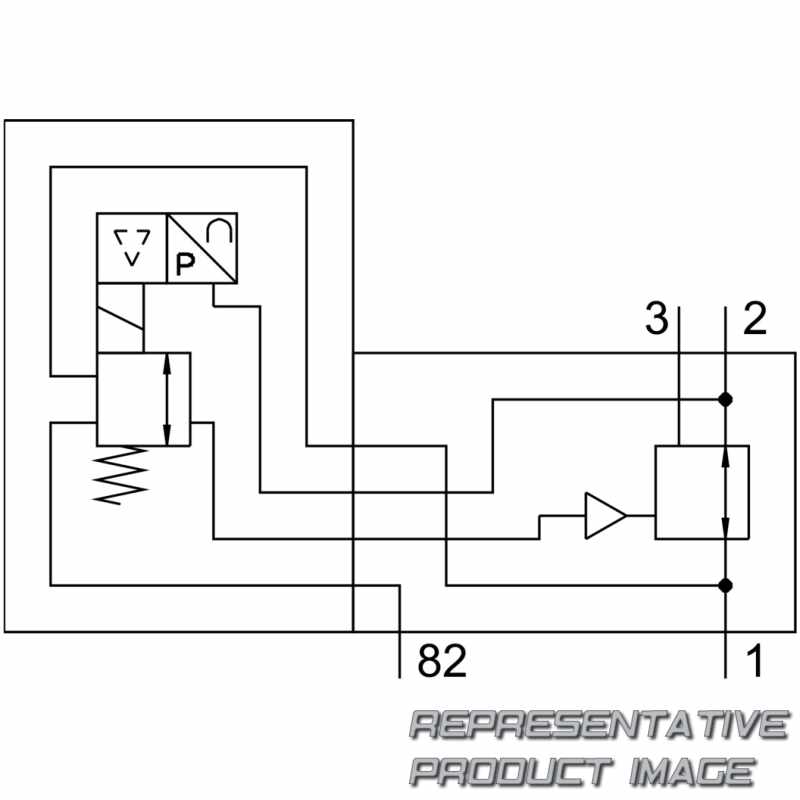

| Symbol | 00995417 | ||

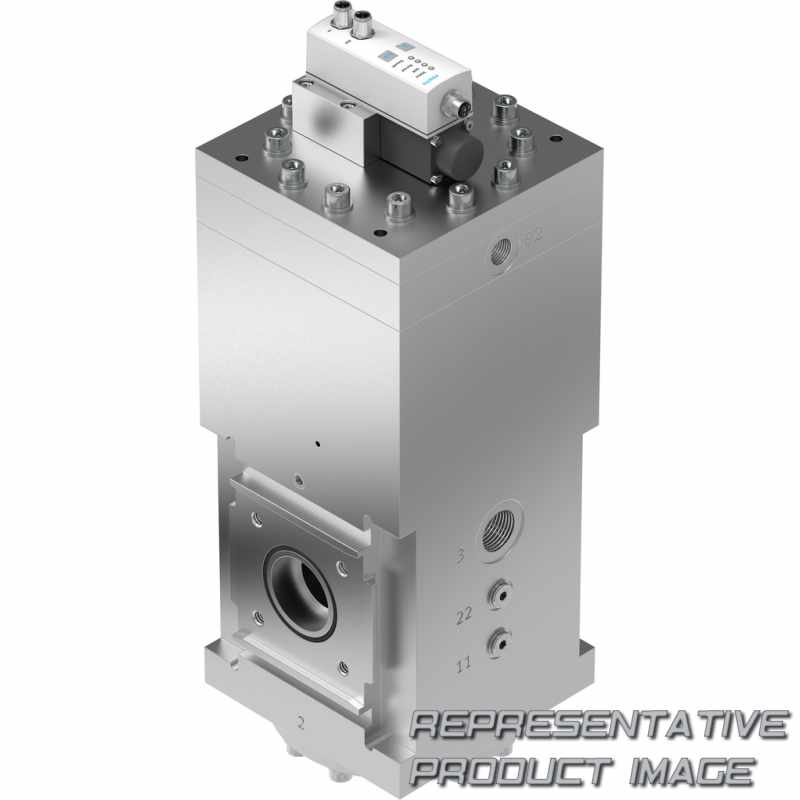

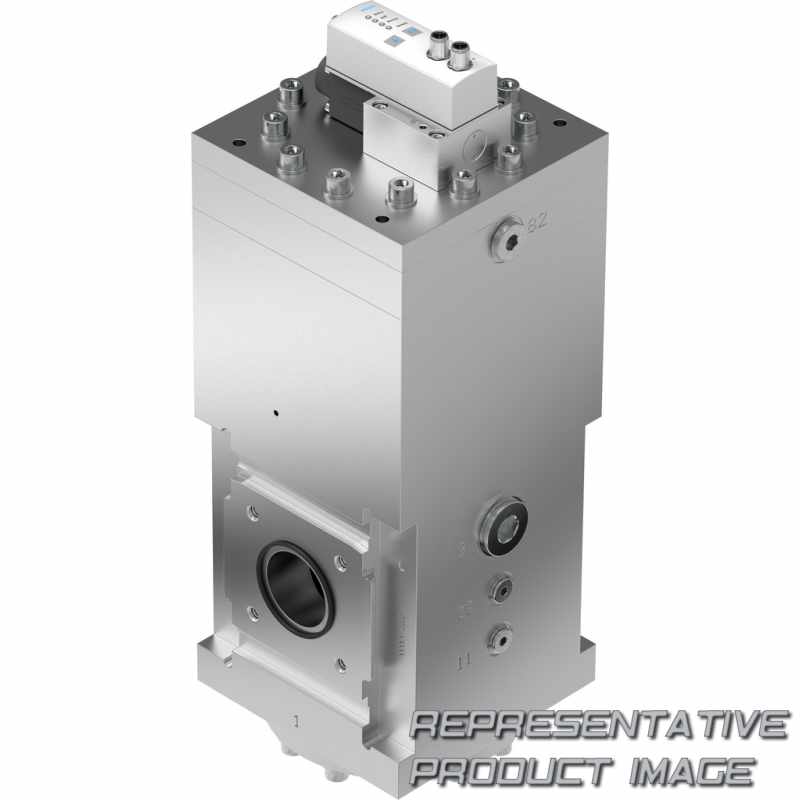

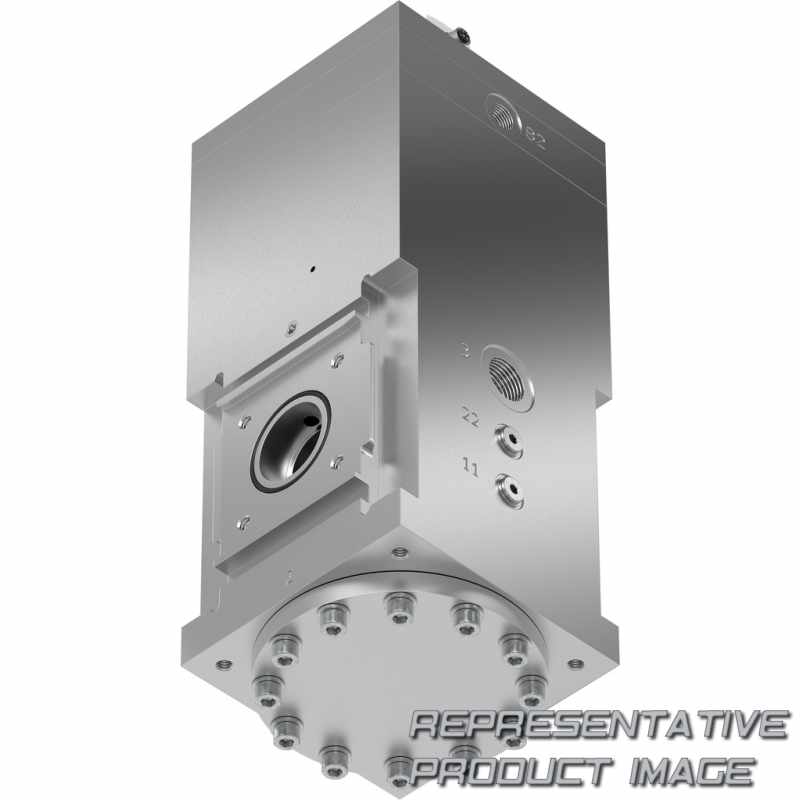

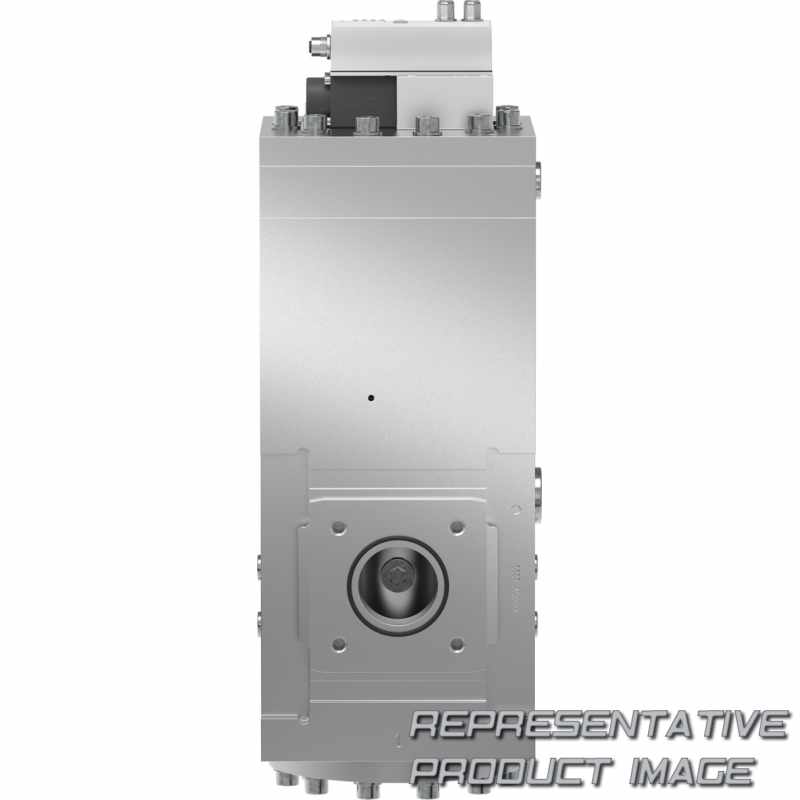

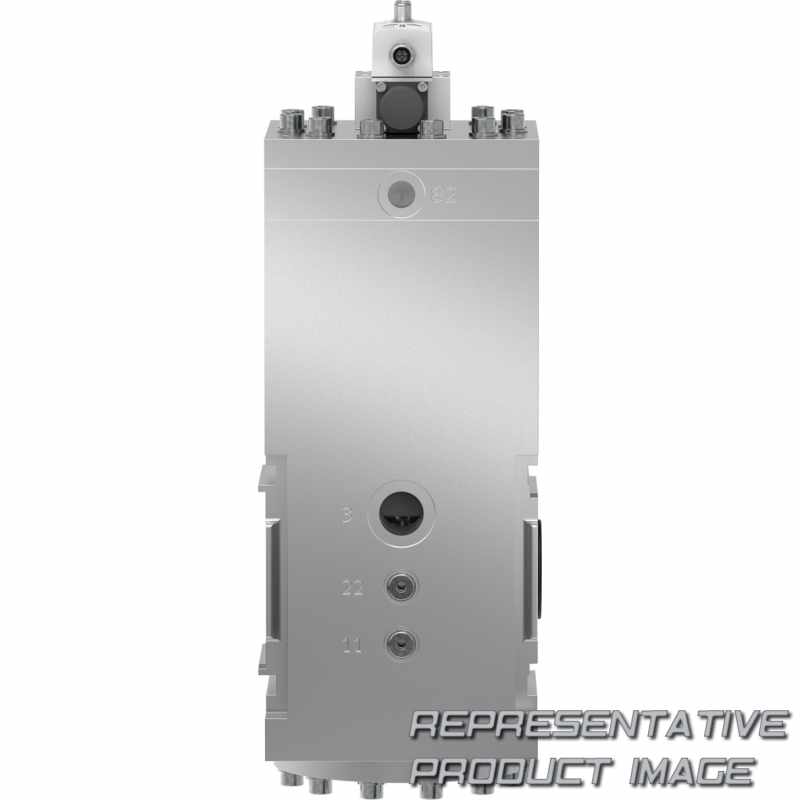

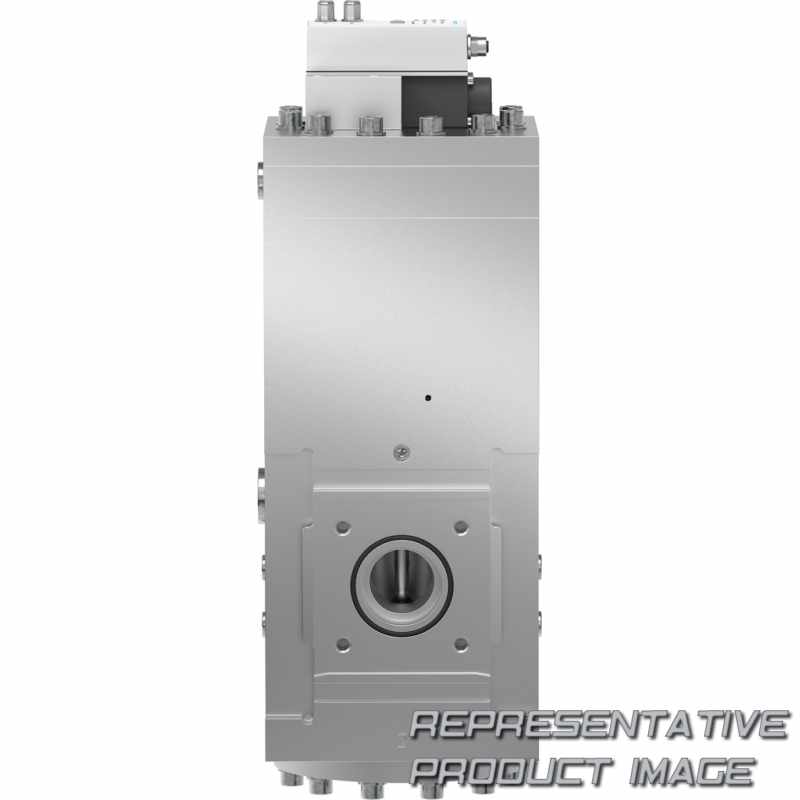

| Konstruktiver Aufbau | Electrically adjustable pressure regulator | ||
| Einbaulage | Vertical | ||
| Nennweite DN | 45 |
| Werkstoff Feder | Spring steel | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Pneumatischer Anschluss 3 | G1 | ||
| Pneumatischer Anschluss 2 | G1 | ||
| Pneumatischer Anschluss 1 | G1 | ||
| Electrical connection, OUT | Plug connector, M12, 5-pin, A-coded | ||
| Umgebungstemperatur | 5 °C ... 50 °C | ||
| Lebensmitteltauglichkeit | See supplementary material information | ||
| LABS-Konformität | VDMA24364 zone III | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| CE-Zeichen (siehe Konformitätserklärung) | In accordance with EU Pressure Equipment Directive | ||
| SETPOINT/ACTUAL values | Voltage type 0 - 10 V | ||
| Signalbereich Analoger Ausgang | 4 - 20 mA | ||
| Max. Druckhysterese | 0,1 bar | ||
| Betriebsdruck | 0 bar ... 50 bar | ||
| Controller function | Output pressure constant Via primary pressure compensation With secondary venting | ||
| Betätigungsart | Electric | ||
| Baureihe | L | ||
| Baugröße | 186 |
