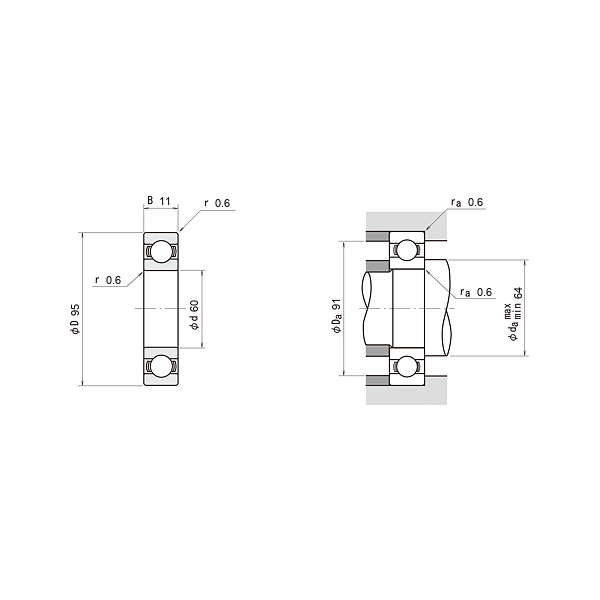

| Bore diameter | d | 60 | mm |
| Breite | B | 11 | mm |
| Basic static load rating, radial | C0r | 17,500 | |
| Limiting speed | nG | 10,500 |
| Außen-Ø | D | 95 | mm |
| Basic dynamic load rating, radial | Cr | 21,200 | |
| Fatigue load limit, radial | Cur | 840 | N |
| Reference speed | nϑr | 5,700 |
| Minimum diameter shaft shoulder | da min | 63,20 | mm |
| Maximum fillet radius | ra max | 0,60 | mm |
| Maximum diameter of housing shoulder | Da max | 91,80 | mm |
| Minimum chamfer dimension | rmin | 0,60 | mm |
| Shoulder diameter inner ring | d1 | 72,10 | mm |
| Shoulder diameter outer ring | D1 | 83 | mm |
| Hersteller | Teilenummer |
|---|---|
| Voith | 01.0028.13 |
| Fiat | 679456 |
| Fiat | 26794560 |
| Steyr-Daimler-Puch | 994010166 |
| GPZ Bearings | 7000112 |
| Volvo | 181385 |
| Faun | 9003012 |
| Steyr-Daimler-Puch | 994010140 |
| Steyr-Daimler-Puch | 000625016012 |
| MAN | 06.31410.1100 |
| KOYO | 16012 |
| NSK | 16012 (NSK) |
| ZF | 32G17990 |
| Iveco / Magirus | 60156787 |
| ZF | 0735330412 |
| ZF | 0635330008 |
| Steyr-Daimler-Puch | N000625016012 |
| Steyr-Daimler-Puch | 0638330008 |
| Volvo | 7181385 |
| SKF | 16012 (SKF) |
| Steyr-Daimler-Puch | 16012 |
| ISO | 60BC00 |
| Schiess-Froriep | 316012 |
| ZF | 0750116195 |
| RIV Officine di Villar Perosa | EL60 |
| Oerlikon-Boehringer | 2226X |
| Getrag Getriebe | 900.9.0035.71 |
| Alfatec | 2900.60018 |
| Neuweg Fertigung GmbH | 16012 |
| SKC | 5952050 |
| FLT | 16012 |
| NTN | 16012 (NTN) |
| SKC | 3013568 |
