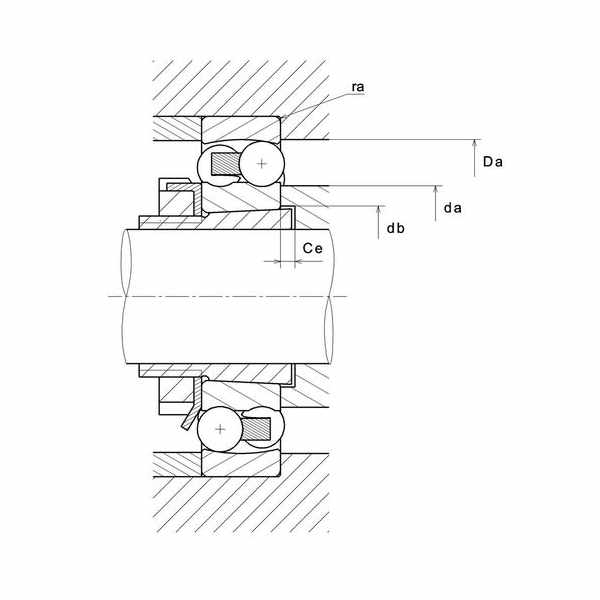

| ra max - Max shaft & housing fillet radius | 2,5 mm | ||
| Ce - Min length fro Sleeve | 9 mm | ||
| da max - Max shoulder diameter IR | 150 mm | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 2400 tr/min | ||
| Y2 - Upper axial load coefficient | 4,40 | ||
| Y0 - Static axial load coefficient | 3 | ||
| Cu - Fatigue limit load | 2,1 kN | ||
| C - Dynamic load | 161 kN | ||
| Associated sleeve reference | H322X | ||

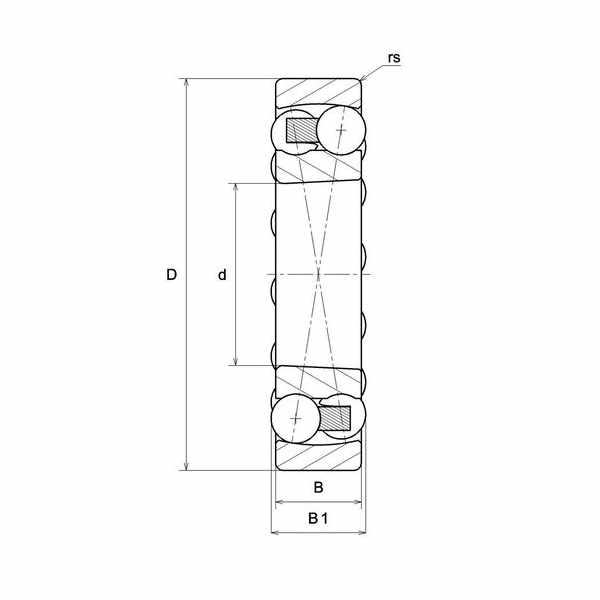

| B1 - overall width | 56 mm |
| Da max - Max shoulder diameter OR | 227 mm | ||
| db - Min diameter for Sleeve | 117 mm | ||
| da min - Min shoulder diameter IR | 123 mm | ||
| Tmin - Min operating temperature | -20 °C | ||
| Nlim - Oil lubrication limit speed | 3000 tr/min | ||
| Y1 - Lower axial load coefficient | 2,80 | ||
| e - Coefficient | 0,22 | ||
| C0 - Static load | 72,5 kN | ||
| Radial clearance class | CN | ||
| rs - Min fillet radius | 3 mm | ||
| Brand | NTN |
