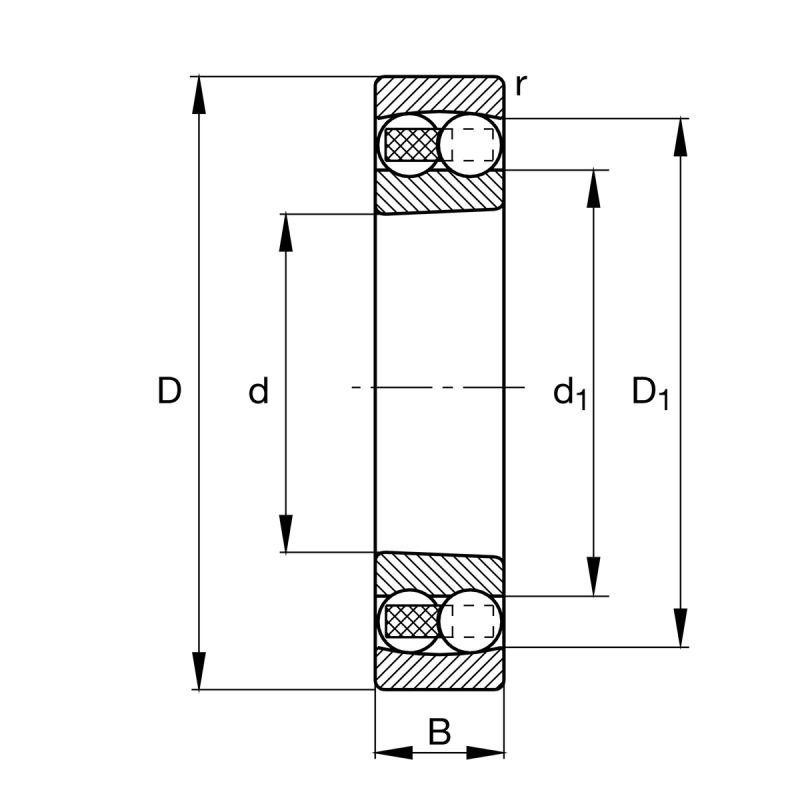

| Bore diameter | d | 85 | mm |
| Breite | B | 41 | mm |
| Basic static load rating, radial | C0r | 38,000 | |
| Limiting speed | nG | 5,800 |
| Außen-Ø | D | 180 | mm |
| Basic dynamic load rating, radial | Cr | 99,000 | |
| Fatigue load limit, radial | Cur | 2,070 | |
| Reference speed | nϑr | 4,300 |

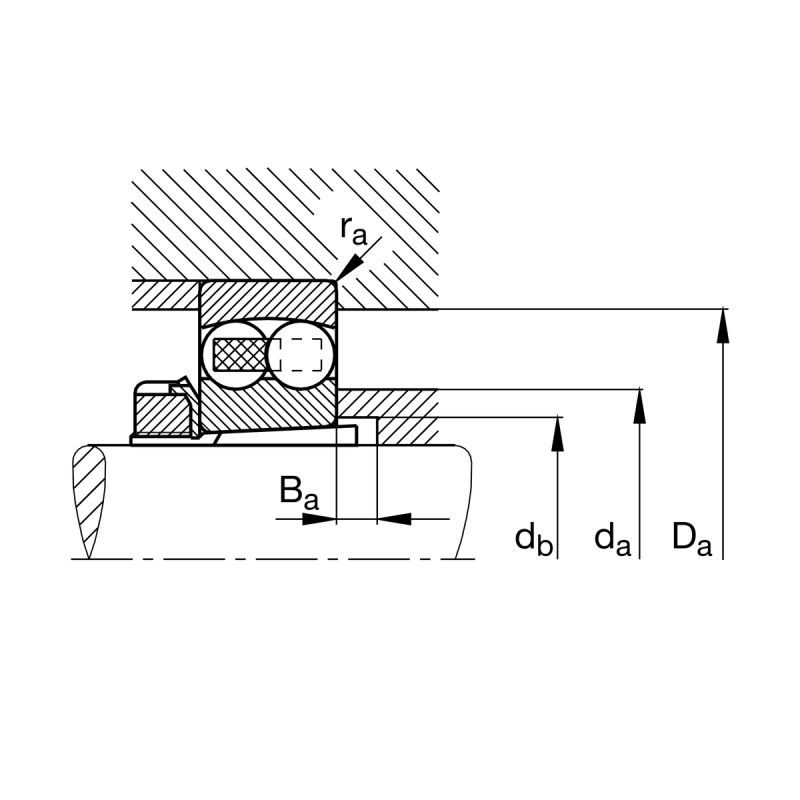

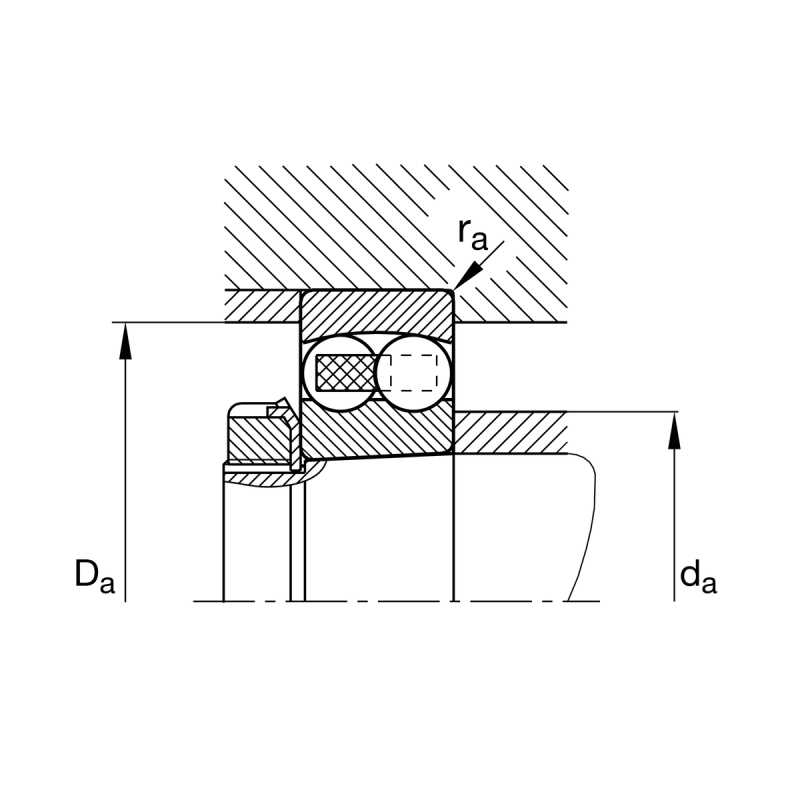

| Minimum diameter shaft shoulder | da min | 99 | mm |
| Maximum diameter of housing shoulder | Da max | 166 | mm |
| Minimum cavity width of the sleeve | Ba min | 6 | mm |
| Maximum diameter shaft shoulder | da max | 114 | mm |
| Minimum cavity diameter of the sleeve | db min | 91 | mm |
| Maximum fillet radius | ra max | 2,50 | mm |
| Minimum chamfer dimension | rmin | 3 | mm |
| Shoulder diameter inner ring | d1 | 117,20 | mm |
| Shoulder diameter outer ring | D1 | 151,90 | mm |
| Hersteller | Teilenummer |
|---|---|
| KOYO | 1317K |
| GPZ Bearings | 111317 |
| NTN | 1317K (NTN) |
| RHP | 1317K |
| SKF | 1317 K (SKF) |
| RIV Officine di Villar Perosa | 18BJK |
| SKF | 1317 K/C3 (SKF) |
