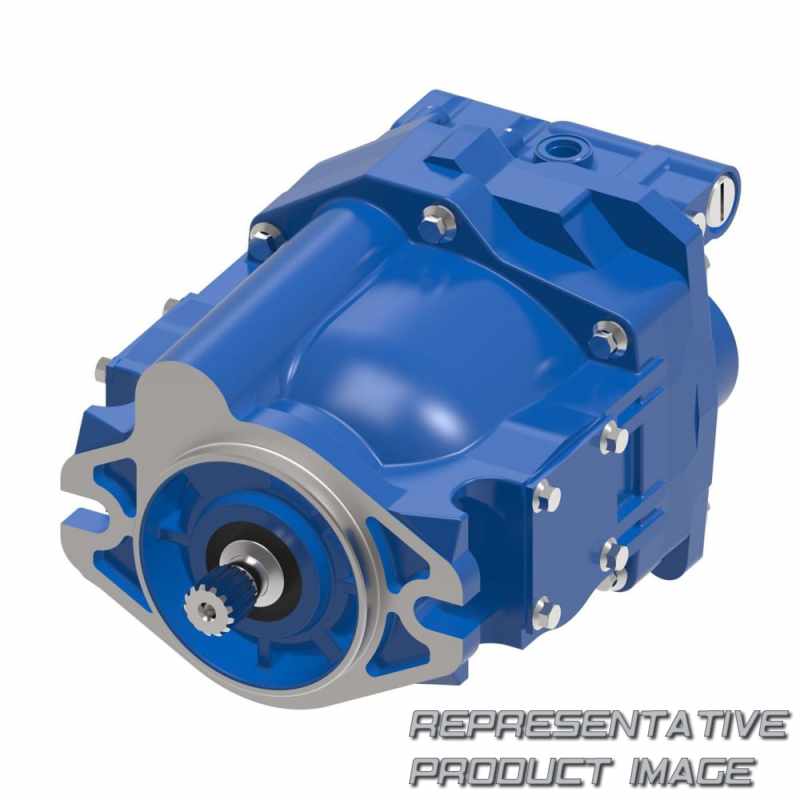

| pumps | pvm; 45cc; 280 bar; cw (rh); 1800 rpm; mtg flng sae j744-101-2 (b 2-bolt); shaft sae b-b; str keyed ; ports sae j518 flng; sae aux; port loc side; cntrl pc; aux mtg sae a; 2-bolt; 9t spline ; | ||
| Schluckvolumen | 045 : 45,1 cm3/r [2.75 in3/r] (315 bar max) | ||
| input rotation | r : clockwise (right hand) | ||
| Befestigungsflansch | c : sae j744-101-2 (b 2-bolt) (models 018, 028, 045) | ||
| port options | 02 : sae j518 flange ports, sae auxiliary ports | ||
| control | a : pressure compensator | ||
| flow comp setting / unload vlv standby | 00 : none | ||
| compensator special feature | 0 : none | ||
| paint | a : blue | ||
| design code | a : a |
| code title | pvm : vickers variable displacement open circuit piston pumps | ||
| valve plate | e : industrial (1800 r/min max) | ||
| input shaft | 06 : sae j744-25-1, sae b-b, straight keyed (model 018, 028, 045 and 057) | ||
| main port location | s : side | ||
| pump special features | aa : adjustable max displacement stop (contains single shaft seal) | ||
| pressure comp setting | 28 : 276-284 bar [4002-4118 lbf/in2] | ||
| other compensation / unload vlv reset | 00 : none | ||
| auxiliary mounting | a : sae a, 2-bolt, 9t spline (all models) | ||
| customer identification | 0 : none |
