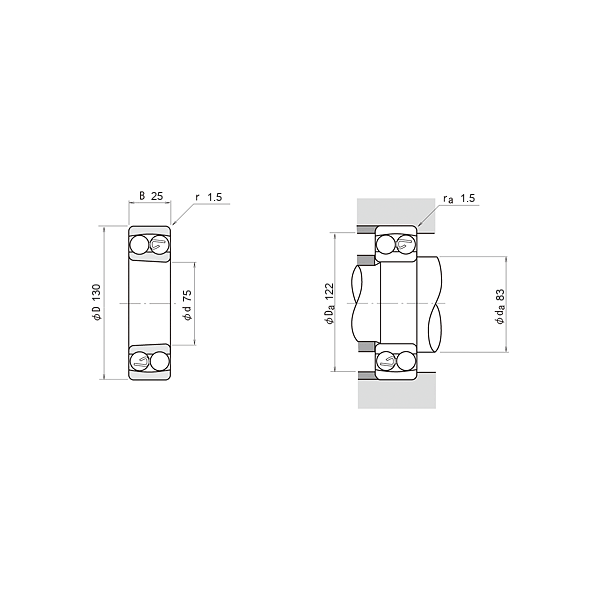

| Minimum cavity diameter of the sleeve | db min | 80 | mm |
| Maximum diameter shaft shoulder | da max | 92 | mm |
| Minimum cavity width of the sleeve | Ba min | 5 | mm |
| Minimum diameter shaft shoulder | da min | 84 | mm |
| Maximum diameter of housing shoulder | Da max | 121 | mm |
| Maximum fillet radius | ra max | 1,50 | mm |
| Bore diameter | d | 75 | mm |
| Breite | B | 25 | mm |
| Basic static load rating, radial | C0r | 15,700 | |
| Limiting speed | nG | 5,700 |
| Außen-Ø | D | 130 | mm |
| Basic dynamic load rating, radial | Cr | 39,000 | |
| Fatigue load limit, radial | Cur | 980 | N |
| Reference speed | nϑr | 5,500 |
| Minimum chamfer dimension | rmin | 1,50 | mm |
| Shoulder diameter inner ring | d1 | 93,70 | mm |
| Shoulder diameter outer ring | D1 | 113,60 | mm |
| Hersteller | Teilenummer |
|---|---|
| NTN | 1215K (NTN) |
| RIV Officine di Villar Perosa | 12AJK |
| SKF | 1215 K (SKF) |
| RHP | 1215K |
| GPZ Bearings | 111215 |
| NSK | 1215KTNGC3 |
| Marlin-Rockwell Corp. | 1215K |
| SKC | 5931844 |
| KOYO | 1215K |
| SKF | 1215-K/C3 (SKF) |
| Neuweg Fertigung GmbH | 1215KC3TNG |
