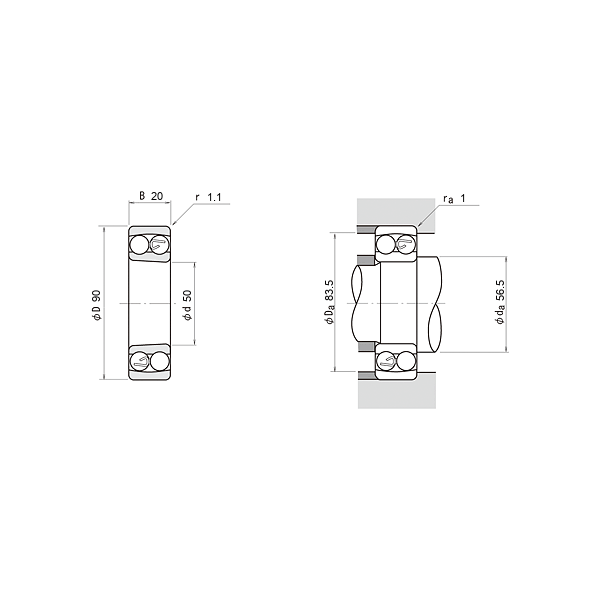

| Bore diameter | d | 50 | mm |
| Breite | B | 20 | mm |
| Basic static load rating, radial | C0r | 8,100 | |
| Limiting speed | nG | 8,700 |
| Außen-Ø | D | 90 | mm |
| Basic dynamic load rating, radial | Cr | 22,900 | |
| Fatigue load limit, radial | Cur | 520 | N |
| Reference speed | nϑr | 7,700 |
| Minimum diameter shaft shoulder | da min | 57 | mm |
| Maximum fillet radius | ra max | 1 | mm |
| Maximum diameter of housing shoulder | Da max | 83 | mm |
| Minimum chamfer dimension | rmin | 1,10 | mm |
| Shoulder diameter inner ring | d1 | 62,70 | mm |
| Shoulder diameter outer ring | D1 | 77,10 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | 1210-E TN9-C3 (SKF) |
