| Werkstoff Sichtscheibe | PA | ||
| Werkstoff Schale | Wrought aluminium alloy | ||
| Werkstoff Gehäuse | Die-cast aluminium | ||
| Werkstoff Anschlussplatte | Die-cast aluminium | ||
| Werkstoff Abdeckung | PA-reinforced | ||
| Produktgewicht | 2.000 g | ||
| Oil viscosity | ISO VG 32 | ||
| Lagertemperatur | -10 °C ... 60 °C | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| Ex-Umgebungstemperatur | -10°C <= Ta <= +60°C | ||
| Ex-Zündschutzart Gas | Ex h IIC T6 Gb X | ||
| ATEX-Kategorie Gas | II 2G | ||
| Zulassung | c UL us - Recognized (OL) | ||
| Min. flow rate for lubricator function | 100 l/min | ||

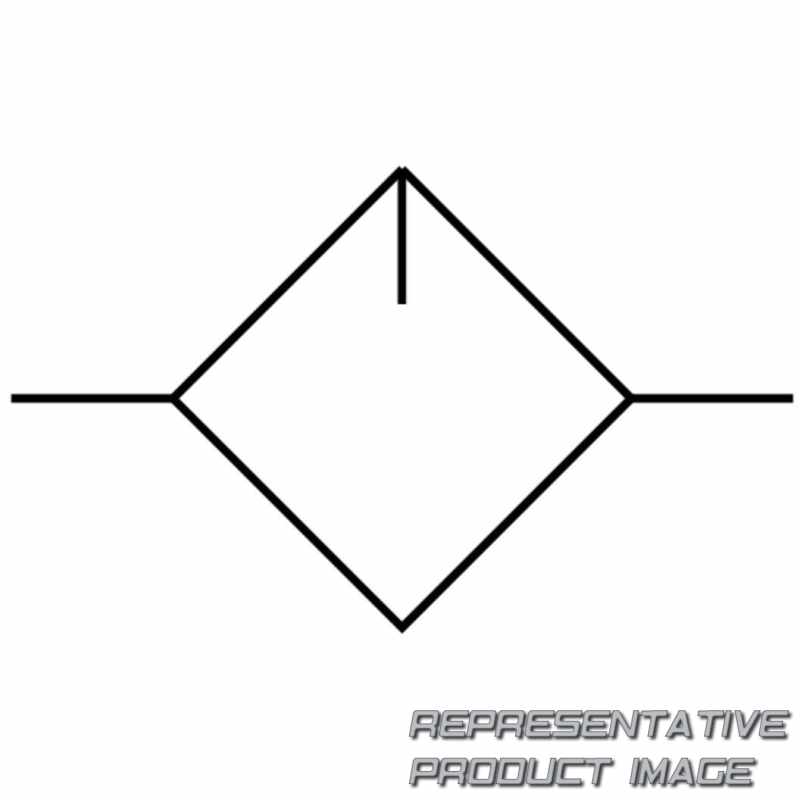

| Symbol | 00991532 | ||
| Max. oil capacity | 490 cm³ | ||
| Einbaulage | Vertical +/-5° | ||
| Baugröße | 9 |
| Material cup seal | NBR | ||
| Material module connector | Die-cast aluminium | ||
| Werkstoff Dichtungen | NBR | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Befestigungsart | In-line installation With accessories | ||
| Umgebungstemperatur | -10 °C ... 60 °C | ||
| Mediumstemperatur | -10 °C ... 60 °C | ||
| LABS-Konformität | VDMA24364-B1/B2-L | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Ex-Zündschutzart Staub | Ex h IIIC T60°C Db X | ||
| ATEX-Kategorie Staub | II 2D | ||
| Explosionsschutz | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | ||
| Standard nominal flow rate | 8.500 l/min ... 27.000 l/min | ||
| Betriebsdruck | 1 bar ... 16 bar | ||
| Bowl guard | Plastic bowl guard Integrated as metal bowl | ||

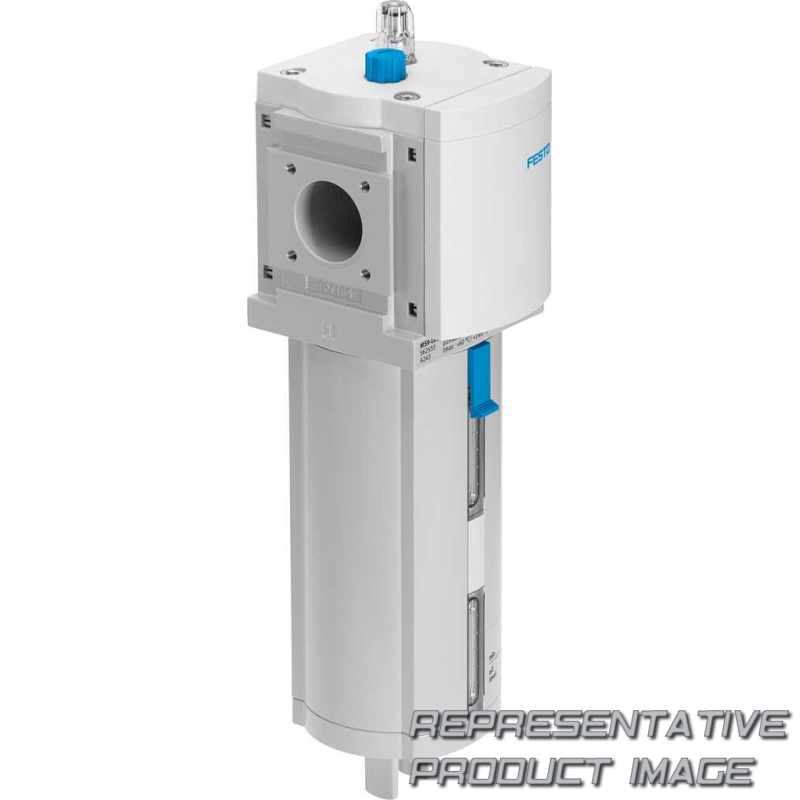

| Konstruktiver Aufbau | Proportional standard mist lubricator | ||
| Baureihe | MS |
