| cylinder tube | steel, chrome-plated | ||
| seal material | acrylonitrile butadiene rubber | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| max. particle size | 50 µm | ||
| min. medium temperature | -20 °c | ||
| Gewicht | 21.6 kg | ||
| working pressure max | 8 bar | ||
| max. ambient temperature | 70 °c | ||
| extracting piston force | 25000 n | ||
| pressure for determining piston forces | 8 bar | ||
| Anschlüsse | g 1/2 | ||
| piston ø | 250 mm |
| material, front cover | steel, chrome-plated | ||
| piston rod | steel, chrome-plated | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| max. medium temperature | 70 °c | ||
| Medium | compressed air | ||
| Kolbenstangengewinde | m24x2 | ||
| working pressure min. | 2 bar | ||
| min. ambient temperature | -20 °c | ||
| retracting piston force | 24300 n | ||

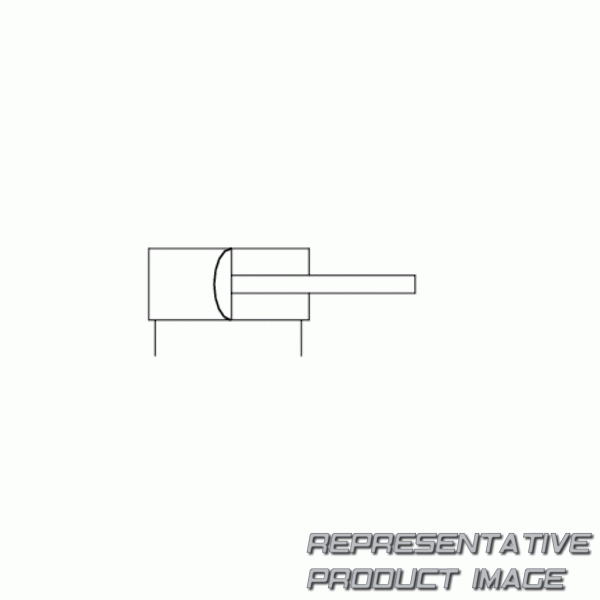

| Funktionsprinzip | double-acting | ||
| Hub | 80 mm |
