| rated insulation voltage (ui) | 440 v | ||
| rated operational voltage (ue) - max | 400 v | ||
| static heat dissipation, non-current-dependent | 0 w | ||
| tripping characteristic | d | ||
| used with | pli miniature circuit breaker |
||
| connectable conductor cross section (multi-wired) - max | 25 mm² | ||
| number of poles | two-pole | ||
| Features | additional equipment possible | ||
| built-in depth | 70.5 mm | ||
| connectable conductor cross section (multi-wired) - min | 1 mm² | ||
| heat dissipation per pole, current-dependent | 0 w | ||
| special features | ambient temperature hint: a 1 °c increase results in a 0.5% linear reduction of current carrying capacity | ||
| Overvoltage category | iii | ||
| number of poles (total) | 2 | ||
| rated short-circuit breaking capacity (iec 60947-2) at 400 v | 0 ka | ||
| frequency rating - max | 60 hz | ||
| rated short-circuit breaking capacity (en 60898) at 400 v | 10 ka | ||
| release characteristic | d | ||
| rated short-circuit breaking capacity (en 60898) at 230 v | 10 ka | ||
| rated operational current for specified heat dissipation (in) | 10 a | ||
| Produktgewicht | .203 kg | ||
| product height | 75.5 mm | ||
| ean | 4015081012404 |
| voltage type | ac | ||
| Anwendung | switchgear for residential and commercial applications xpole - switchgear for residential and commercial applications |
||
| frequency rating - min | 50 hz | ||
| equipment heat dissipation, current-dependent | 3 w | ||

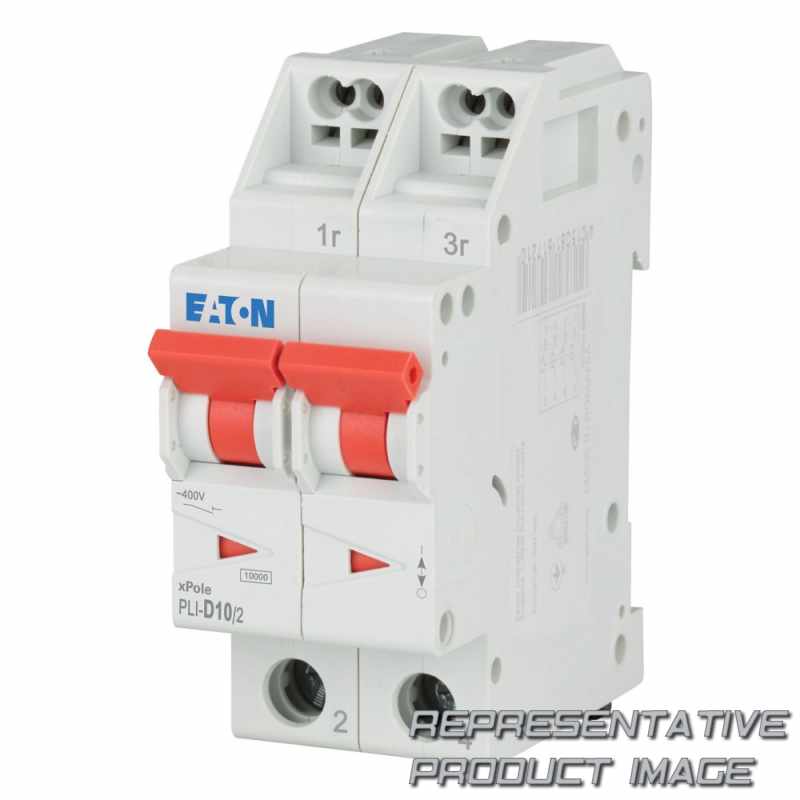

| Typ | miniature circuit breaker pli |
||
| ambient operating temperature - min | -25 °c | ||
| connectable conductor cross section (solid-core) - min | 1 mm² | ||
| rated switching capacity (iec/en 60898-1) | 10 ka | ||
| rated impulse withstand voltage (uimp) | 4 kv | ||
| Verschmutzungsgrad | 2 | ||
| ambient operating temperature - max | 75 °c | ||
| rated short-circuit breaking capacity (iec 60947-2) at 230 v | 0 ka | ||
| Schutzart | ip20 | ||
| connectable conductor cross section (solid-core) - max | 25 mm² | ||
| width in number of modular spacings | 2 | ||
| amperage rating | 10 a | ||
| current limiting class | 3 | ||
| heat dissipation capacity | 0 w | ||
| number of poles (protected) | 2 | ||
| compliances | rohs conform | ||
| product width | 35 mm | ||
| product length/depth | 84 mm |
