| indirect mounting for series | trb, its | ||
| sensor | with stretched impulse | ||
| nominal current, actuated state | < 25 ma | ||
| Schutzklasse | ip65 | ||
| max. ambient temperature | 70 °c | ||
| led status display | red | ||
| short circuit resistance | protected against polarity reversal | ||
| Gehäusematerial | epoxy resin |
| Ausführung | sensor responds to ferromagnetic material., welding-proof, with stretched impulse | ||
| type of contact | electronic pnp | ||
| quiescent current (without load) | < 14 ma | ||
| min. ambient temperature | -10 °c | ||
| voltage drop u at imax | ≤ 2,0 v | ||

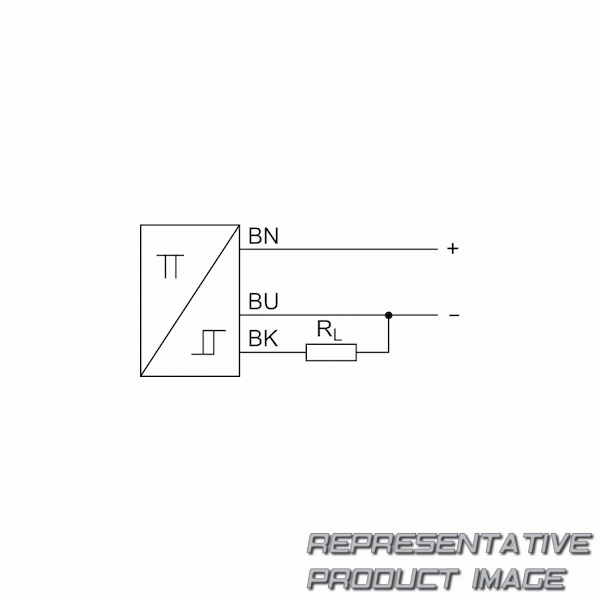

| electrical connection 2, number of poles | 3-pin | ||
| Gewicht | 0.05 kg |
