| direct mounting for series | khz | ||
| type of contact | reed | ||
| switching capacity | 3 w / 5 va | ||
| min. ambient temperature | -20 °c | ||
| voltage drop u at imax | i*rs | ||
| dc switching current, max. | 0.13 a | ||
| switching point precision | ±0,1 mt | ||
| electrical connection 2, type | m8, plug | ||
| operating voltage dc, min. | 10 v dc | ||
| operating voltage ac, min. | 10 v ac | ||
| short circuit resistance | protected against polarity reversal | ||
| Schwingfestigkeit | 60 g (50 ... 2000 hz) |
| slot width | 9 mm groove | ||
| nominal current, actuated state | < 7 ma | ||
| Schutzklasse | ip67, ip65 | ||
| max. ambient temperature | 80 °c | ||
| protective resistor for reed | 27 Ω | ||
| ac switching current, max. | 0.2 a | ||
| led status display | yellow | ||

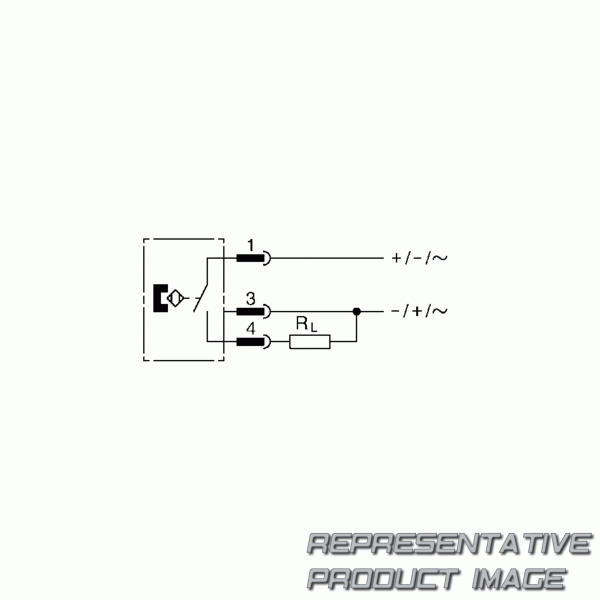

| electrical connection 2, number of poles | 3-pin | ||
| operating voltage dc, max. | 30 v dc | ||
| operational voltage ac, max. | 30 v ac | ||
| Schockfestigkeit | 100 g / 11 ms | ||
| Gehäusematerial | polyamide |
