| indirect mounting for series | trb, pra, its, mni, csl-rd, icm, rpc, trr, flt, cvi | ||
| type of contact | reed | ||
| Schutzklasse | ip67 | ||
| max. ambient temperature | 80 °c | ||
| protective resistor for reed | 27 Ω | ||
| ac switching current, max. | 0.13 a | ||
| led status display | yellow | ||

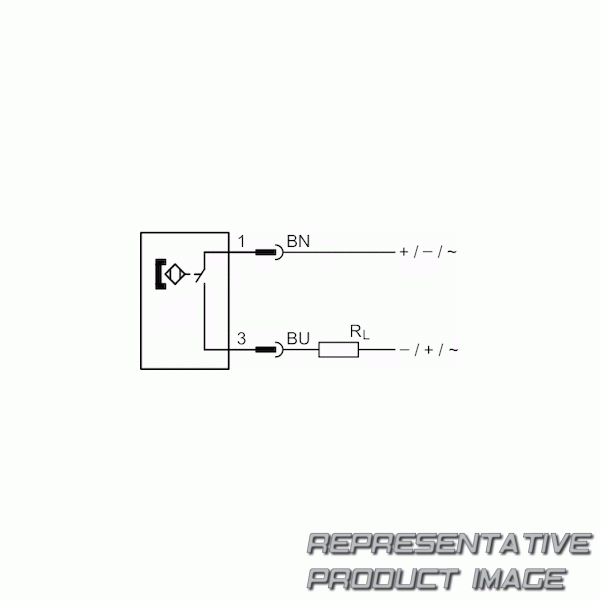

| electrical connection 2, number of poles | 2-pin | ||
| operating voltage dc, max. | 36 v dc | ||
| operational voltage ac, max. | 30 v ac | ||
| Schockfestigkeit | 100 g / 11 ms | ||
| Gehäusematerial | polyamide |
| Ausführung | with stretched impulse | ||
| switching capacity | 10 w / 10 va | ||
| min. ambient temperature | -20 °c | ||
| voltage drop u at imax | 2,1 v + i*rs | ||
| dc switching current, max. | 0.13 a | ||
| switching point precision | ±0,1 mt | ||
| electrical connection 2, type | m8, plug | ||
| operating voltage dc, min. | 12 v dc | ||
| operating voltage ac, min. | 12 v ac | ||
| short circuit resistance | protected against polarity reversal | ||
| Schwingfestigkeit | 30 g (50 - 2000 hz) |
