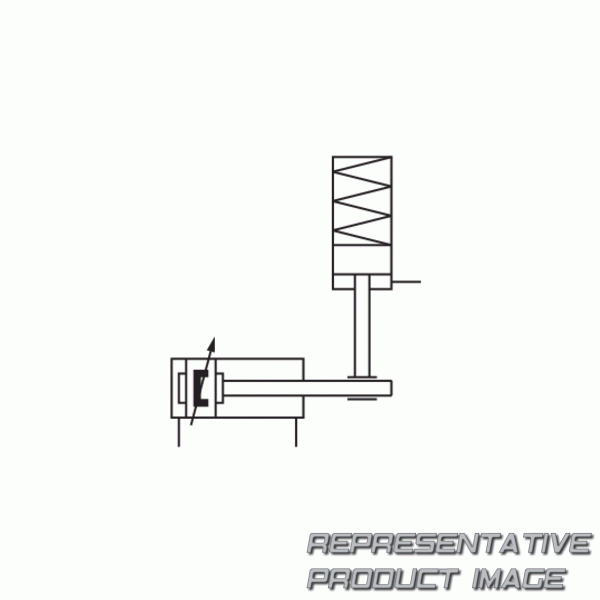

| Funktion | hold: spring force, release: compressed air | ||
| suitable piston rod Ø | 25 mm | ||
| compressed air connection | g 1/8 | ||
| release pressure max. | 8 bar | ||
| max. medium temperature | 60 °c | ||
| max. particle size | 5 µm | ||
| max. ambient temperature | 60 °c | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| Gewicht | 2.9 kg |
| piston Ø | 100 mm | ||
| Piston rod extension | 77 mm | ||
| release pressure min. | 4 bar | ||
| min. medium temperature | -10 °c | ||
| Medium | compressed air | ||
| min. ambient temperature | -10 °c | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Static holding force | 6300 n | ||
| housing | aluminum |
