| seal material | acrylonitrile butadiene rubber | ||
| Gehäusematerial | die-cast aluminum | ||
| recommended pre-filtering | 5 µm | ||
| internal air consumption qv max. | 0.5 l/min | ||
| pressure supply | single | ||
| regulator function | with relieving air exhaust | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 20 bar | ||
| regulation range max. | 10 bar | ||
| mounting orientation | any | ||
| nominal flow qn | 15000 l/min | ||

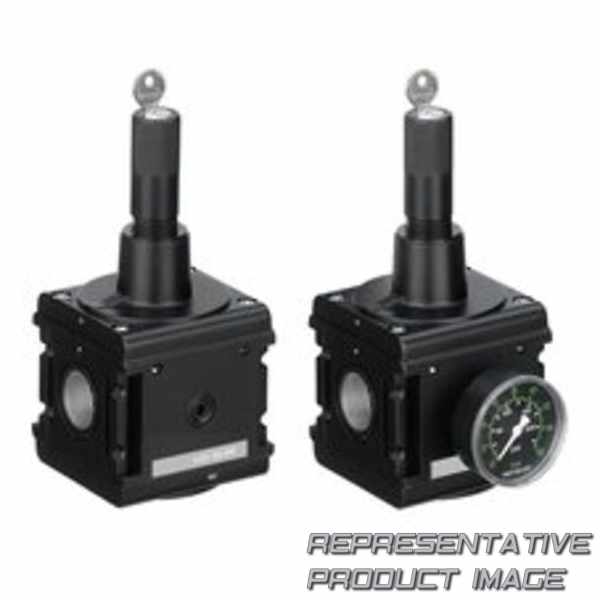

| parts | pressure regulator |
| material front plate | acrylonitrile butadiene styrene | ||
| Gewicht | 1.66 kg | ||
| Medium | compressed air, neutral gases | ||
| lock type | standard locking, with key | ||
| regulator type | can be assembled into blocks | ||
| activation | mechanical | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 0.5 bar | ||
| regulation range min. | 0.5 bar | ||
| pressure gauge | with pressure gauge | ||
| port | g 3/4 | ||
| Funktion | standard pressure regulator |
