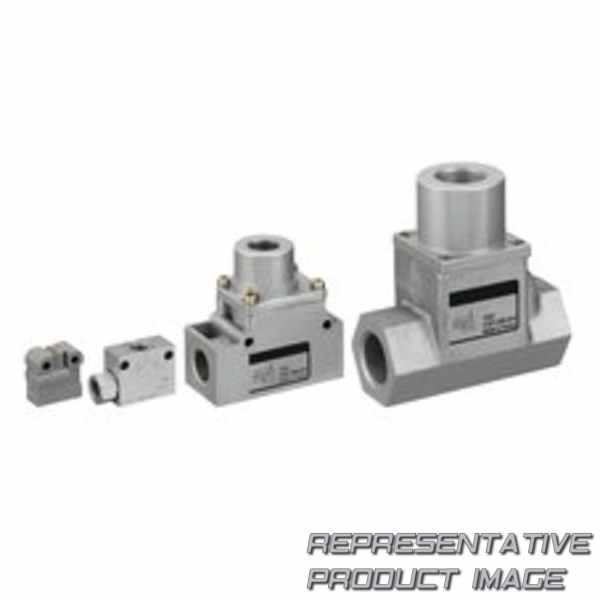

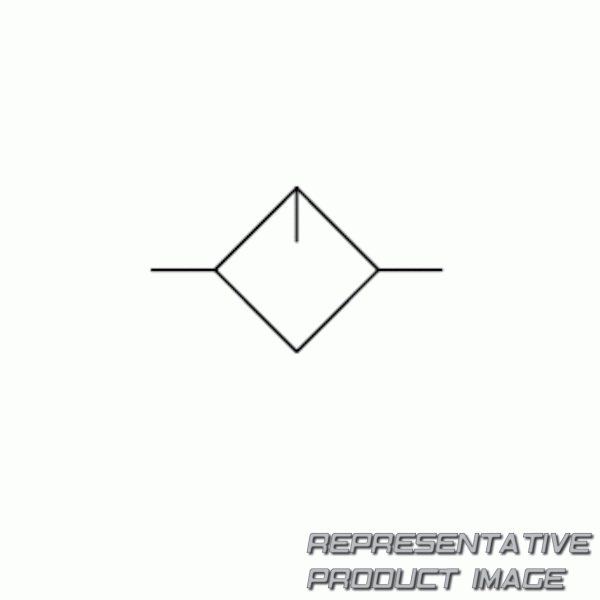

| parts | lubricator | ||
| compressed air connection | g 3/8 | ||
| mounting orientation | vertical | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 60 °c | ||
| type of filling | manual oil filling | ||
| inspection glass | with window | ||
| Funktion | can be assembled into blocks | ||
| Gehäusematerial | die cast zinc | ||
| seal material | acrylonitrile butadiene rubber |
| reservoir | reservoir, metal, with inspection glass | ||
| nominal flow qn | 1800 l/min | ||
| working pressure min. | 0.5 bar | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| lubricator reservoir volume | 50 cm³ | ||
| oil dosing at 1000 l/min | 1-2 drops | ||
| Gewicht | 0.502 kg | ||
| material front plate | acrylonitrile butadiene styrene | ||
| material reservoir | die cast zinc |
