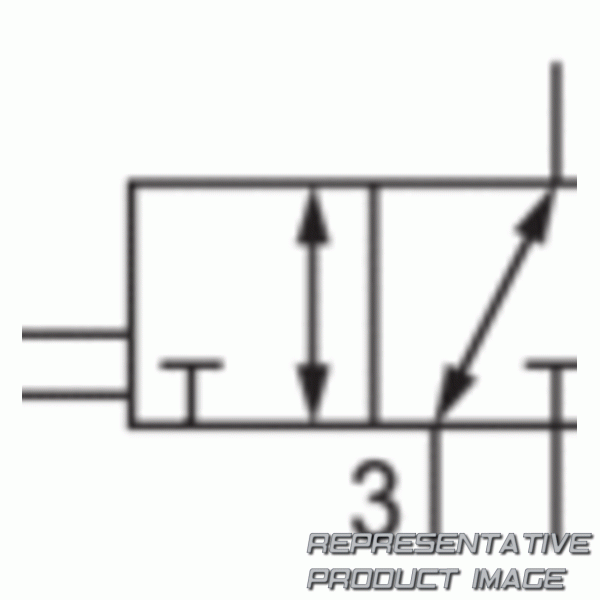

| Typ | spool valve | ||
| compressed air connection 1 | g 1/8 | ||
| compressed air connection 2 | g 1/8 | ||
| min. ambient temperature | 0 °c | ||
| min. medium temperature | 0 °c | ||
| working pressure min. | 0 bar | ||
| flow qn | 750 l/min | ||
| Gehäusematerial | brass |
| Medium | compressed air | ||
| compressed air connection type 1 | external thread | ||
| compressed air connection type 2 | external thread | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| Gewicht | 0.09 kg | ||
| seal material | acrylonitrile butadiene rubber |
