| activation | pneumatically | ||

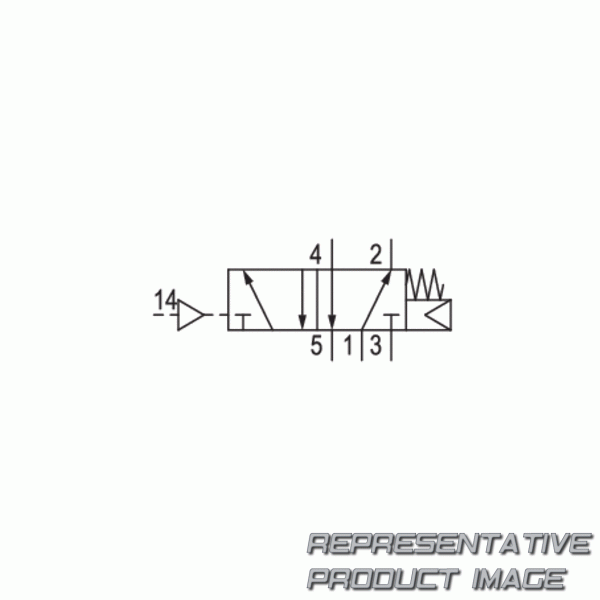

| switching principle | 5/2 | ||
| actuating control | single solenoid | ||
| Anschlussart | pipe connection | ||
| working pressure max | 10 bar | ||
| valve type | spool valve, positive overlapping | ||
| control pressure max. | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||
| max. particle size | 5 µm | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| mounting screw | m3 | ||
| Gehäusematerial | aluminum |
| nominal flow qn | 500 l/min | ||
| return type | with spring/air spring return | ||
| compressed air connection output | g 1/8 | ||
| working pressure min. | 2 bar | ||
| Dichtprinzip | soft seal | ||
| pilot | external | ||
| min. ambient temperature | 0 °c | ||
| min. medium temperature | 0 °c | ||
| Medium | compressed air | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| mounting on manifold strip | prs strip | ||
| Gewicht | 0.08 kg |
