| Nicht-Standardausführung | Deviations from catalogue standards, see drawing | ||
| Dichtungsmaterial | NBR, shaft seal in FKM | ||
| Ausführung | phosphatized, pinned | ||
| Baureihe | Model F (4 ... 28 cm³/rev) | ||

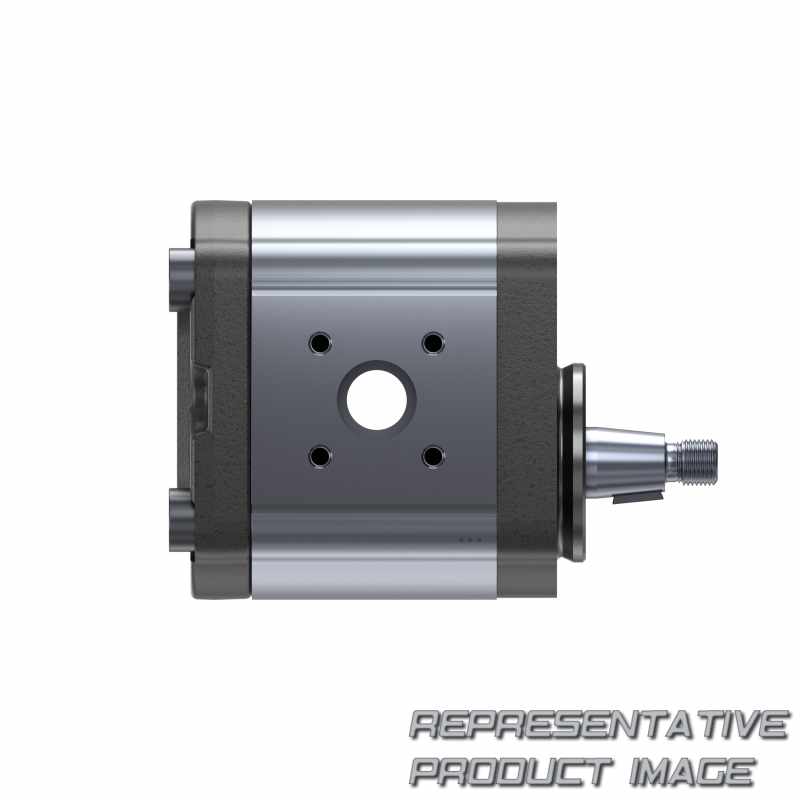

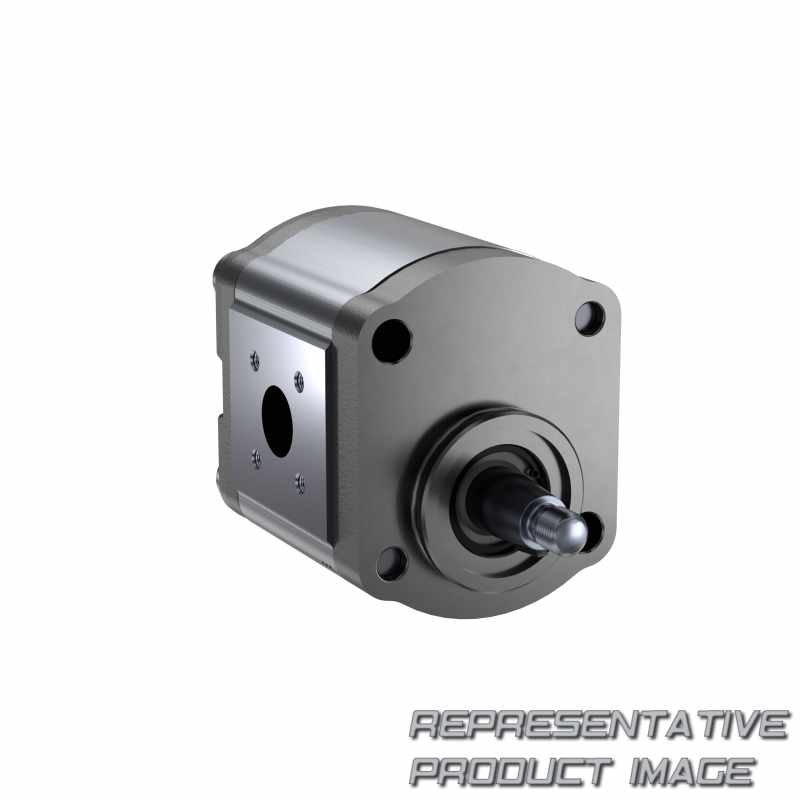

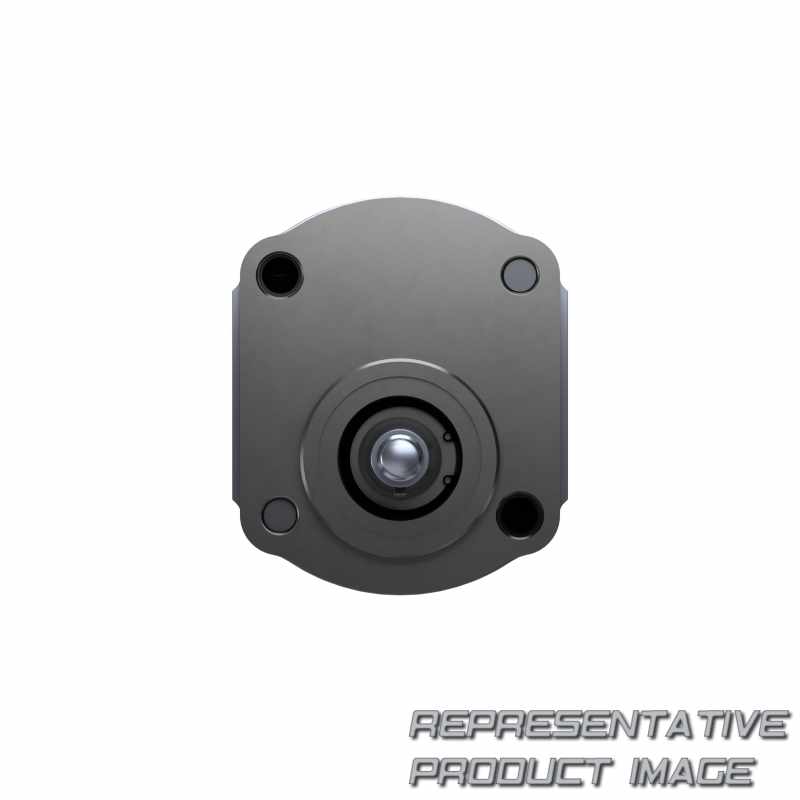

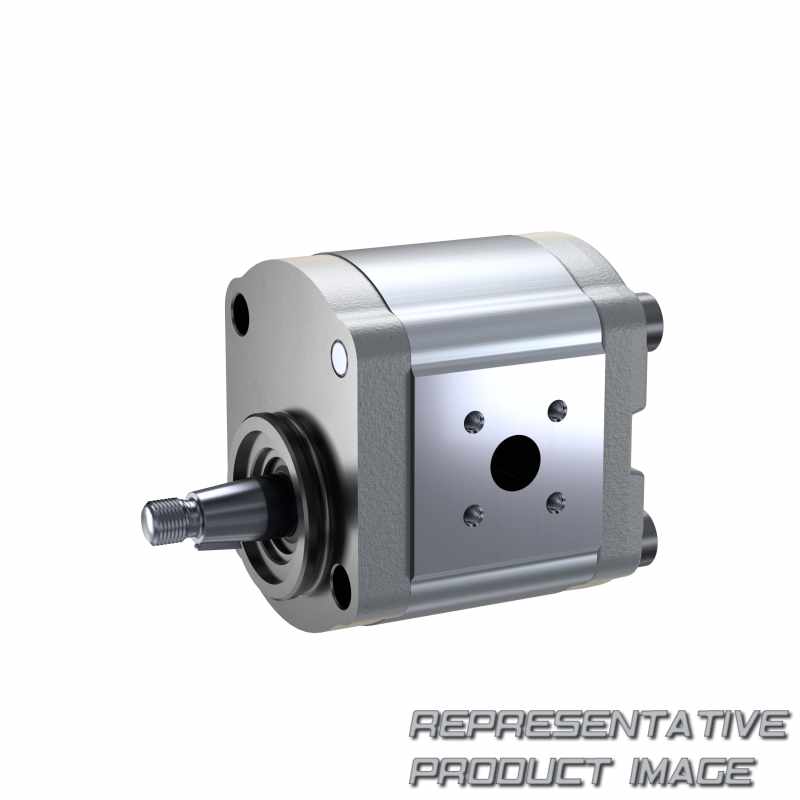

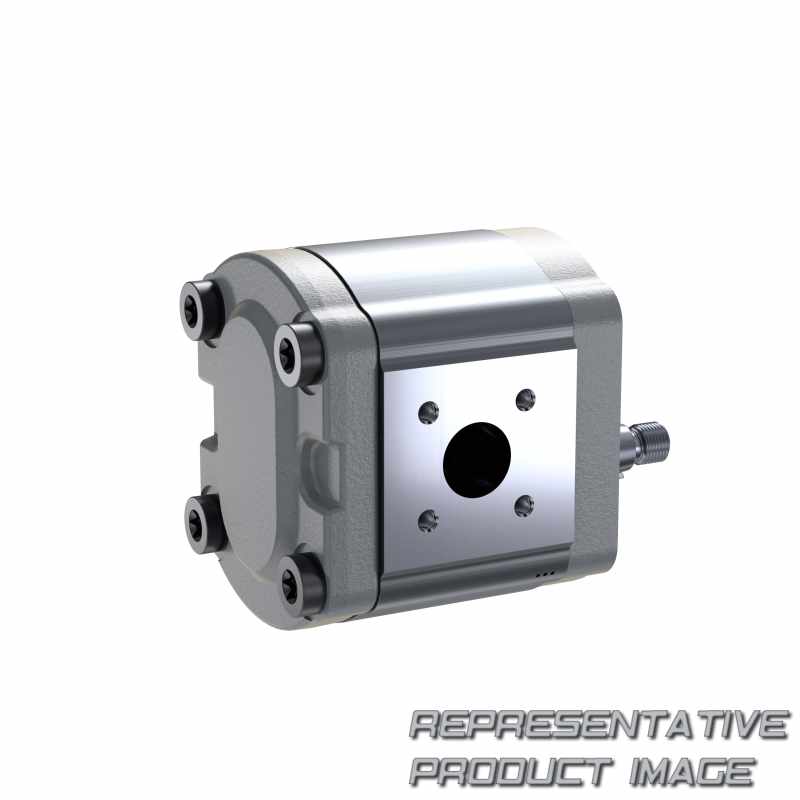

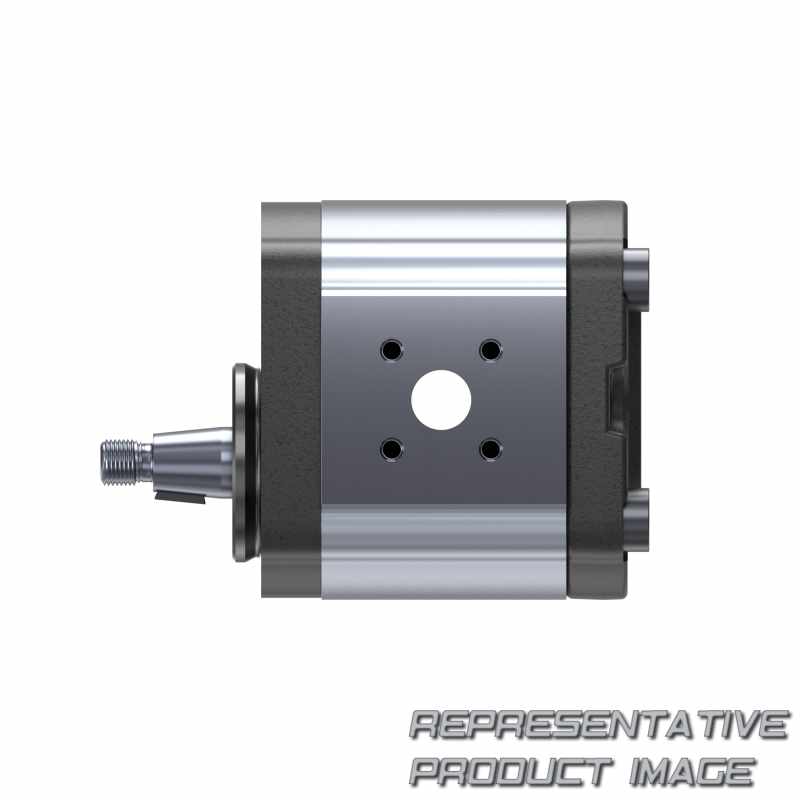

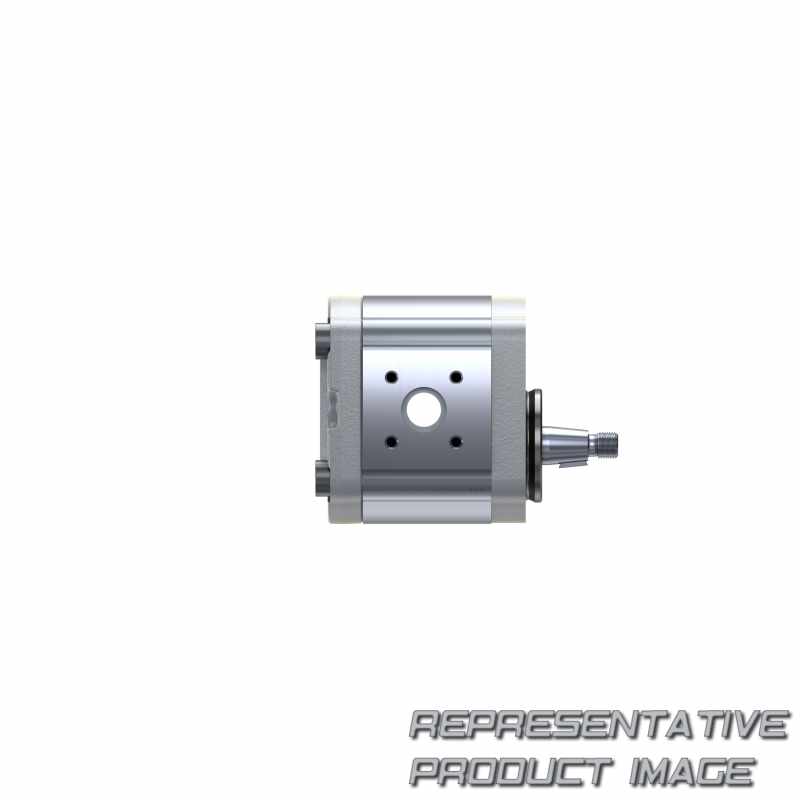

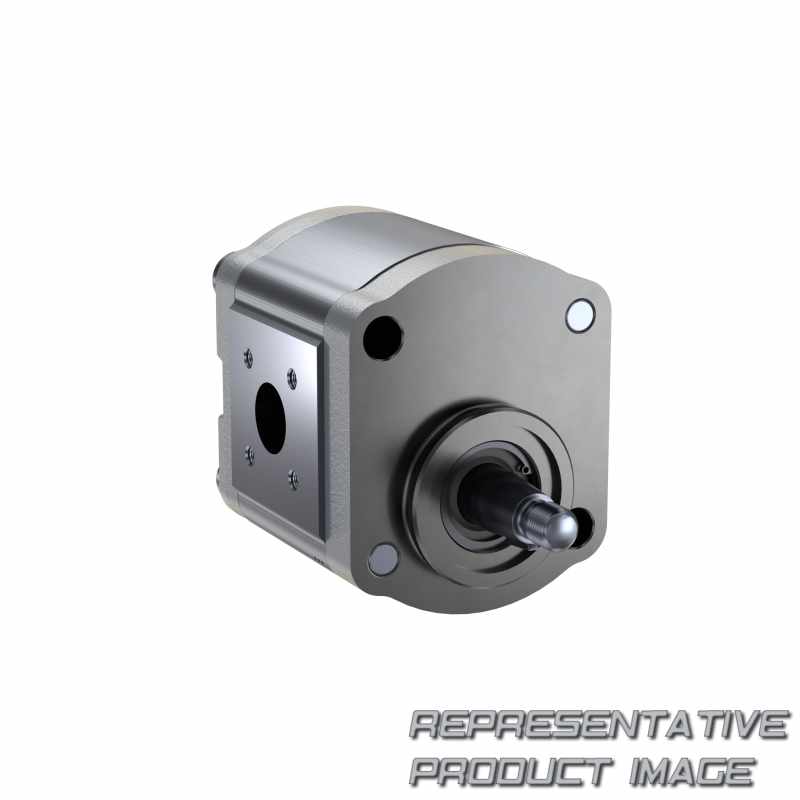

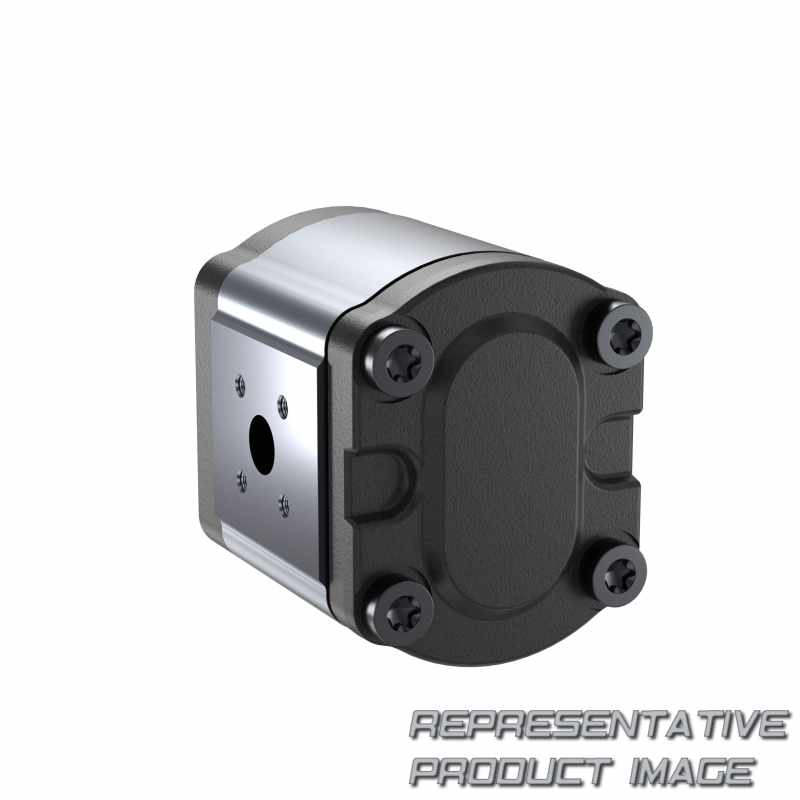

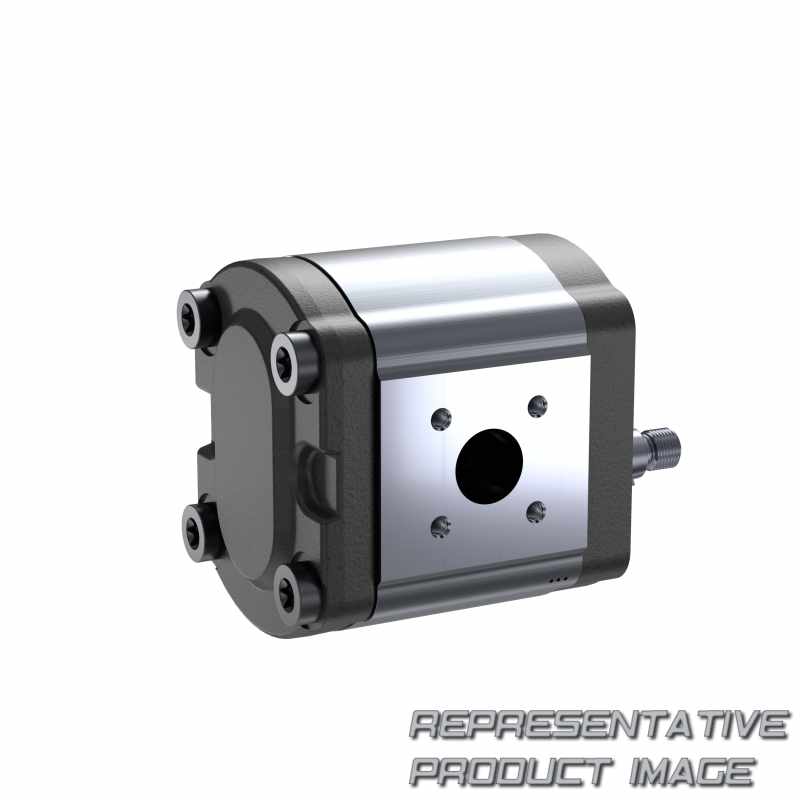

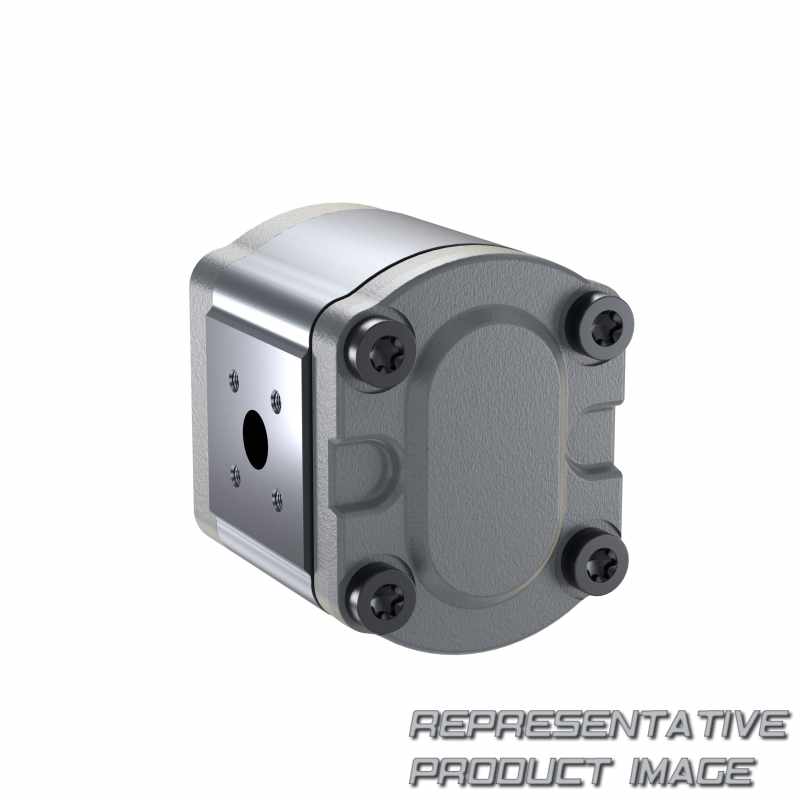

| Produkt | External Gear Unit | ||
| Anwendung | Deutz motor | ||
| Gehäusematerial | Aluminum | ||
| Drehrichtung | Counter clockwise rotation | ||
| Maximale Drehzahl | 2950 rpm | ||
| Nennweite | 16 cm³/rev |

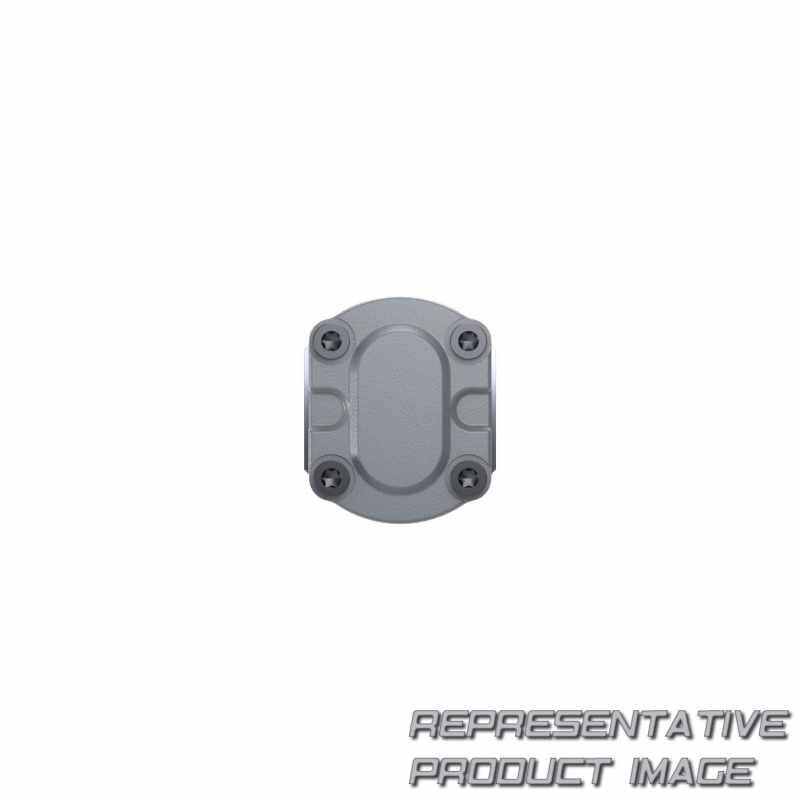

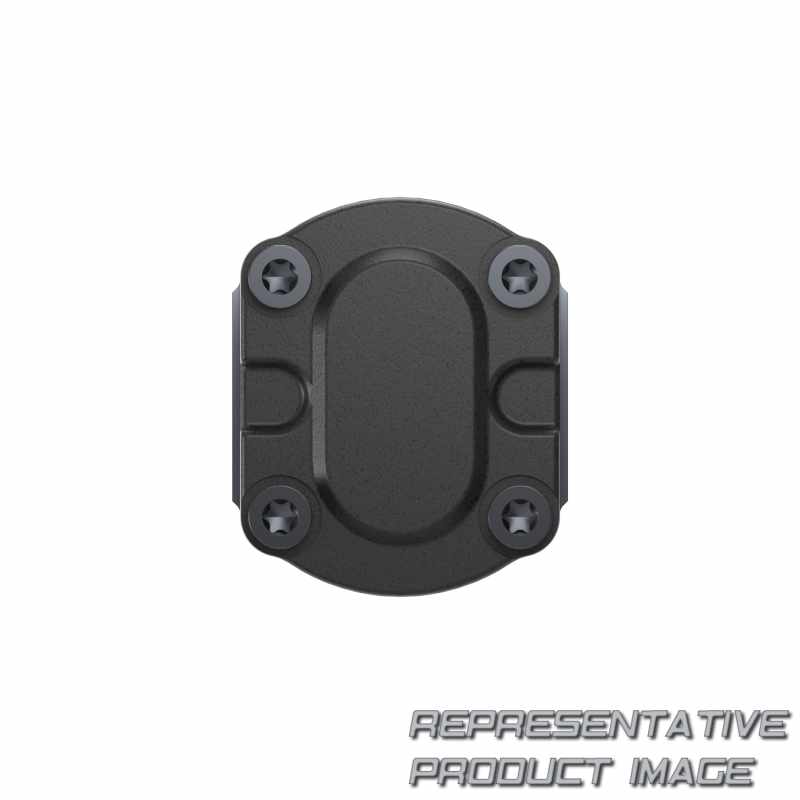

| Enddeckel | Standard (cast iron) | ||
| Leitungsanschlüsse | Square flange to fitting ISO 8434-1 | ||
| Baureihe | Bearing diameter 18mm | ||
| Funktion | Pump | ||
| Kundenteilenummer | 00816857 | ||
| Geräuschpegel | Standard noise level | ||

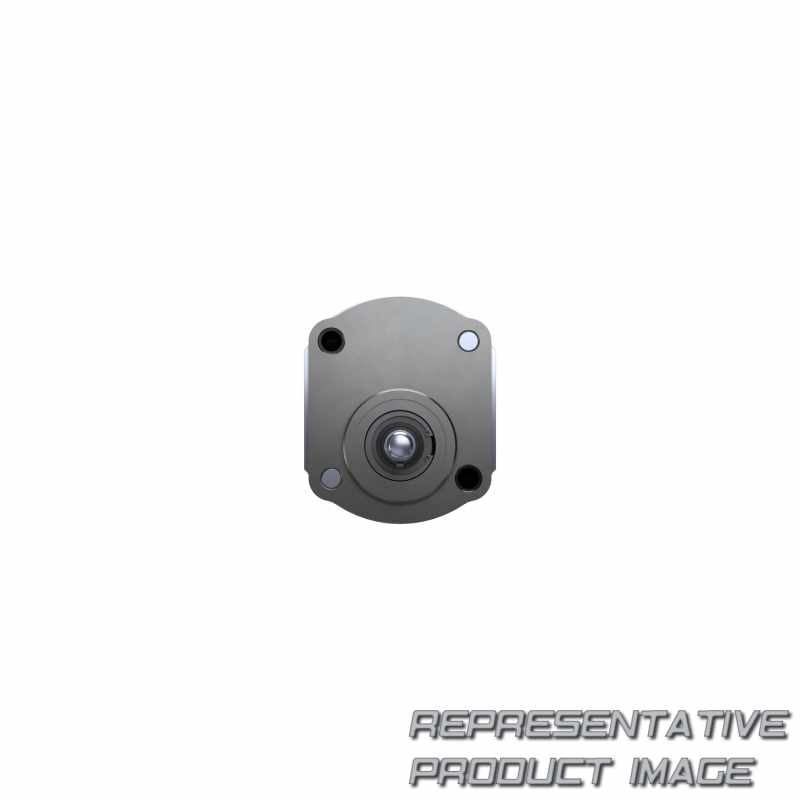

| Frontdeckel | 2-bolt mounting Dia. 50 mm (K H D) | ||

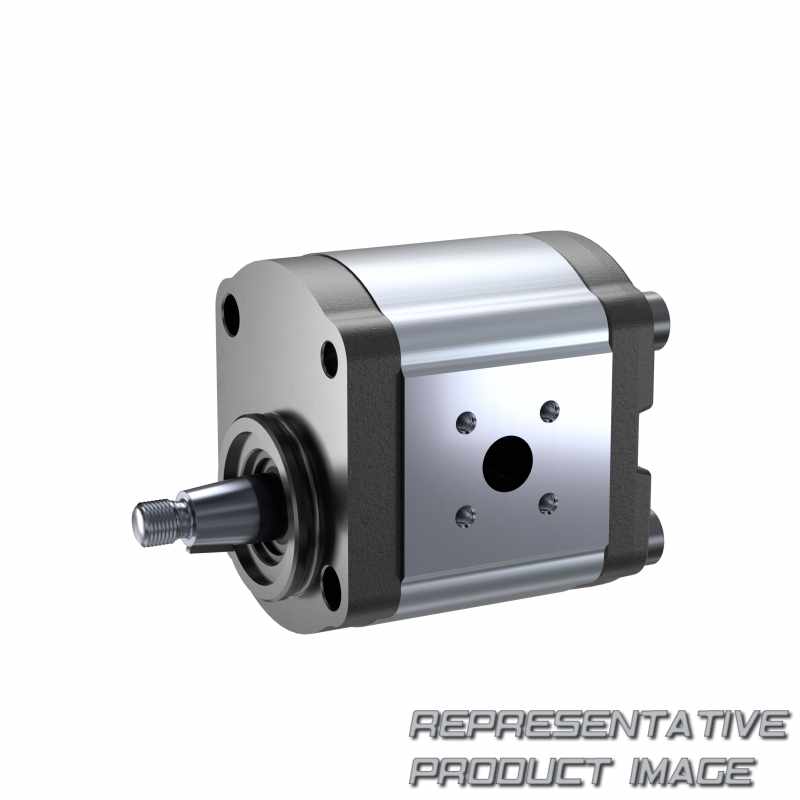

| Antriebswelle | Conical 1:5 | ||
| Intermittierender Druck max. | 280 bar |
