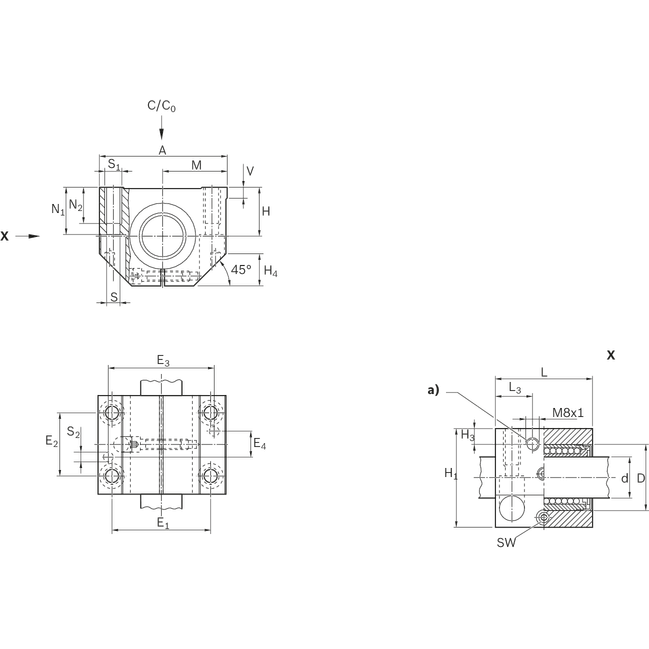

a)
Lubricating hole sealed with plastic cap
| D | 32 | mm | |
| E1 | 45 mm ±0.15 | ||
| E3 | 50 | mm | |
| H | 25 | mm | |
| H1 | 50 | mm | |
| H4 | 16 | mm | |
| l3 | 16 | ||
| N1 | 24 | mm | |
| S | 6.60 | ||
| S2 | 5 | ||
| V | 5 | mm |
| A | 60 | mm | |
| E2 | 32 mm ±0.15 | ||
| E4 | 15 | mm | |
| Tolerance for H (Clamped (fastened) in relation to Ø d.) | + 8 - 16 |
||
| H3 | 10 | mm | |
| L | 46 | mm | |
| m | 30 mm ±0.01 | ||
| N2 | 18 | mm | |
| S1 | M8 | ||
| SW | 4 |
| amax | 150 | m/s² | |
| m | 0.31 | kg | |
| Breakaway force | 5 | N | |
| Operating conditions | Operating conditions |
| vmax | 5 | m/s | |
| FR (Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. ) | 2.50 | N | |
| Shaft radial clearance h6 (Clamped (fastened).) | + 43 + 11 |
||
| Permissible ambient temperature (min ... max) | -20 °C ... +80 °C |
