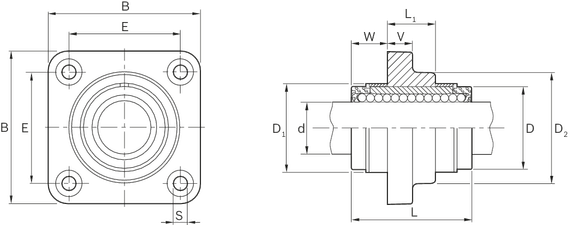

| D | 32 | mm | |
| D1 | 35 mm +0.8 | ||
| e | 42 mm ±0.15 | ||
| L1 | 18 | mm | |
| S | 6.60 | ||
| W | 13.50 | mm |
| B (Tolerance ISO 8062-3 - DCTG 9.) | 60 | ||
| D2 (Tolerance ISO 8062-3 - DCTG 9.) | 42 | mm | |
| L | 45 | mm | |
| L1 | 18 mm | ||
| V (Tolerance ISO 8062-3 - DCTG 9.) | 10 | mm |
| amax | 150 | m/s² | |
| m | 0.30 | kg | |
| Breakaway force | 3 | N | |
| Operating conditions | Operating conditions |
| vmax (Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure. ) | 3 | m/s | |
| FR (Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. ) | 1.50 | N | |
| Shaft radial clearance h6 | + 43 + 11 |
||
| Permissible ambient temperature (min ... max) | -10 °C ... +80 °C |
