REXROTH R108765020 linear-set

Name: R108765020 REXROTH
Brand: REXROTH
SKU: 288273-en-eur
Price: 804.61 EUR
Availability: InStock

LSATO-A-50-DD

804.61 € (vat. excl.) ~~856.29 €~~ -6%

2 pcs. with 1 to 3 days delivery to France

Specifications

Type (LSATO)	Linear sets Open, R1087
Series (A)	Super a (with misalignment compensation)

Shaft diameter (50)	50 Shaft diameter
Seals (DD)	With two seals

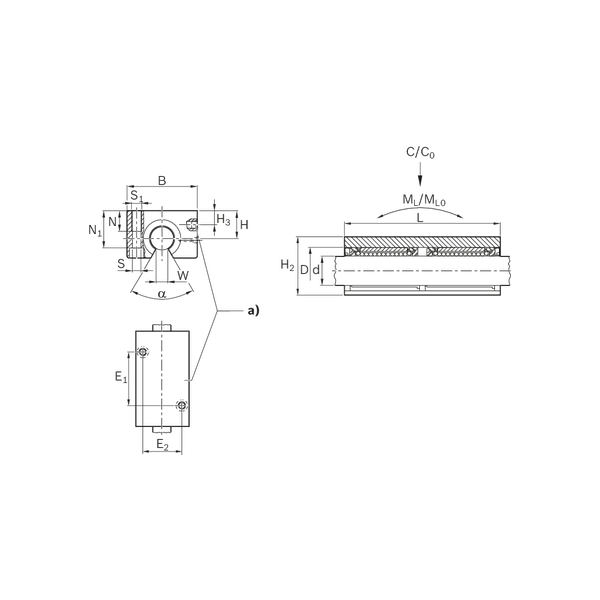

^a) Lubricating hole M8 x 1 sealed with plastic cap

S (Fixing screws DIN 6912-8.8.)	13.50
W (Minimum size in relation to Ø d.)	22.50	mm
A	54	mm
E₁	125 mm ±0.2
H	50	mm
H₂	88	mm
L	224	mm
N₁	77	mm

S₁	M16
D	75	mm
B	130
E₂	100 mm ±0.2
Tolerance for H (Clamped (fastened) in relation to Ø d.)	+ 8 - 16
H₃	10	mm
N	34	mm

v_max (Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10⁵ m to 100 • 10⁵ m without failure. )	3	m/s
F_R (Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. )	4	N
Shaft radial clearance h6 (Clamped (fastened).)	+ 35 - 3
Permissible ambient temperature (min ... max)	-10 °C ... +80 °C
