REXROTH R103584020 linear-set

Name: R103584020 REXROTH
Brand: REXROTH
SKU: 288178-en-eur
Price: 113.62 EUR
Availability: InStock

LSA-B-40-DD

113.62 € ~~202.12 €~~ -43%

15 pcs. with 1 to 3 days delivery to United States

Specifications

Type (LSA)	Linear sets Closed, R1035
Series (B)	Super b (no misalignment compensation)

Shaft diameter (40)	40 Shaft diameter
Seals (DD)	With two seals

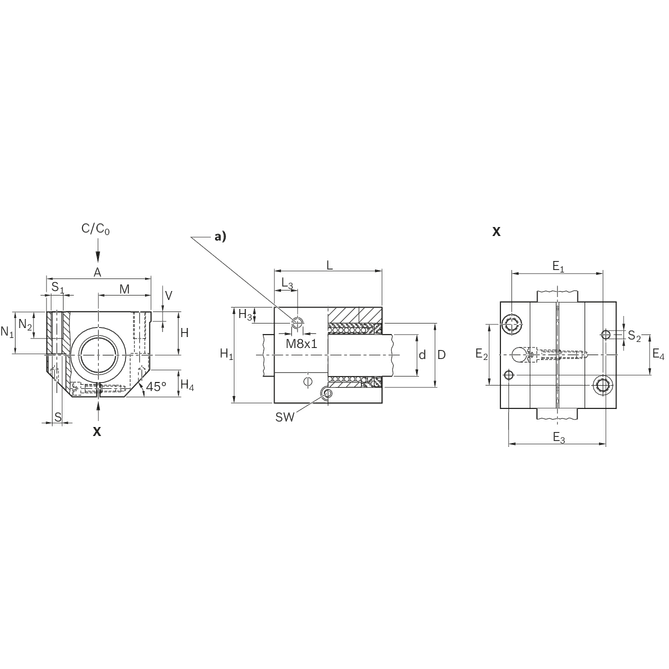

^a) Lubricating hole sealed with plastic cap

A	108	mm
E₂	58 mm ±0.15
E₄	35	mm
Tolerance for H (Clamped (fastened) in relation to Ø d.)	+ 8 - 16
H₃	14	mm
L	91	mm
m (Clamped (fastened) in relation to Ø d.)	54 mm ±0.01
N₂	26	mm
S₁	M12
SW	6

v_max (Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10⁵ m to 100 • 10⁵ m without failure. )	3	m/s
F_R (Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. )	3	N
Shaft radial clearance h6	+ 50 + 12
Permissible ambient temperature (min ... max)	-10 °C ... +80 °C
