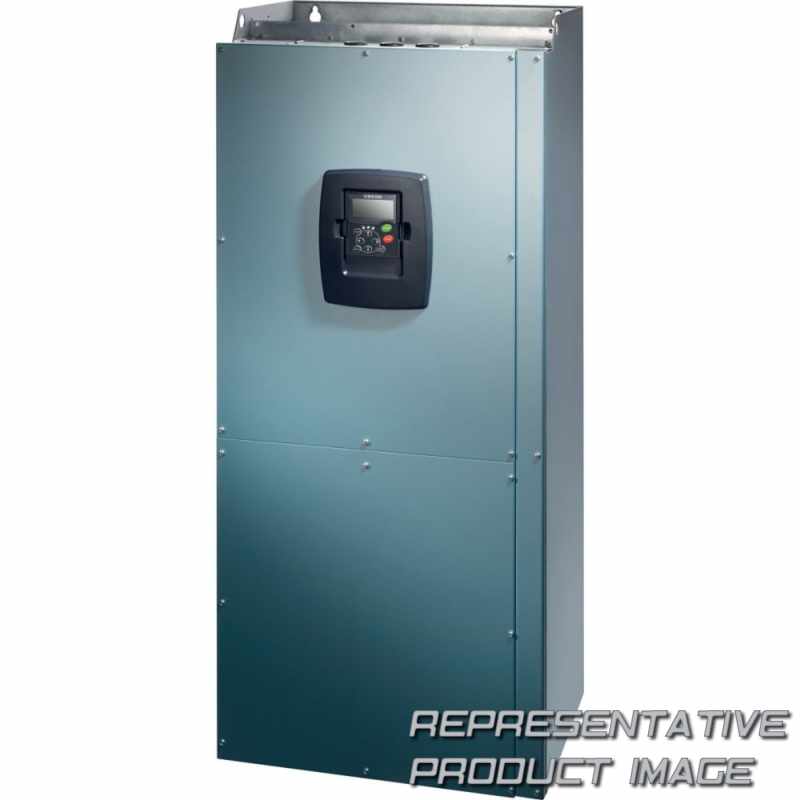

125670 Eaton

EATON 125670

Name: 125670 EATON
Brand: EATON
SKU: 801804-en-eur
Price: 226.82 EUR
Availability: InStock

DT8P1-06-5-11-IN13

226.82 € (vat. excl.)

4 pcs. with 1 to 3 days delivery to France

Specifications

Mounting Position	vertical
Width	480 mm

Weight	146Kg

Technical data

product		dt8p1 : please refer to product catalog/contact csr for more details
application in domestic and commercial area permitted		no
10.2.7 inscriptions		meets the product standard's requirements.
supply frequency		50/60 hz
frame size		fr9
assigned motor current im at 400 v, 50 hz, 110% overload		279 a
10.10 temperature rise		the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
rated frequency - max		66 hz
Degree of protection		ip21 nema other
rated operational current (ie) at 150% overload		245 a
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
rated frequency - min		45 hz
suitable for		branch circuits, (ul/csa)
rated control voltage (uc)		24 v dc (external, max. 250 ma)
equipment heat dissipation, current-dependent pvid		3300 w
radio interference class		c2, c3: depending on the motor cable length, the connected load, and ambient conditions. external radio interference suppression filters (optional) may be necessary.
product category		variable frequency drives
heat dissipation per pole, current-dependent pvid		0 w
10.3 degree of protection of assemblies		does not apply, since the entire switchgear needs to be evaluated.
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
Mounting position		vertical
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
number of inputs (digital)		6 (parameterizable, max. 30 v dc)
voltage rating - max		480 vac
heat dissipation details		operation (with 150 % overload)
connection to smartwire-dt		no
switching frequency		3.6 khz, 1 - 10 khz adjustable, fpwm, power section, main circuit
output frequency - max		320 hz
communication interface		canopen®, optional lonworks, optional profibus-dp devicenet, optional modbus-tcp, optional bacnet/ip, optional bacnet ms/tp, optional ethercat, optional ethernet ip, optional modbus-rtu, optional profinet, optional
number of relay outputs		2 (parameterizable, n/o, 8 a (24 v dc) / 8 a (250 v ac) / 0,4 a (125 v dc))
protection		finger and back-of-hand proof, protection against direct contact (bgv a3, vbg4)
10.8 connections for external conductors		is the panel builder's responsibility.
rated operational power at 380/400 v, 50 hz		132 kw
fitted with:		radio interference suppression filter oled display dc link choke igbt inverter internal dc link
ambient storage temperature - min		-40 °c
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
10.4 clearances and creepage distances		meets the product standard's requirements.
assigned motor current im at 440/480 v, 60 hz, 110% overload		302 a
10.11 short-circuit rating		is the panel builder's responsibility. the specifications for the switchgear must be observed.
mains voltage - max		500 v
certifications		ul category control no.: nmms, nmms2, nmms7. nmms8 cul csa class no.: 3211-06 iec/en 61800-3 ul file no.: e134360 ul report applies to both us and canada specification for general requirements: iec/en 61800-2 dnv csa-c22.2 no. 14 safety: en 61800-5-1: 2003 ce rcm iec/en61800-3 iec/en61800-5 ul 508c certified by ul for use in canada ul rohs, iso 9001
product width		480 mm
product length/depth		1150 mm

industrial valves		dt8p1-06-5-11-in13
altitude		max. 1000 m above 1000 m with 1 % performance reduction per 100 m max. 3000 m
10.2.4 resistance to ultra-violet (uv) radiation		meets the product standard's requirements.
10.2.2 corrosion resistance		meets the product standard's requirements.
converter type		other
assigned motor current im at 400 v, 50 hz, 150% overload		231 a
ambient operating temperature at 150% overload - min		-10 °c
ambient storage temperature - max		70 °c
rated operational current (ie) at 110% overload		300 a
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
number of outputs (digital)		1 (parameterizable, 48 v dc/50 ma)
operating mode		optional: vector control with feedback (clv) sensorless vector control (slv) u/f control
number of outputs (analog)		1
heat dissipation capacity pdiss		0 w
assigned motor power at 460/480 v, 60 hz, 110% overload		250 hp
assigned motor power at 460/480 v, 60 hz		200 hp
resolution		0.01 hz (frequency resolution, setpoint value)
electromagnetic compatibility		1st and 2nd environments (according to en 61800-3)
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
rated control supply voltage		10 v dc (us, max. 10 ma)
ambient operating temperature - min		-10 °c
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
static heat dissipation, non-current-dependent pvs		0 w
rated operational power at 380/400 v, 50 hz, 110% overload		160 kw
output voltage (u2)		500 v ac, 3-phase 400 v ac, 3-phase 480 v ac, 3-phase
climatic proofing		< 95 % relative humidity, no condensation, no corrosion, no dripping water
application in industrial area permitted		no
ambient operating temperature - max		50 °c
ambient operating temperature at 150% overload - max		50 °c
system configuration type		ac supply systems with earthed center point
output frequency - min		0 hz
mains voltage - min		380 v
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
10.12 electromagnetic compatibility		is the panel builder's responsibility. the specifications for the switchgear must be observed.
rated operational voltage		480 v ac, 3-phase 400 v ac, 3-phase 500 v ac, 3-phase
number of inputs (analog)		2 (parameterizable, 0 - 10 v dc, 0/4 - 20 ma)
rated operational current for specified heat dissipation (in)		245 a
assigned motor current im at 440 - 480 v, 60 hz, 150% overload		240 a
Product weight		146 kg
product height		362 mm
ean		4015081232802
