125667 Eaton

EATON 125667

Name: 125667 EATON
Brand: EATON
SKU: 801825-en-eur
Price: 325.8 EUR
Availability: InStock

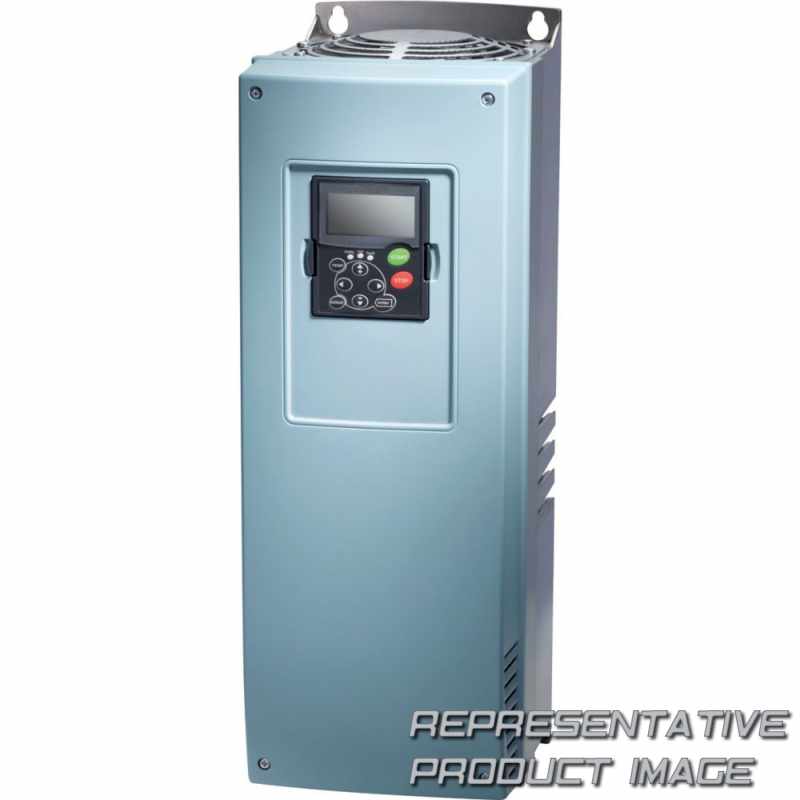

DT8P1-10-5-11-IN13

325.80 € (vat. excl.)

1 pcs. with 1 to 3 days delivery to France

Specifications

Mounting Position	vertical
Width	195 mm

Weight	500g

Technical data

product		dt8p1 : please refer to product catalog/contact csr for more details
application in domestic and commercial area permitted		no
10.2.7 inscriptions		meets the product standard's requirements.
supply frequency		50/60 hz
frame size		fr6
assigned motor current im at 400 v, 50 hz, 110% overload		55 a
10.10 temperature rise		the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
rated frequency - max		66 hz
Degree of protection		ip21 nema other
rated operational current (ie) at 150% overload		46 a
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
rated frequency - min		45 hz
suitable for		branch circuits, (ul/csa)
rated control voltage (uc)		24 v dc (external, max. 250 ma)
equipment heat dissipation, current-dependent pvid		550 w
radio interference class		c2, c3: depending on the motor cable length, the connected load, and ambient conditions. external radio interference suppression filters (optional) may be necessary.
product category		variable frequency drives
heat dissipation per pole, current-dependent pvid		0 w
10.3 degree of protection of assemblies		does not apply, since the entire switchgear needs to be evaluated.
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
Mounting position		vertical
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
number of inputs (digital)		6 (parameterizable, max. 30 v dc)
voltage rating - max		480 vac
heat dissipation details		operation (with 150 % overload)
connection to smartwire-dt		no
switching frequency		10 khz, 1 - 16 khz adjustable, fpwm, power section, main circuit
output frequency - max		320 hz
communication interface		canopen®, optional lonworks, optional modbus-tcp, optional profibus-dp devicenet, optional bacnet/ip, optional bacnet ms/tp, optional ethercat, optional ethernet ip, optional modbus-rtu, optional profinet, optional
number of relay outputs		2 (parameterizable, n/o, 8 a (24 v dc) / 8 a (250 v ac) / 0,4 a (125 v dc))
protection		finger and back-of-hand proof, protection against direct contact (bgv a3, vbg4)
10.8 connections for external conductors		is the panel builder's responsibility.
rated operational power at 380/400 v, 50 hz		22 kw
fitted with:		oled display dc link choke internal dc link radio interference suppression filter brake chopper igbt inverter
ambient storage temperature - min		-40 °c
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
10.4 clearances and creepage distances		meets the product standard's requirements.
assigned motor current im at 440/480 v, 60 hz, 110% overload		52 a
10.11 short-circuit rating		is the panel builder's responsibility. the specifications for the switchgear must be observed.
mains voltage - max		500 v
certifications		ce certified by ul for use in canada iec/en 61800-3 rohs, iso 9001 ul file no.: e134360 cul ul category control no.: nmms, nmms2, nmms7. nmms8 safety: en 61800-5-1: 2003 specification for general requirements: iec/en 61800-2 dnv iec/en61800-3 iec/en61800-5 ul report applies to both us and canada csa class no.: 3211-06 csa-c22.2 no. 14 rcm ul ul 508c
product width		195 mm
product length/depth		558 mm

industrial valves		dt8p1-10-5-11-in13
altitude		max. 1000 m max. 3000 m above 1000 m with 1 % performance reduction per 100 m
10.2.4 resistance to ultra-violet (uv) radiation		meets the product standard's requirements.
10.2.2 corrosion resistance		meets the product standard's requirements.
converter type		other
assigned motor current im at 400 v, 50 hz, 150% overload		41 a
ambient operating temperature at 150% overload - min		-10 °c
ambient storage temperature - max		70 °c
rated operational current (ie) at 110% overload		61 a
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
number of outputs (digital)		1 (parameterizable, 48 v dc/50 ma)
operating mode		u/f control optional: vector control with feedback (clv) sensorless vector control (slv)
number of outputs (analog)		1
heat dissipation capacity pdiss		0 w
assigned motor power at 460/480 v, 60 hz, 110% overload		40 hp
assigned motor power at 460/480 v, 60 hz		30 hp
resolution		0.01 hz (frequency resolution, setpoint value)
electromagnetic compatibility		1st and 2nd environments (according to en 61800-3)
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
rated control supply voltage		10 v dc (us, max. 10 ma)
ambient operating temperature - min		-10 °c
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
static heat dissipation, non-current-dependent pvs		0 w
rated operational power at 380/400 v, 50 hz, 110% overload		30 kw
output voltage (u2)		400 v ac, 3-phase 480 v ac, 3-phase 500 v ac, 3-phase
climatic proofing		< 95 % relative humidity, no condensation, no corrosion, no dripping water
application in industrial area permitted		no
ambient operating temperature - max		50 °c
ambient operating temperature at 150% overload - max		50 °c
system configuration type		ac supply systems with earthed center point
output frequency - min		0 hz
mains voltage - min		380 v
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
10.12 electromagnetic compatibility		is the panel builder's responsibility. the specifications for the switchgear must be observed.
rated operational voltage		480 v ac, 3-phase 500 v ac, 3-phase 400 v ac, 3-phase
number of inputs (analog)		2 (parameterizable, 0 - 10 v dc, 0/4 - 20 ma)
rated operational current for specified heat dissipation (in)		46 a
assigned motor current im at 440 - 480 v, 60 hz, 150% overload		40 a
Product weight		18.5 kg
product height		237 mm
ean		4015081232772
