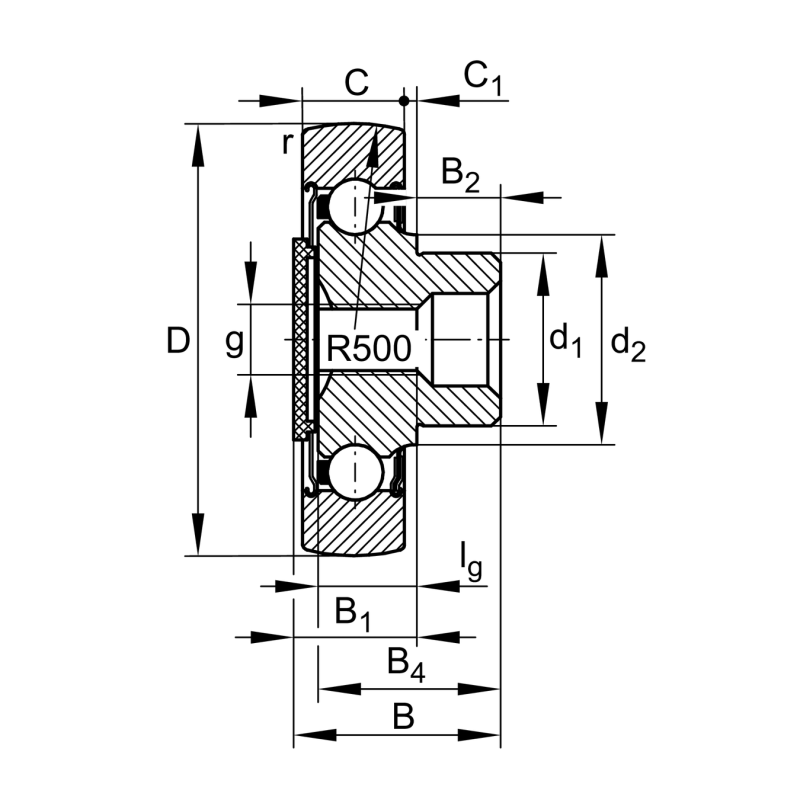

| Außen-Ø | D | 62 | mm |
| Breite | B | 33,80 | mm |
| Basic static load rating, radial | C0r | 7,200 | |
| Speed on permanent grease lubrication | nD G | 5,500 |
| Fit diameter of roller stud / stud | d1 | 25 | mm |
| Basic dynamic load rating, radial | Cr | 13,200 | |
| Fatigue load limit, radial | Cur | 365 | N |
| Maximum witdh of thrust washer | B1 | 18 | mm |
| Length total | B4 | 31 | mm |
| Protrusion outer ring to thrust washer | C1 | 2 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
| Thread length (inner) | lg | 19 | mm |
| Bolt/stud length effectively | B2 | 16 | mm |
| Width, outer ring | C | 15 | mm |
| Stop diameter of thrust washer | d2 | 30,30 | mm |
| Thread inside | g | M10 | |
| Radius of outer ring outside profile | R | 500 | mm |
