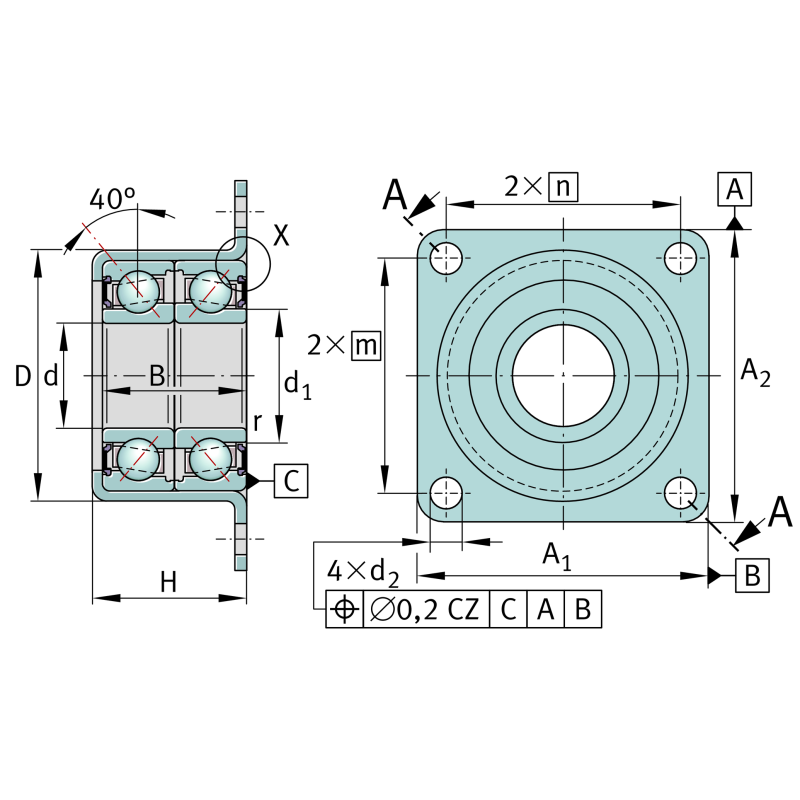

| Bore diameter | d | 12 | mm |
| Outside diameter bearing pot | D | 35,45 | mm |
| Outside diameter bearing pot lower tolerance | -0,01 | mm | |
| Inner ring width upper tolerance | 0,25 | mm | |
| Basic dynamic load rating, radial | Cr | 13,600 | |
| Basic dynamic load rating, axial | Ca | 13,200 | |
| Fatigue load limit, radial | Cur | 445 | N |
| Bore diameter lower tolerance | -0,01 | mm | |
| Outside diameter bearing pot upper tolerance | 0,03 | mm | |
| Width, inner ring | Bi | 20 | mm |
| Inner ring width lower tolerance | -0,25 | mm | |
| Basic static load rating, radial | C0r | 8,500 | |
| Basic static load rating, axial | C0a | 17,900 | |
| Bearing friction torque | MRL | 0,12 | Nm |

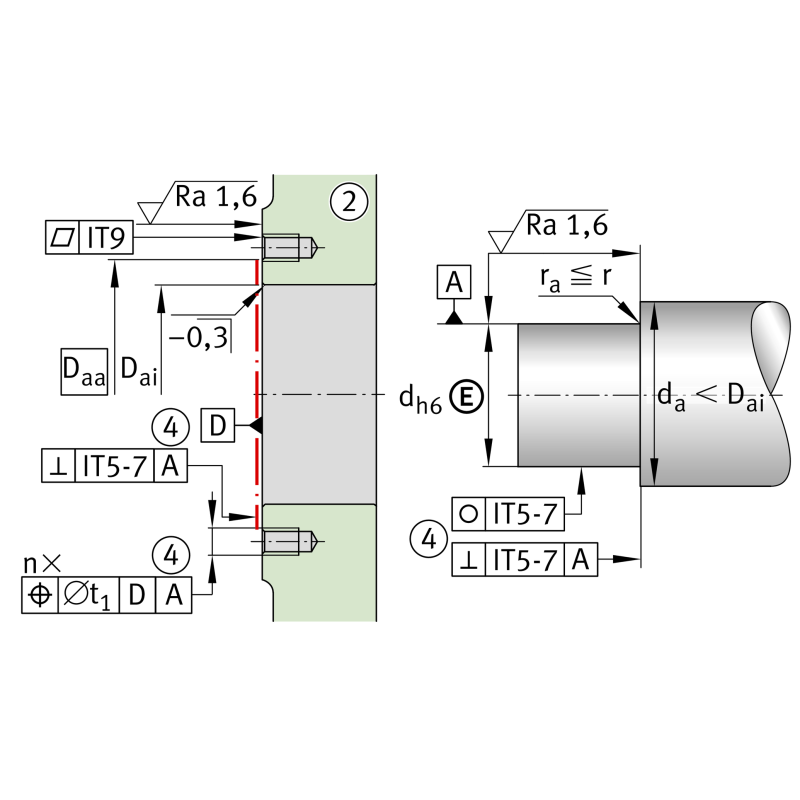

| Diameter shaft shoulder | da | 14 | mm |

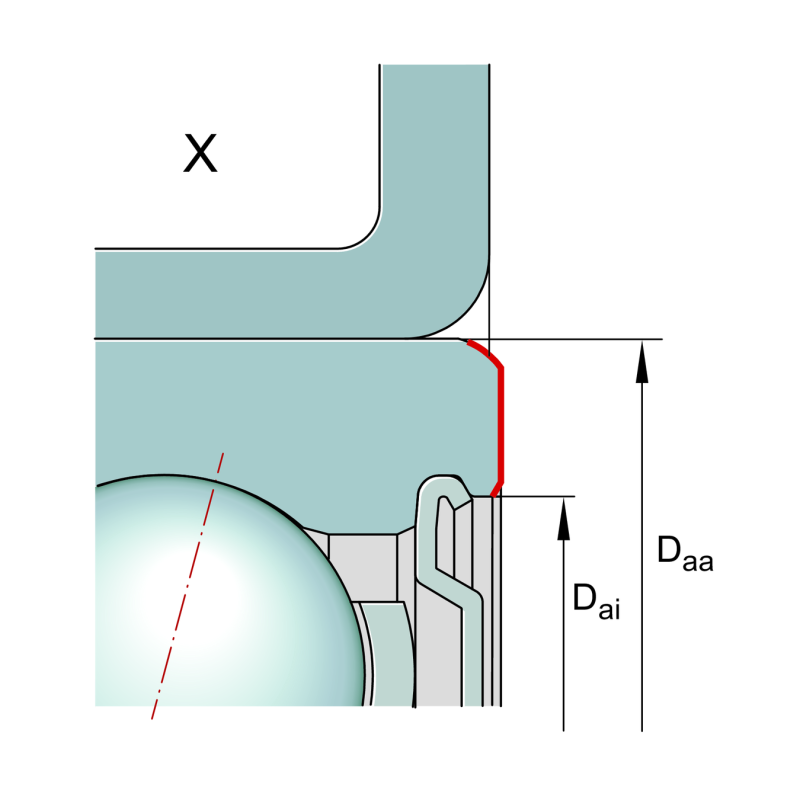

| Minimum support diameter outer ring outside | Daa min | 32 | mm |
| Number of screws | n | 4 |
| Support diameter outer ring inside | Dai | 27 | mm |
| Screw size | M6 |
| Rib diameter inner ring | d1 | 16,60 | mm |
| Fixing boring diameter | d2 | 6,60 | mm |
| Height flange | A2 | 50 | mm |
| bore distance width | n | 32 | mm |
| Minimum chamfer dimension | rmin | 0,30 | mm |
| Flange width | A | 44 | mm |
| Bore distance height | m | 38 | mm |
| Height housing | A | 22 | mm |
