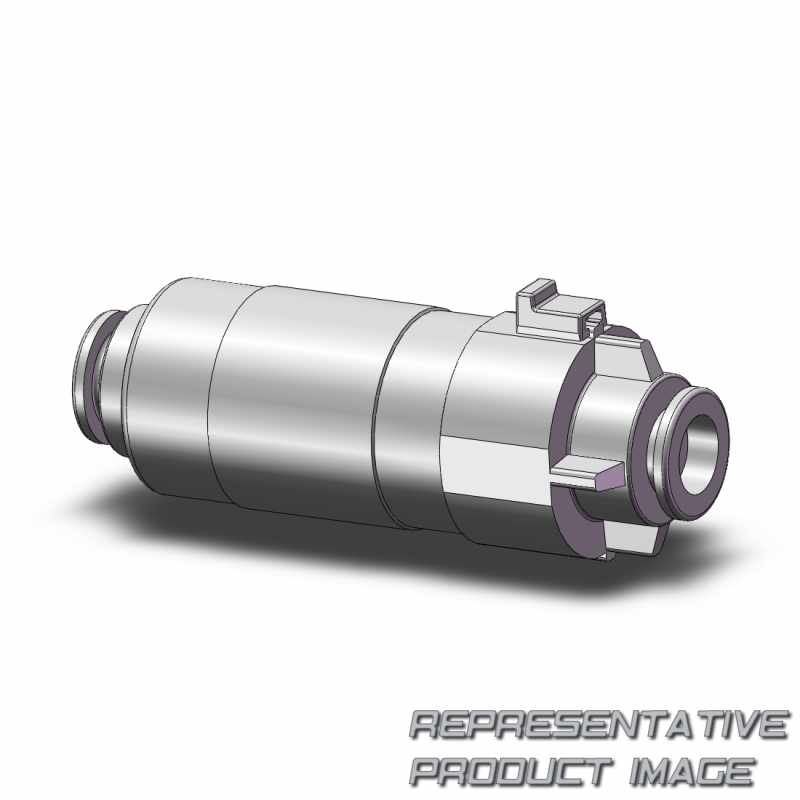

| Baureihe | zfc7 | ||
| port size(applicable tubing o.d.) - inch size | ?1/4andquot; | ||
| Betriebsdruck | 100 kpa to 1.0 mpa | ||
| flow rate l/min | 30 | ||
| operating and ambient temperature range c | 0 to 60 | ||
| element replacement differential pressure mpa | 0.1 (vacuum pressure 20 kpa) | ||
| applicable tubing material | nylon, soft nylon, polyurethane | ||
| internal capacity cm3 | 6 | ||
| total width mm | 23,60 | ||
| case material | polycarbonate |
| port size(applicable tubing o.d.) - metric size | ?6 | ||
| fluid | air, nitrogen | ||
| flow rate l/min note) | 120 | ||
| proof pressure mpa | 1,50 | ||
| filtration ?m | 5 (filtration efficiency 95%) | ||
| filtration area mm2 | 1.260 | ||
| weight g | 20 | ||
| total length mm | 68,40 | ||
| bracket total length mm | 27,30 | ||
| Gewicht | .05511 lb |
