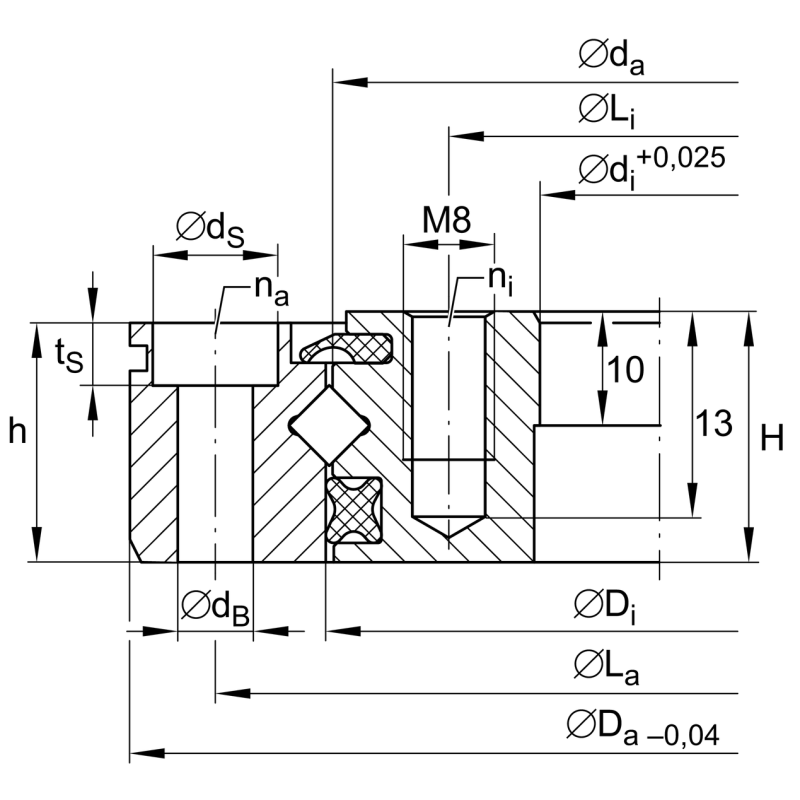

| Bore diameter | d | 57 | mm |
| Length centering inner ring | t | 10 | mm |
| Outside diameter lower tolerance | -0,04 | mm |
| Bore diameter upper tolerance | 0,03 | mm | |
| Außen-Ø | D | 140 | mm |
| Höhe | T | 26 | mm |
| height outer ring | ha | 25 | mm |
| Number of fixing holes in outer ring | na | 6 | |
| Counterbore diameter of fixing holes | dS | 15 | mm |
| Pitchcircle diameter fixing holes inner ring | Li | 70 | mm |
| Tread fixing bore | dBa | M8 | |
| Min. bearing preload | VSPmin | 0,01 | mm |
| Pitchcircle diameter fixing holes outer ring | La | 120 | mm |
| Fixing bore | dB | 9 | mm |
| Counterbore depth of fixing holes | tS | 6 | mm |
| Number of fixing holes in inner ring | ni | 6 | |
| Thread depth | tG | 13 | mm |
| Maximum bearing preload | VSPmax | 0,01 | mm |
