| product series | light | ||
| connection 1 type | 24° cone end | ||
| connection 2 type | adjustable bspp thread - o-ring + retaining ring (iso 1179) | ||
| materials of construction | steel | ||
| connection 2 tube outside diameter | 04 to 42 mm | ||
| connection 2 size | adjustable bspp thread - o-ring + retaining ring (iso 1179), adjustable metric thread - o-ring + retaining ring, adjustable metric thread - o-ring (iso 6149), adjustable un/unf thread - o-ring (iso 11926), eo 24° cone end | ||
| Maximale Betriebstemperatur | +250 steel, +400 stainless steel °c, +482 steel, +752 stainless steel °f | ||
| Minimale Betriebstemperatur | -40 (steel); -60 (stainless steel) °c, -40 steel, -76 stainless steel °f | ||
| Anschlussart | bite type, soft seal bite type |

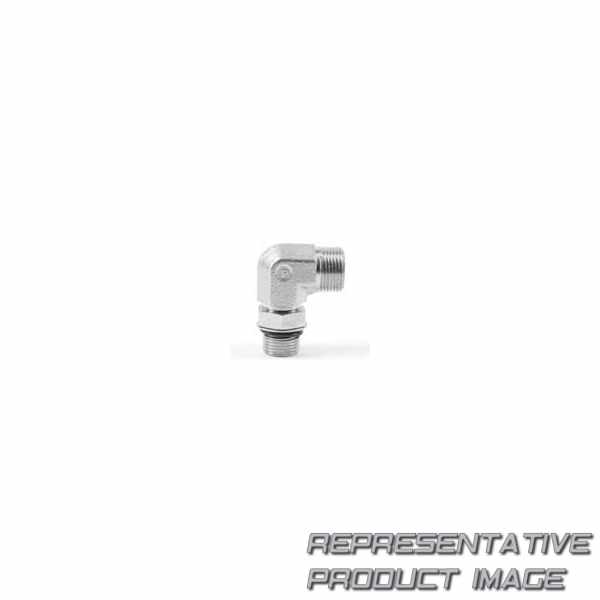

| shape | adjustable locknut elbow | ||
| connection 1 tube outside diameter | 28 mm | ||
| connection 3 size | g 1 a | ||
| connection size | g 1/8 a to g 1 1/2 a; m 10x1.0 to m48x2.0; 7/16-20 unf-2a to 1 5/8-12 un-2a | ||
| connection 1 size | eo 24° cone end | ||
| tube outside diameter | 6-42 mm | ||
| maximum operating pressure | 10-31.5 mpa, 100-315 bar, 1450-4569 psi | ||
| Anwendung | agriculture equipment, automotive process, chemical transfer, construction equipment, fuel transfer, hydraulic, manufacturing equipment, marine, material handling, mobile equipment, oilfield, packaging, transportation | ||
| specifications met | din iso 8434 |
