| metric tube fittings | ges 10 l/7/16-20unf a4gs | ||
| Material | carbon steel | ||
| pressure (bar) | 400 | ||
| Baureihe | l - light series | ||
| tube od | 10 | ||
| family | metric tube fittings | ||
| l5 | 18 | ||
| S1 | 17 | ||
| section in catalog | e | ||
| thread u | 44.028 | ||
| Typ | ges 10 l | ||
| d | 14,40 |
| end type | npt | ||
| pressure (psi) | 5.801 | ||
| primary system | walpro | ||
| shape | 45 degree | ||

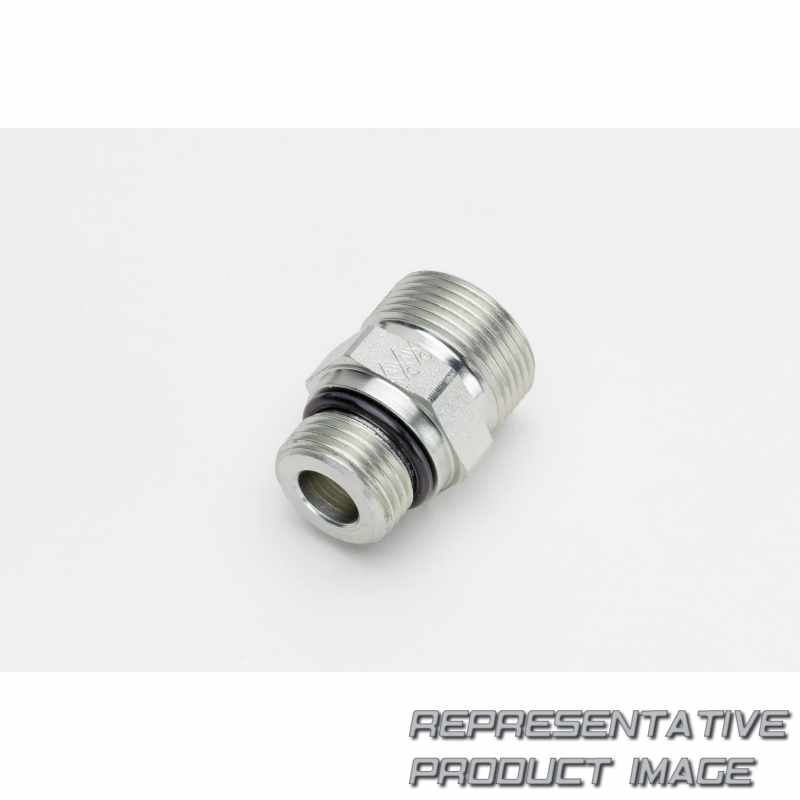

| description | male stud coupling (body only) | ||
| L2 | 26 | ||
| o-ring | 8.9x1.8 | ||
| S2 | 19 | ||
| Thread Type | ust (sae j 514) | ||
| tube o.d. | 10 | ||
| weight kg/100 pcs. | 2 | ||
| i | 9 |
