| metric tube fittings | ewsd 18 l a4gs | ||
| Material | carbon steel | ||
| pressure (bar) | 400 | ||
| Baureihe | l - light series | ||
| tube od | 18 | ||
| family | metric tube fittings | ||
| L1 | 35,50 | mm | |
| l5 | 31 | ||
| S1 | 24 | ||
| S3 | 32 | ||
| tube o.d. | 18 | ||
| weight kg/100 pcs. | 18 |
| end type | bsp (taper) | ||
| pressure (psi) | 5.801 | ||
| primary system | walpro | ||
| shape | 45 degree | ||

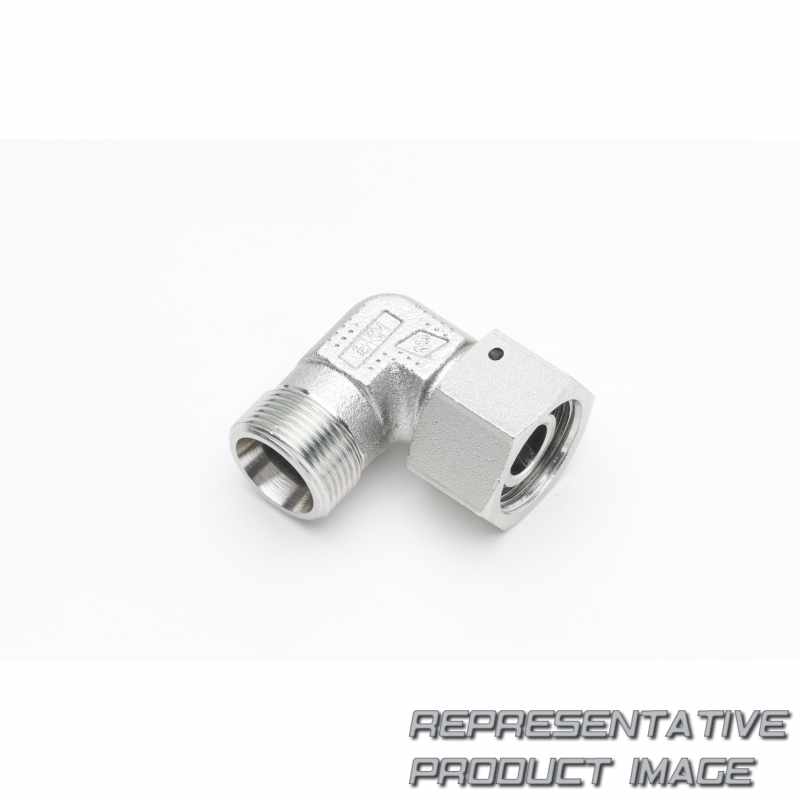

| description | adjustable male stud elbow (body only) | ||
| i | 23,50 | ||
| L2 | 40 | ||
| o-ring 1 | 15.0x2.0 | ||
| S2 | 32 | ||
| section in catalog | f | ||
| Typ | ewsd 18 l |
