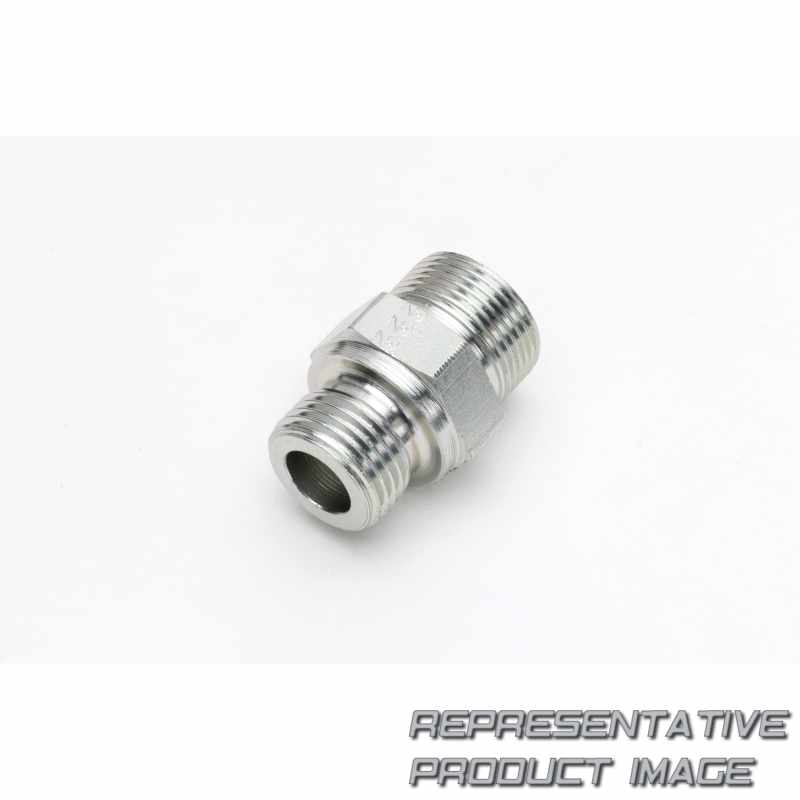

| metric tube fittings | ges 22 l/r1/2 a4gs | ||
| Material | carbon steel | ||
| pressure (bar) | 250 | ||
| Baureihe | l - light series | ||
| tube od | 22 | ||
| family | metric tube fittings | ||
| l5 | 24 | ||
| S2 | 36 | ||
| Thread G | g1/2-14 | ||
| tube o.d. | 22 | ||
| weight kg/100 pcs. | 8,70 | ||
| i | 14 |
| end type | npt | ||
| pressure (psi) | 3.626 | ||
| primary system | walpro | ||
| shape | 45 degree | ||
| description | male stud coupling (body only) | ||
| L2 | 33 | ||
| S1 | 32 | ||
| section in catalog | e | ||
| Thread Type | bsp thread (parallel), stud face form b | ||
| Typ | ges 22 l/r 1/2 | ||
| d | 26 |
