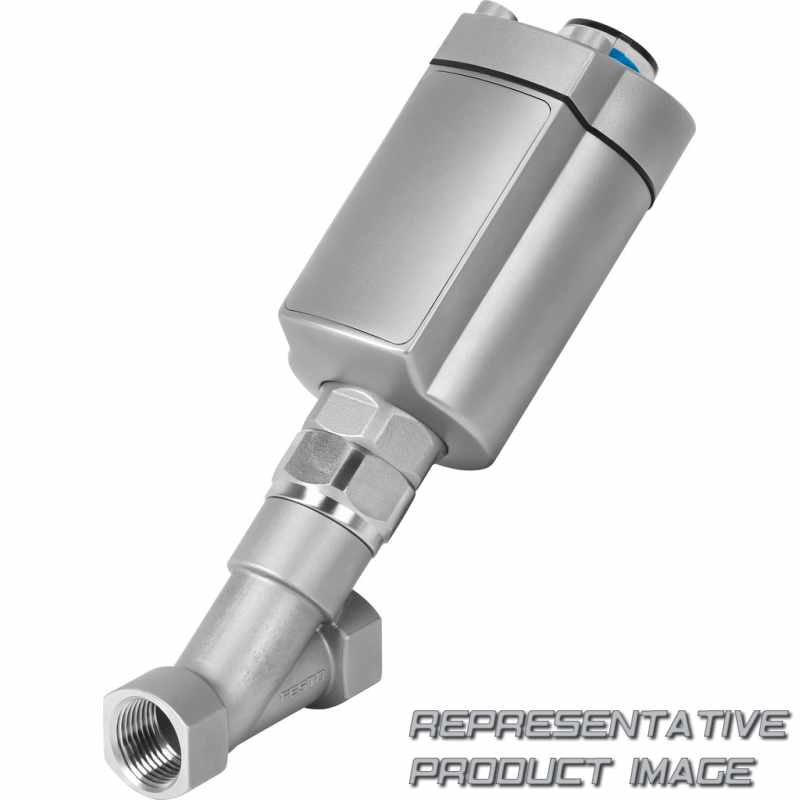

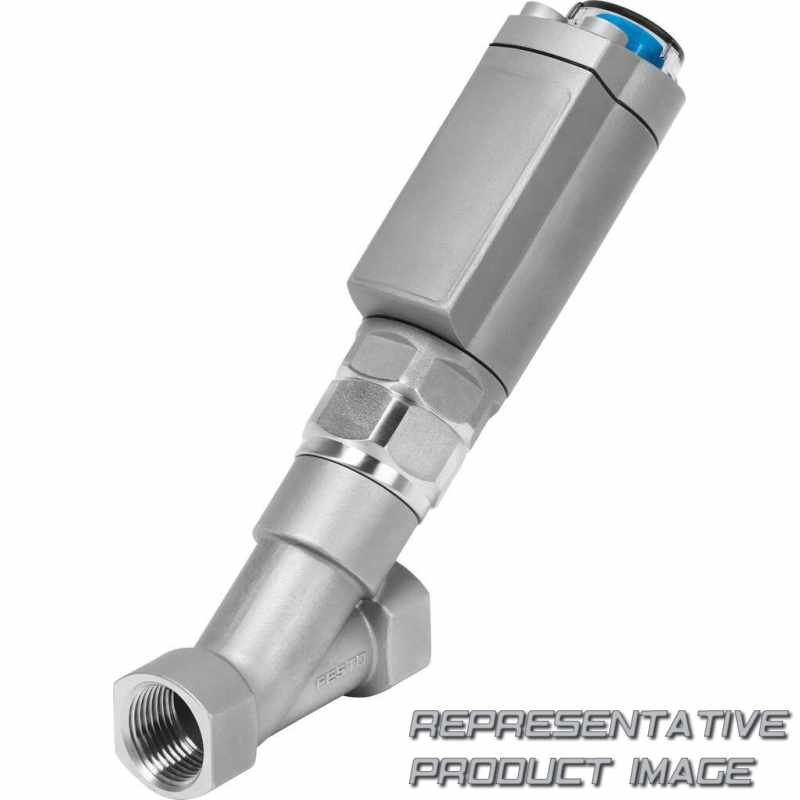

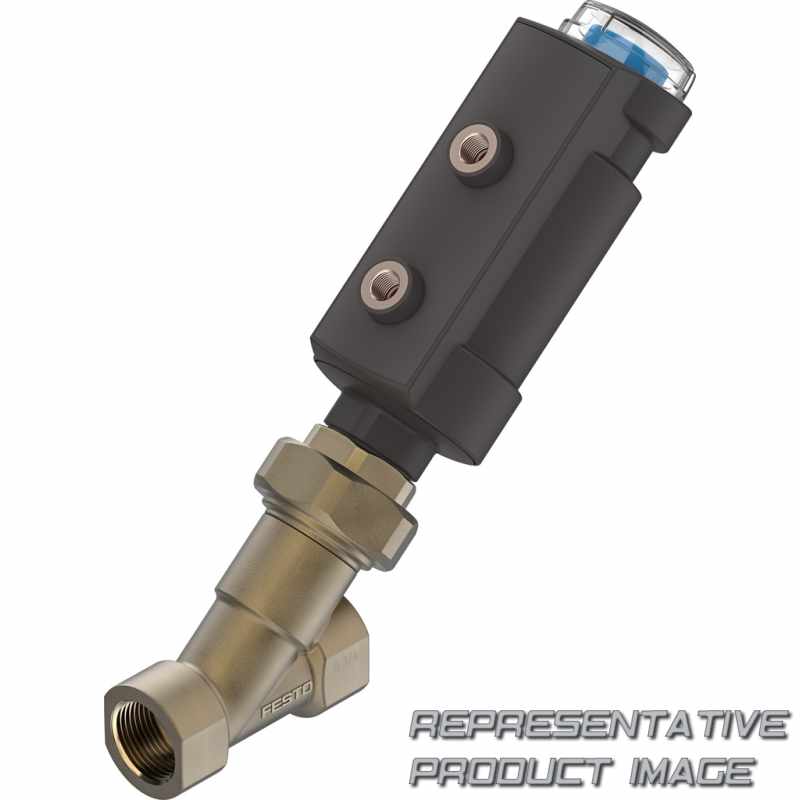

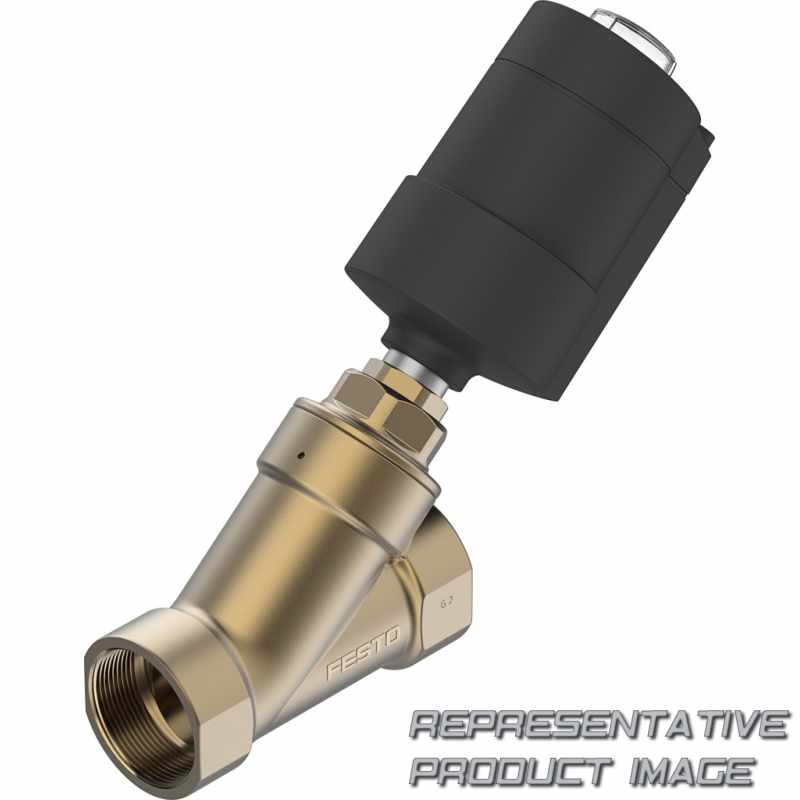

FESTO VZXA
76 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VZXA – Process valve. Finden Sie das passende Produkt durch Filtern mit Strömungsrichtung, Connection standard, Connection size, Temperature of medium, Valve housing material, Medium pressure, Drive, Drive size, Stroke [mm], Control function und Drive housing material.
VZXA Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VZXA | VZXA- - - - - - - - - - - - | Process valve |
Typcode zur Katalognummer VZXA,
VZXA- - - - - - - - - - - -
| 001 | Series |
|---|---|
| VZXA | Process valve |
| 002 | Flow direction |
| A | Above valve seat, for gaseous media |
| B | Below valve seat, for gaseous and liquid media |
| 003 | Line connection |
| C | Clamp |
| T | Threaded collar |
| W | Welded end |
| 004 | Connection standard |
| S1 | ASME BPE |
| S2 | DIN 11850 R2 |
| S3 | DIN EN ISO 1127 / ISO 4200 |
| S5 | DIN 32676, series A |
| S6 | G thread to DIN ISO 228 |
| S7 | NPT thread to ANSI/A SME B 1.20.1 |
| S13 | Rc thread to DIN 10226 |
| S15 | DIN 32676, series B |
| 005 | Connection size |
| 1/2” | 1/2” |
| 3/4” | 3/4” |
| 1” | 1” |
| 1 1/4” | 1 1/4” |
| 1 1/2” | 1 1/2” |
| 2” | 2” |
| 2 1/2” | 2 1/2” |
| 13 | DN13 |
| 20 | DN20 |
| 25 | DN25 |
| 32 | DN32 |
| 40 | DN40 |
| 50 | DN50 |
| 65 | DN65 |
| 006 | Temperature of medium |
| M2 | -10 ... +180°C |
| M3 | -10 ... +200°C |
| M6 | -10 ... +60°C |
| M7 | 100 … +230°C |
| M9 | 100 … +220°C |
| 007 | Valve housing material |
| V13 | Stainless steel 1.4409 |
| V14 | Stainless steel ASTM A351-CF3M |
| B1 | Brass |
| 008 | Seat seal material |
| P | PEEK |
| T | PTFE |
| TP | PTFE modifi ed |
| 009 | Medium pressure |
|---|---|
| 4 | 0 ... 4 bar |
| 4.4 | 0 ... 4.4 bar |
| 4.8 | 0 ... 4.8 bar |
| 5.6 | 0 ... 5.6 bar |
| 5.8 | 0 ... 5.8 bar |
| 6 | 0 ... 6 bar |
| 6.2 | 0 ... 6.2 bar |
| 6.8 | 0 ... 6.8 bar |
| 7.5 | 0 ... 7.5 bar |
| 8 | 0 ... 8 bar |
| 8.3 | 0 ... 8.3 bar |
| 9.3 | 0 ... 9.3 bar |
| 10 | 0 ... 10 bar |
| 11.5 | 0 ... 11.5 bar |
| 12.2 | 0 ... 12.2 bar |
| 12.8 | 0 ... 12.8 bar |
| 13.5 | 0 ... 13.5 bar |
| 14.5 | 0 ... 14.5 bar |
| 15.5 | 0 ... 15.5 bar |
| 16 | 0 ... 16 bar |
| 23 | 0 ... 23 bar |
| 25 | 0 ... 25 bar |
| 30 | 0 ... 30 bar |
| 010 | Drive |
| K | Piston drive |
| M | Diaphragm actuator |
| 011 | Drive size |
| 46 | 46 mm |
| 75 | 75 mm |
| 90 | 90 mm |
| 012 | Stroke [mm] |
| 17 | 17 |
| 20 | 20 |
| 26 | 26 |
| 013 | Control function |
| Closed via spring force, N/C | |
| D | Double-acting |
| S | Opened via spring force, N/O |
| PR | Closed via reduced spring force, N/C |
| 014 | Drive housing material |
| V4 | Stainless steel 1.4408 |
| PM | Polymer |
| 015 | EU certification |
| None | |
| EX4 | II 2GD |
