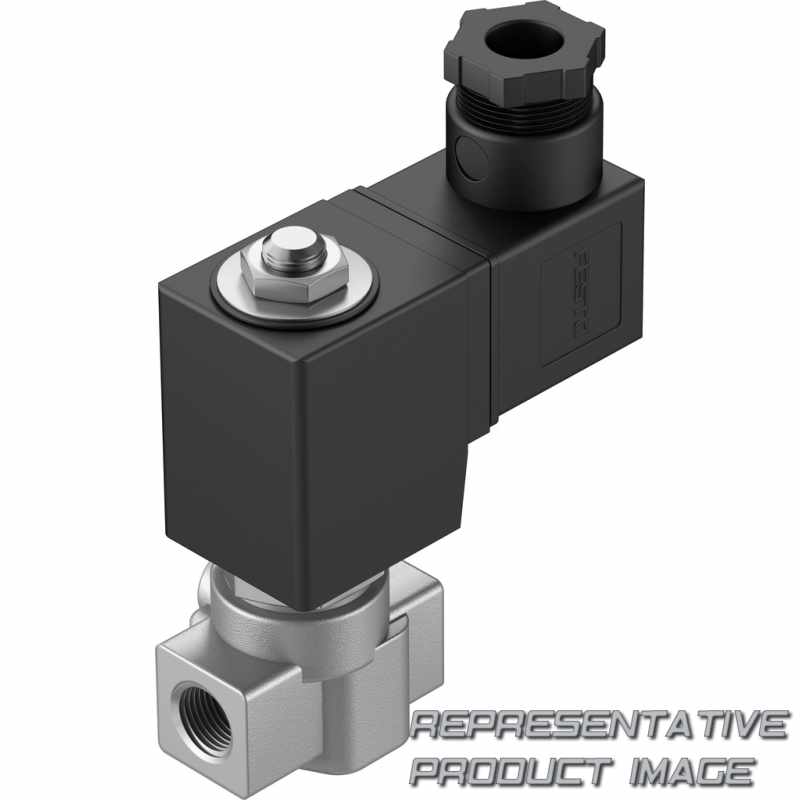

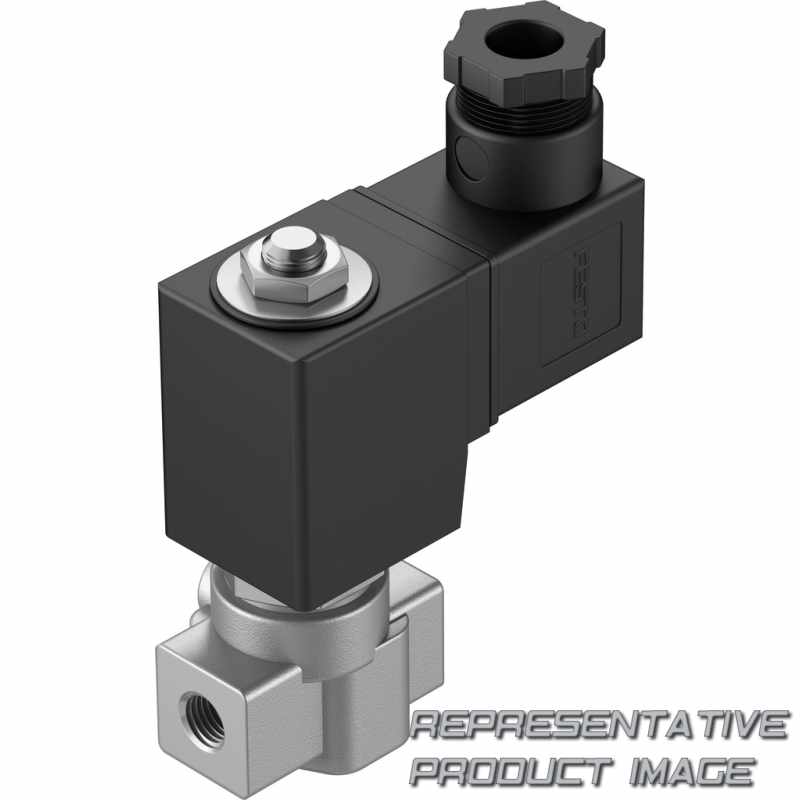

FESTO VZWD
234 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VZWD – Solenoid valve, directly actuated VZWD. Finden Sie das passende Produkt durch Filtern mit Process valve connection, Nominal width, Nominal operating voltage, Pressure of medium [bar] und Corrosion protection.
VZWD Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VZWD | VZWD-L-M22C-M- - -V- -P4- | Solenoid valve, directly actuated VZWD |
Typcode zur Katalognummer VZWD,
VZWD-L-M22C-M- - -V- -P4-
| 001 | Series |
|---|---|
| VZWD | Solenoid valve, directly actuated VZWD |
| 002 | Directional control valve type |
| L | In-line valve |
| 003 | Valve function |
| M22C | 2/2-way valve, normally closed |
| 004 | Reset method for monostable/single solenoid valves |
| M | Mechanical spring |
| 005 | Process valve connection |
| G18 | G1/8 |
| G14 | G1/4 |
| N18 | 1/8 NPT |
| N14 | 1/4 NPT |
| 006 | Nominal width |
| 10 | 1 mm |
| 15 | 1.5 mm |
| 20 | 2 mm |
| 25 | 2.5 mm |
| 30 | 3 mm |
| 40 | 4 mm |
| 50 | 5 mm |
| 60 | 6 mm |
| 007 | Sealant |
| V | FPM |
| 008 | Nominal operating voltage |
|---|---|
| 1 | 24 V DC |
| 2A | 110 V AC/50-60 Hz |
| 3A | 230 V AC/50-60 Hz |
| 009 | Electrical connection |
| P4 | Plug socket, 3-wire |
| 010 | Pressure of medium [bar] |
| 4 | 4 |
| 5 | 5 |
| 8 | 8 |
| 15 | 15 |
| 22 | 22 |
| 30 | 30 |
| 40 | 40 |
| 50 | 50 |
| 85 | 85 |
| 90 | 90 |
| 011 | Corrosion protection |
| Standard | |
| R1 | Stainless steel |
