FESTO VZQA
60 Produkte

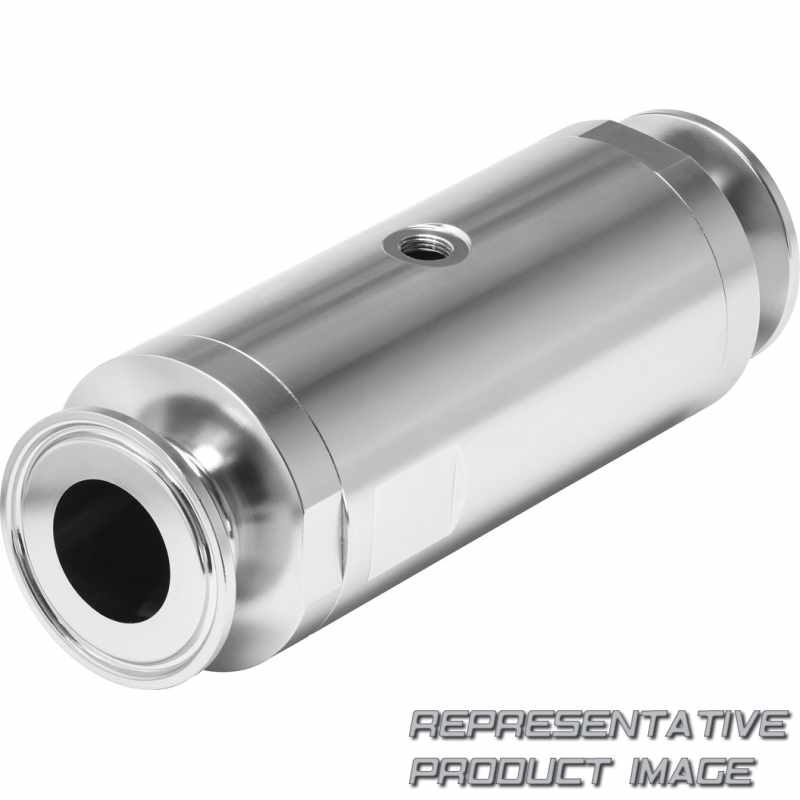

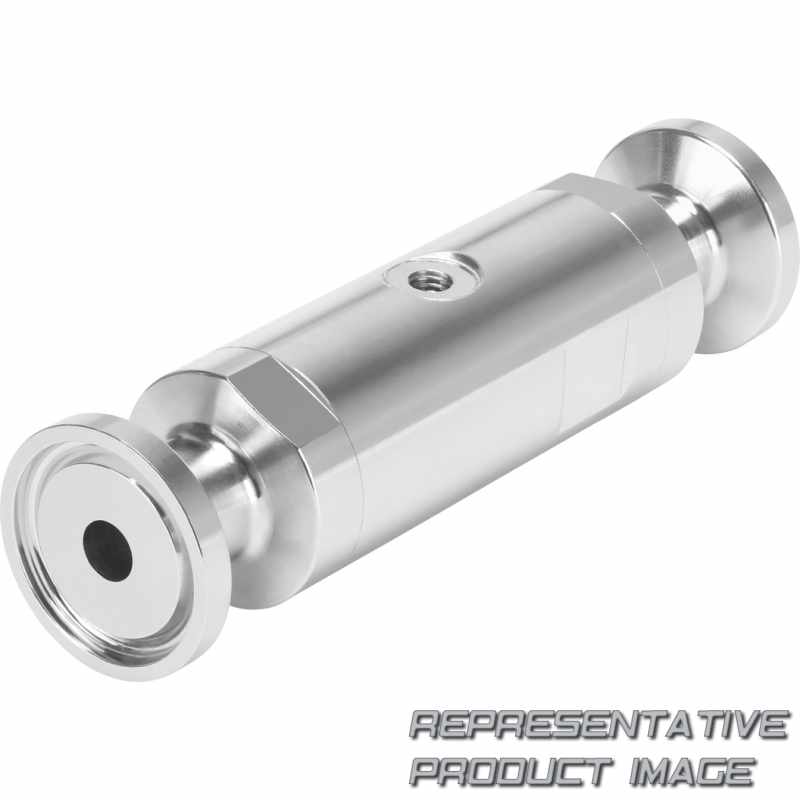

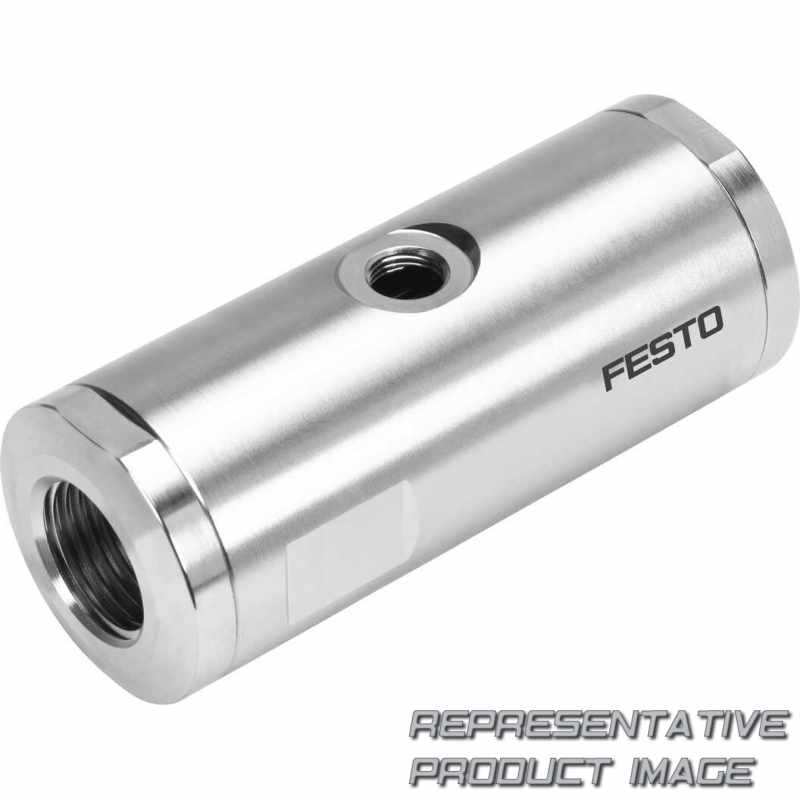

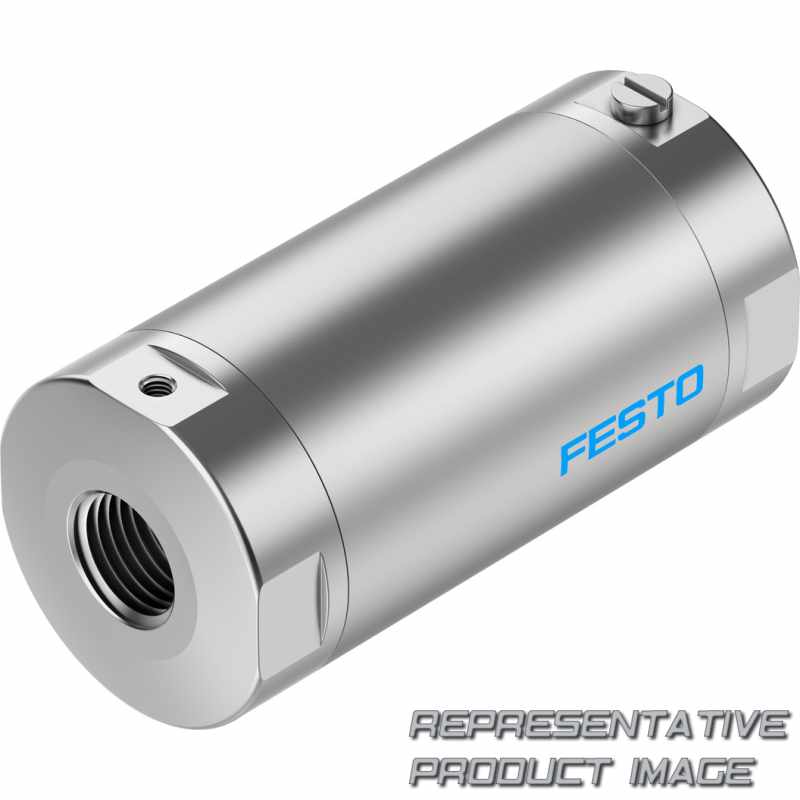

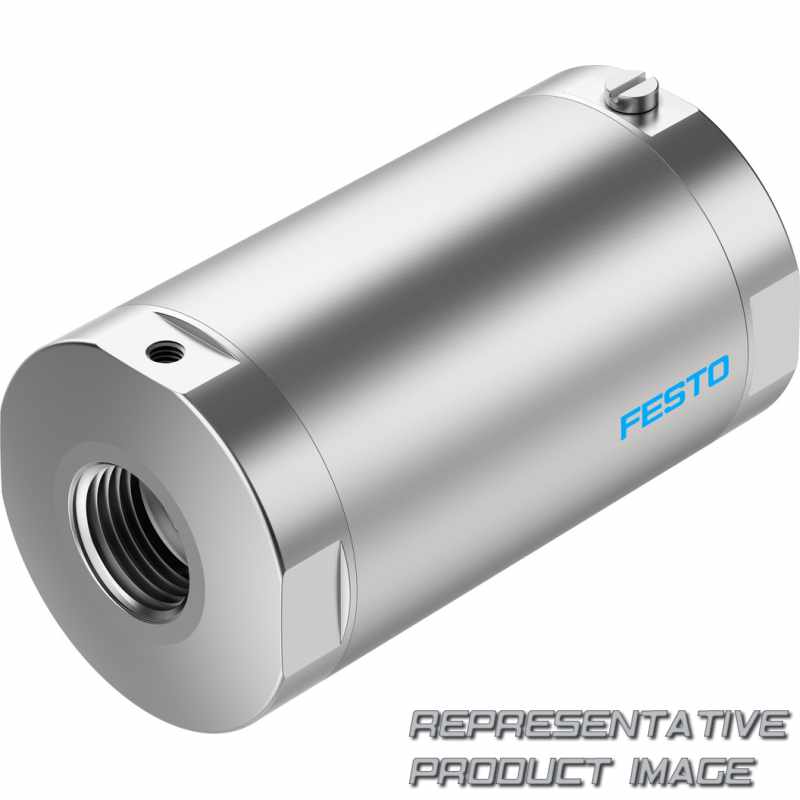

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VZQA – Pinch valve, pneumatically actuated. Finden Sie das passende Produkt durch Filtern mit Ventilfunktion, Nominal diameter DN [mm], Process valve connection type 1, Process valve connection type 2, Gehäusematerial, Housing cover material, Shut-off element material, Pressure range of media, Type of sensing und Temperature range.
VZQA Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VZQA | VZQA-C- - - - - - - - | Pinch valve, pneumatically actuated |
Typcode zur Katalognummer VZQA,
VZQA-C- - - - - - - -
| 001 | Series |
|---|---|
| VZQA | Pinch valve, pneumatically actuated |
| 002 | Product version |
| C | Easy-to-clean design |
| 003 | Valve function |
| M22C | 2/2-way valve, normally closed |
| M22U | 2/2-way valve, normally open |
| 004 | Nominal diameter DN [mm] |
| 6 | 6 |
| 15 | 15 |
| 25 | 25 |
| 50 | 50 |
| 005 | Process valve connection type 1 |
| G | G female thread |
| S1 | Clamp ferrule to ASME-BPE, type A |
| S5 | Clamp ferrule to DIN 32676, series A |
| S12 | Clamp ferrule to ASME-BPE, type B |
| T | NPT female thread |
| 006 | Process valve connection type 2 |
| G | G female thread |
| S1 | Clamp ferrule to ASME-BPE, type A |
| S5 | Clamp ferrule to DIN 32676, series A |
| S12 | Clamp ferrule to ASME-BPE, type B |
| T | NPT female thread |
| 007 | Housing material |
| AL | Aluminium |
| V2 | Stainless steel (nickel-chrome austenitic/1.4301, 1.4303, 1.4306 (AISI 304L)) |
| V4 | Stainless steel (chrome-nickel-molybdenum, austenit- ic/1.4401, 1.4404 (AISI 316L), 1.4408) |
| 008 | Housing cover material |
|---|---|
| AL | Aluminium |
| V4 | Stainless steel |
| POM | Polyoxymethylene |
| 009 | Shut-off element material |
| E | EPDM |
| N | NBR |
| S1 | Silicone |
| 010 | Pressure range of media |
| 2 | 0 ... 2 bar |
| 4 | 0 ... 4 bar |
| 6 | 0 ... 6 bar |
| 5 | 0 ... 5 bar |
| 011 | Type of sensing |
| None | |
| E | End positions |
| 012 | Temperature range |
| Standard | |
| T28 | -5 ... +60 °C |
| 013 | Use in a potentially explosive atmosphere |
| No | |
| EXA | Assessed for use in an explosive atmosphere |
