FESTO VZBE
86 Produkte
Technische Daten
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VZBE – Ball valve. Finden Sie das passende Produkt durch Filtern mit Nominal diameter DN, Process valve connection, Design type, Ventilfunktion, Flanged connection, Actuation type und Shut-off element material.
VZBE Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VZBE | VZBE- - -63- - -V15- | Ball valve |
Typcode zur Katalognummer VZBE,
VZBE- - -63- - -V15-
| 001 | Series |
|---|---|
| VZBE | Ball valve |
| 002 | Nominal diameter DN |
| 1/4 | 1/4” |
| 3/8 | 3/8” |
| 1/2 | 1/2” |
| 3/4 | 3/4” |
| 1 | 1” |
| 11/4 | 1 1/4” |
| 11/2 | 1 1/2” |
| 2 | 2” |
| 21/2 | 2 1/2” |
| 3 | 3” |
| 4 | 4” |
| 003 | Process valve connection |
| T | NPT female thread |
| WA | Welding socket |
| 004 | Nominal pressure |
| 63 | 63 |
| 005 | Design type |
| D | Two-part |

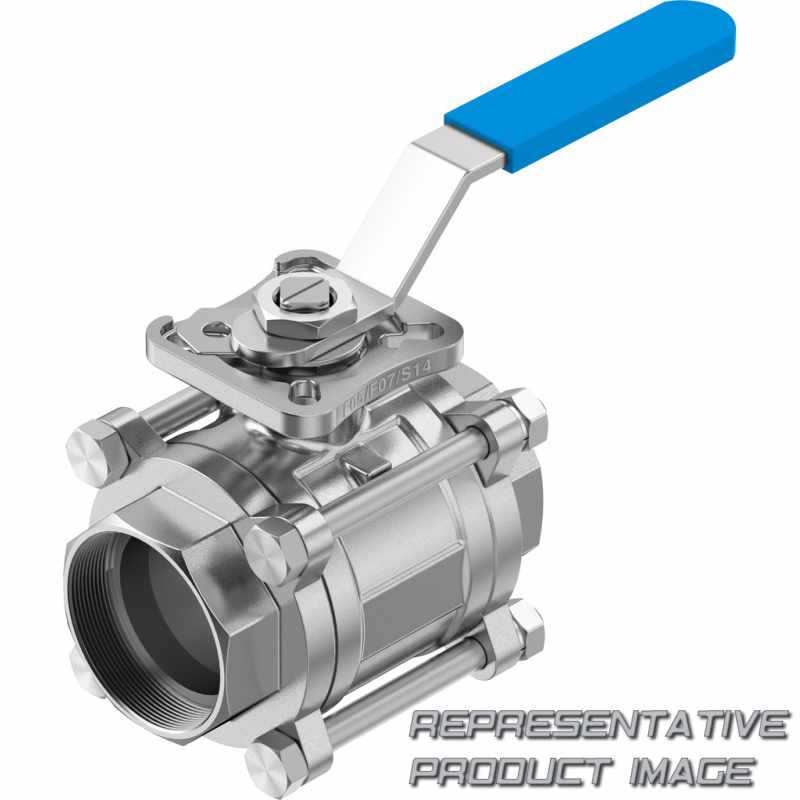

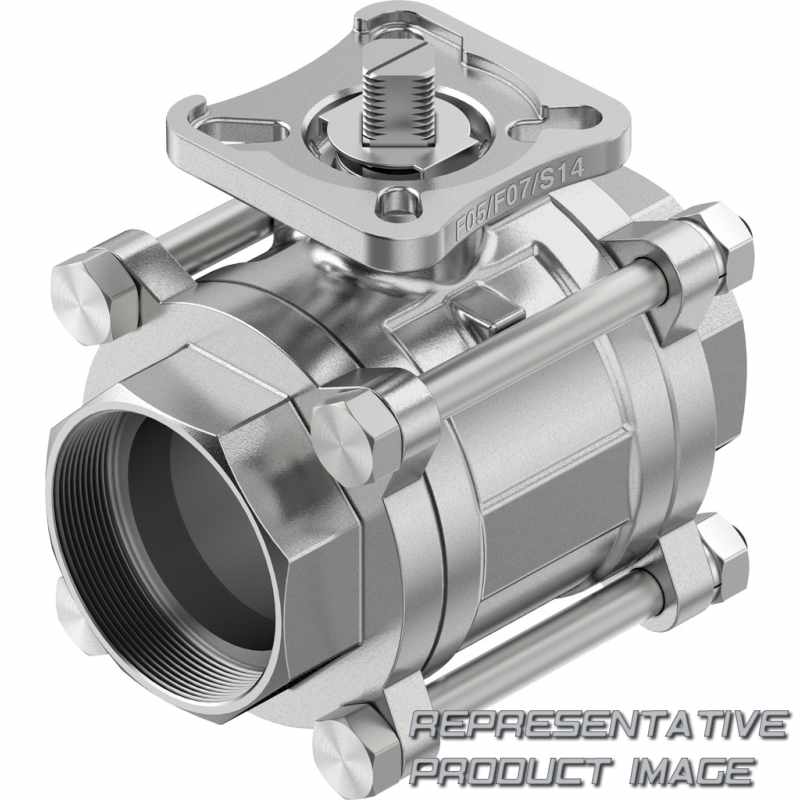

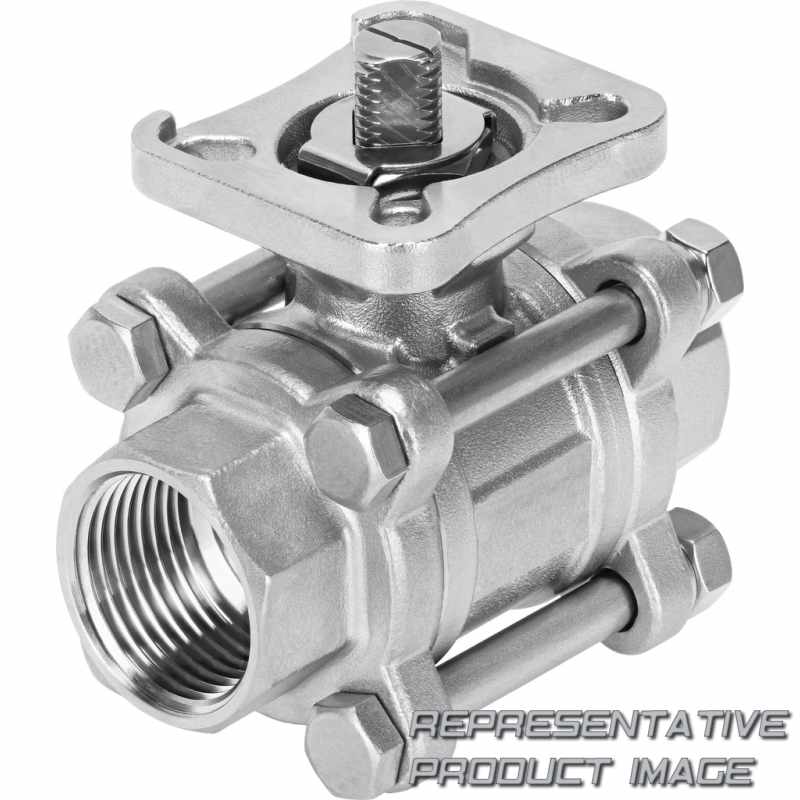

| T | Three-part |
| F | Four-part |
| 006 | Valve function |
|---|---|
| 2 | 2/2-way |
| 3L | 3/2-way, L-bore |

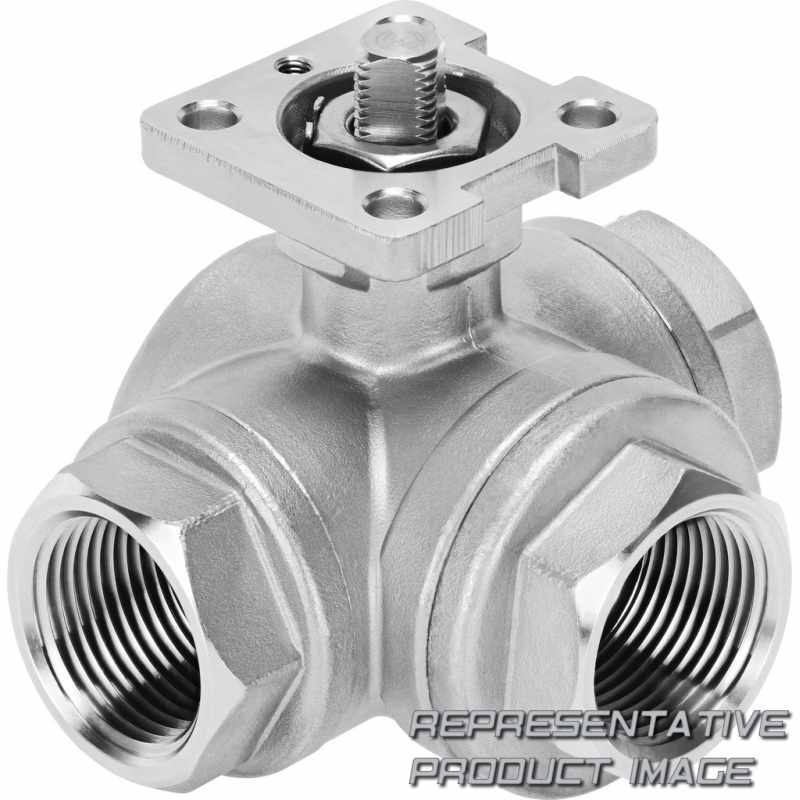

| 3T | 3/2-way, T-bore |
| 007 | Flanged connection |
| Standard | |
| F0304 | Hole pattern 03 and 04 |
| F04 | Hole pattern 04 |
| F0405 | Hole pattern 04 and 05 |
| F05 | Hole pattern 05 |
| F0507 | Hole pattern 05 and 07 |
| F0710 | Hole pattern 07 and 10 |
| F1012 | Hole pattern 10 and 12 |
| 008 | Actuation type |
| Via drive | |

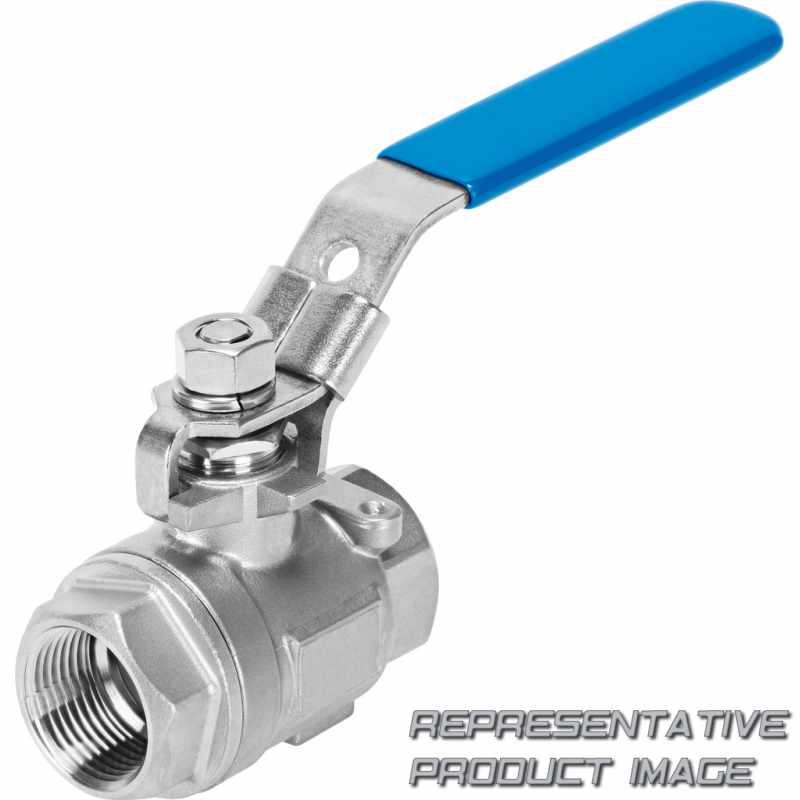

| M | With hand lever |
| 009 | Housing material |
| V15 | Stainless steel ASTM A351-CF8M |
| 010 | Shut-off element material |
| V15 | Stainless steel ASTM A351-CF8M |
| V16 | Stainless steel ASTM A240-316/1.4401 |
