VTOE Festo

FESTO VTOE

12 Produkte

Technische Daten

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VTOE – Dispense head. Finden Sie das passende Produkt durch Filtern mit Valve positions, Output connection, Diaphragm and sealing material, Gehäusematerial, Manifold block material und Valve control.

VTOE Typcodes

Serie	Katalognummernformat	Beschreibung
VTOE	VTOE- -T3-M22C-08- - - -	Dispense head

Typcode zur Katalognummer VTOE, VTOE- -T3-M22C-08- - - -

001	Series
VTOE	Dispense head
002	Valve positions
	1 valve position
8	8 valve positions
003	Output connection
D9	Nozzle, length 30 mm, nominal size 1.0 mm
D7	Nozzle, length 30 mm, nominal size 0.32 mm
D8	Nozzle, length 30 mm, nominal size 0.6 mm
004	Input connection
T3	For tubing 3 mm
005	Valve function
M22C	2/2-way valve, normally closed
006	Nominal width

007	Diaphragm and sealing material
08	0.8 mm
F	FFPM
V	FPM
008	Housing material
P	PEEK
S	PPS
009	Manifold block material
P	PEEK
PC	Polycarbonate
010	Valve control
M	Multi-pin electric
S	Individual connection, electric, with ﬂ ying leads, 0.2 m

Produkte

Zeige 1 Produkt bis 12 von insgesamt 12

Katalognummer	Teilenummer	Valve positions	Output connection	Diaphragm and sealing material	Gehäusematerial

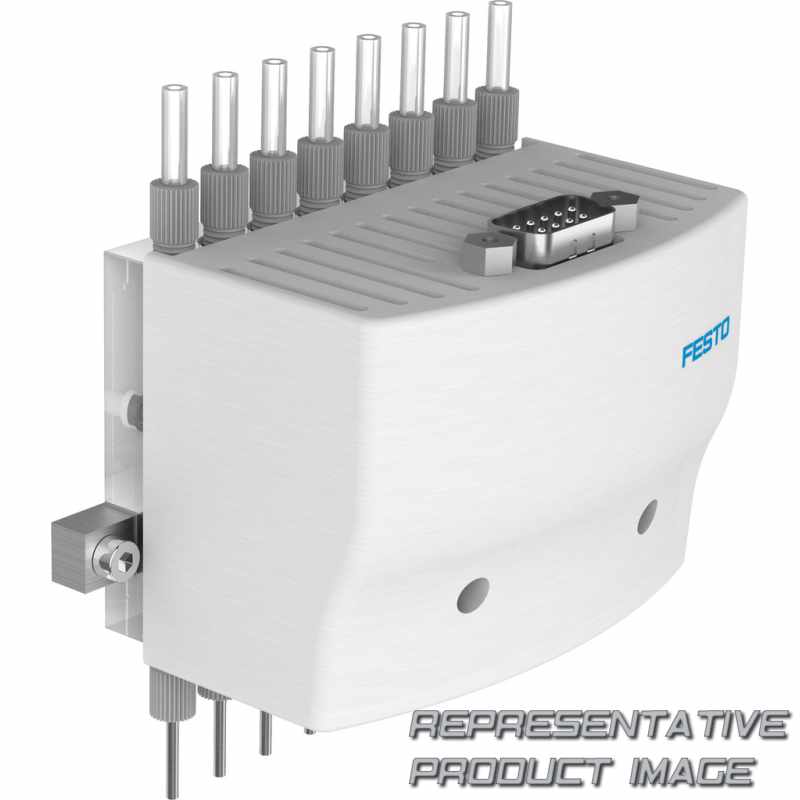

VTOE-8-D7-T3-M22C-08-F-P-P-M	8063637	8 valve positions	Nozzle, length 30 mm, nominal size 0.32 mm	FFPM	PEEK
VTOE-8-D7-T3-M22C-08-V-S-PC-M	8063634	8 valve positions	Nozzle, length 30 mm, nominal size 0.32 mm	FPM	PPS
VTOE-8-D8-T3-M22C-08-F-P-P-M	8063638	8 valve positions	Nozzle, length 30 mm, nominal size 0.6 mm	FFPM	PEEK
VTOE-8-D8-T3-M22C-08-V-S-PC-M	8063635	8 valve positions	Nozzle, length 30 mm, nominal size 0.6 mm	FPM	PPS
VTOE-8-D9-T3-M22C-08-F-P-P-M	8063639	8 valve positions	Nozzle, length 30 mm, nominal size 1.0 mm	FFPM	PEEK
VTOE-8-D9-T3-M22C-08-V-S-PC-M	8063636	8 valve positions	Nozzle, length 30 mm, nominal size 1.0 mm	FPM	PPS

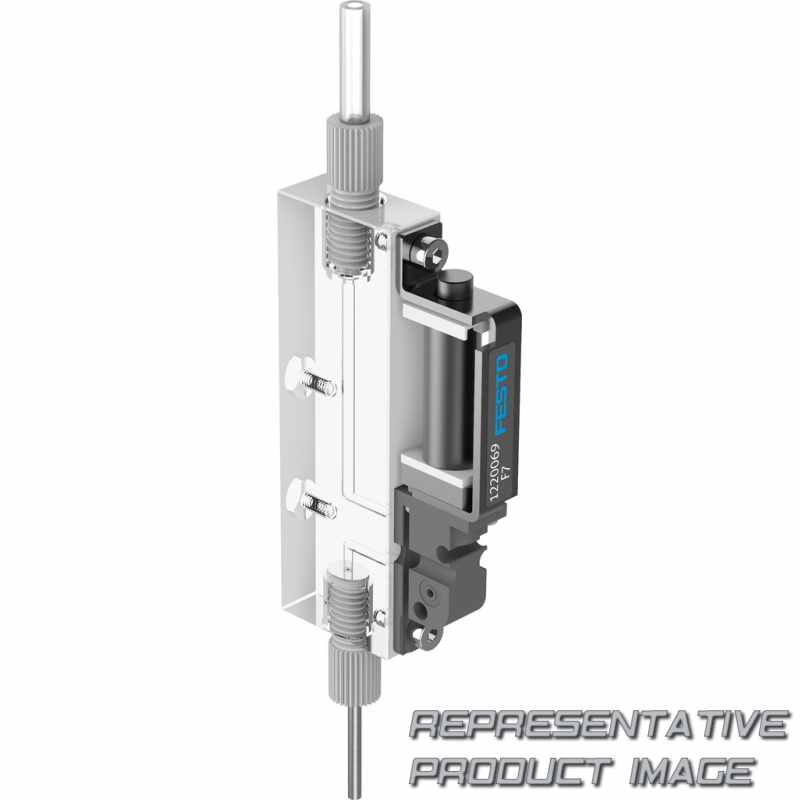

VTOE-D7-T3-M22C-08-F-P-P-S	8063372	1 valve position	Nozzle, length 30 mm, nominal size 0.32 mm	FFPM	PEEK
VTOE-D7-T3-M22C-08-V-S-PC-S	8063369	1 valve position	Nozzle, length 30 mm, nominal size 0.32 mm	FPM	PPS
VTOE-D8-T3-M22C-08-F-P-P-S	8063373	1 valve position	Nozzle, length 30 mm, nominal size 0.6 mm	FFPM	PEEK
VTOE-D8-T3-M22C-08-V-S-PC-S	8063370	1 valve position	Nozzle, length 30 mm, nominal size 0.6 mm	FPM	PPS
VTOE-D9-T3-M22C-08-F-P-P-S	8063374	1 valve position	Nozzle, length 30 mm, nominal size 1.0 mm	FFPM	PEEK
VTOE-D9-T3-M22C-08-V-S-PC-S	8063371	1 valve position	Nozzle, length 30 mm, nominal size 1.0 mm	FPM	PPS
