FESTO 546721 Pneumatikventil

VSPA-B-T32C-A2

81,43 €
1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Baureihe (VSPA) Standards-based valve to ISO 15407-1/-2
Directional control valve type (B) Sub-base valve
Ventilfunktion (T32C) 2x3/2-way valve, normally closed
Reset method for monostable/single solenoid valves None
Pneumatischer Anschluss (A2) 18 mm (02) ISO 15407-1/-2
Werkstoff Schrauben Steel Galvanised
Werkstoff Dichtungen NBR
Pneumatischer Anschluss 5 Sub-base size 18 mm to ISO 15407-1
Pneumatischer Anschluss 3 Sub-base size 18 mm to ISO 15407-1
Pneumatischer Anschluss 1 Sub-base size 18 mm to ISO 15407-1
Anschluss Steuerluft 12 Sub-base size 18 mm to ISO 15407-1
Max. tightening torque for valve mounting 0,9 Nm ... 1,1 Nm
Steuermedium Compressed air to ISO 8573-1:2010 [7:4:4]
Mediumstemperatur -10 °C ... 60 °C
Hinweis zum Betriebs-/Steuermedium Lubricated operation possible (in which case lubricated operation will always be required)
Explosionsschutz Zone 2 (ATEX) Zone 22 (ATEX)
Schaltzeit aus 15 ms
Flow rate of valve on individual sub-base 450 l/min
Steuerdruck 2 bar ... 10 bar

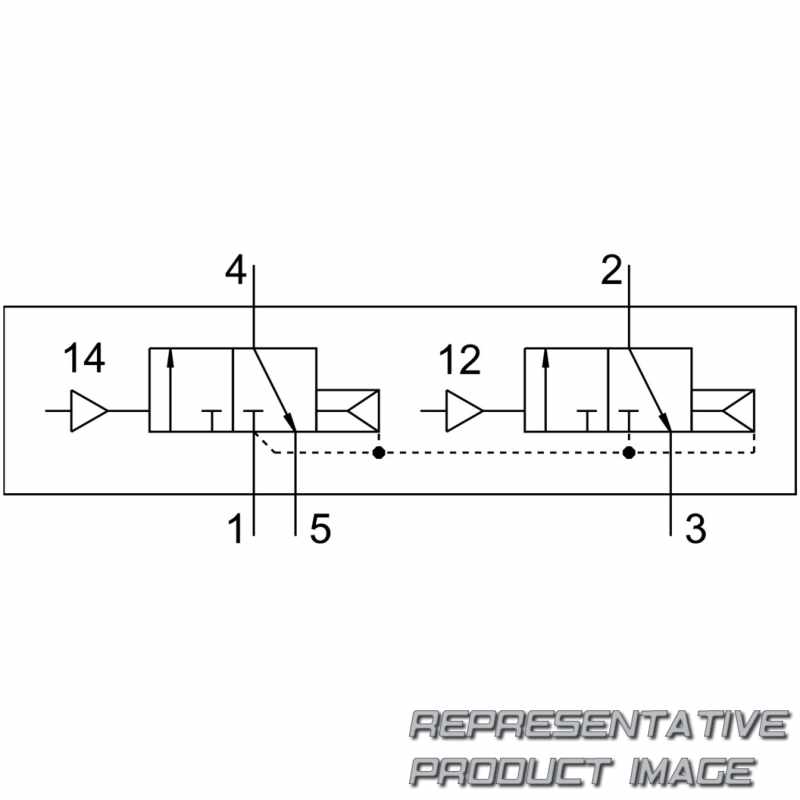

Symbol 00991986
Steuerart Direct
Einbaulage optional
Abluftfunktion With flow control option
Rückstellart Pneumatic spring
Betriebsdruck 2 bar ... 10 bar
Standard nominal flow rate 400 l/min
Betätigungsart Pneumatic
Werkstoff Gehäuse Die-cast aluminium
Werkstoff-Hinweis RoHS-compliant
Pneumatischer Anschluss 4 Sub-base size 18 mm to ISO 15407-1
Pneumatischer Anschluss 2 Sub-base size 18 mm to ISO 15407-1
Pilot air port 14 Sub-base size 18 mm to ISO 15407-1
Produktgewicht 80 g
Umgebungstemperatur -10 °C ... 60 °C
Relative Luftfeuchtigkeit 0 - 90%
Korrosionsbeständigkeitsklasse KBK 0 - No corrosion stress
Betriebsmedium Compressed air to ISO 8573-1:2010 [7:4:4]
Schaltzeit ein 10 ms
Flow rate of pneumatically interlinked valve 400 l/min
Flow rate of valve 600 l/min
Überdeckung Positive overlap
Strömungsrichtung Non-reversible
Entspricht Norm ISO 15407-1 VDMA 24563
Dichtprinzip Soft
Nennweite 5 mm
Konstruktiver Aufbau Piston gate valve
Pneumatischer Arbeitsanschluss Sub-base size 18 mm to ISO 15407-1 Sub-base size 02 to VDMA 24563 G1/8
Baubreite 18 mm
Ventilfunktion 2x3/2-way, monostable, closed
81,43 €
Lagerbestand 1 Stk.
Teilenummer 546721
Hersteller FESTO
