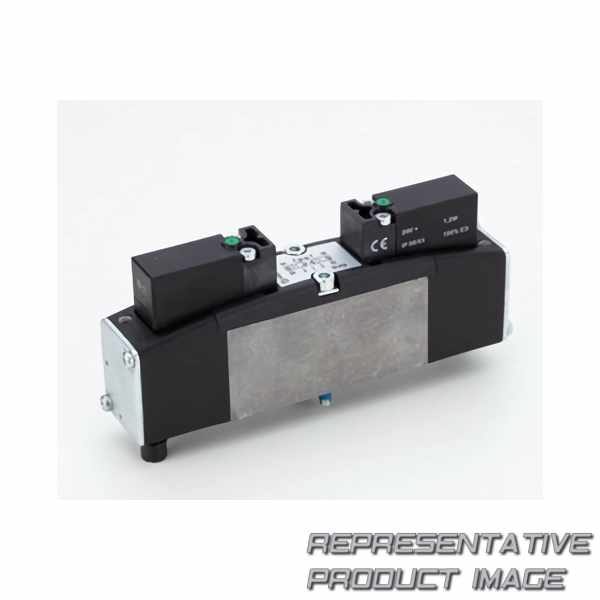

NORGREN VS26SB11DF213A plug-in mini iso valve islands

Name: VS26SB11DF213A NORGREN
Brand: NORGREN
SKU: 789617-de-eur
Price: 196.87 EUR
Availability: InStock

196,87 € ~~216,87 €~~ -9%

verfügbar mit 3 bis 7 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	solenoid pilot / solenoid pilot
max. Druck	10 bar

Versorgungsspannung	24vdc
Gewicht	290g

actuation		solenoid pilot / solenoid pilot
data performance shelf life		3 years
flow flow dm3sec		22.5 dm3/sec
fluid temperature temperature celsius min to max range		-5 ... 50 °c
maximum operating pressure pressure bar		10 bar
mil spec		available on request
operating temperature temperature celsius min to max range		-15 ... 50 °c
product style		sub-base
range		vs26
Standard		iso 15407-2
voltage		24vdc

data performance b10 value number of cycles		12000000
eu country of origin		czechia
flow flow litresperminute		1350 l/m
Handhilfsbetätigung		push only
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		5 ... 122 °f
pilot		internal
Schutzklasse		ip65
spool technology		softseal spool
valve operation		2x3/2
