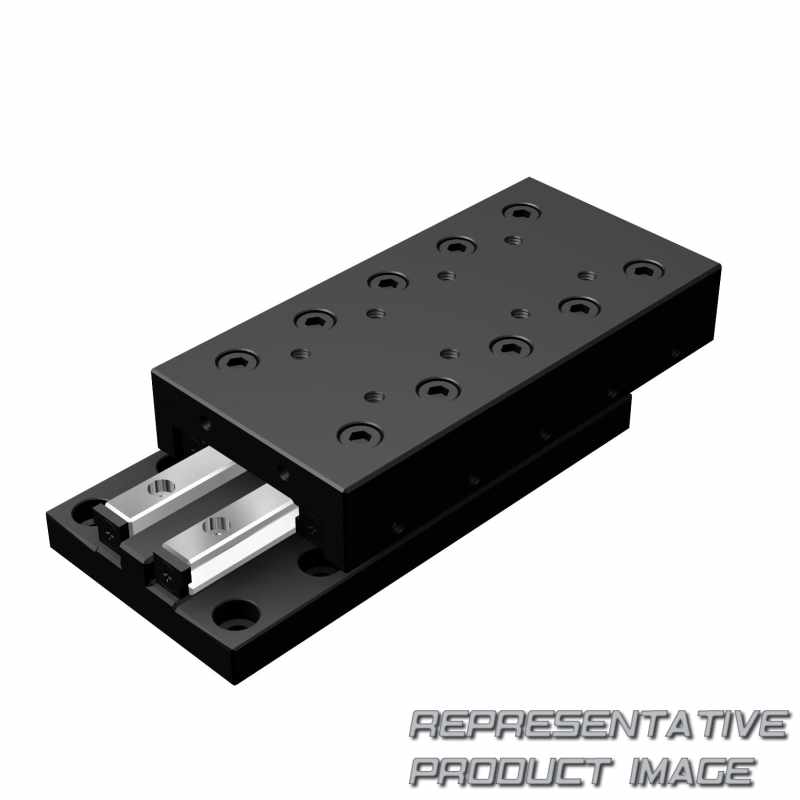

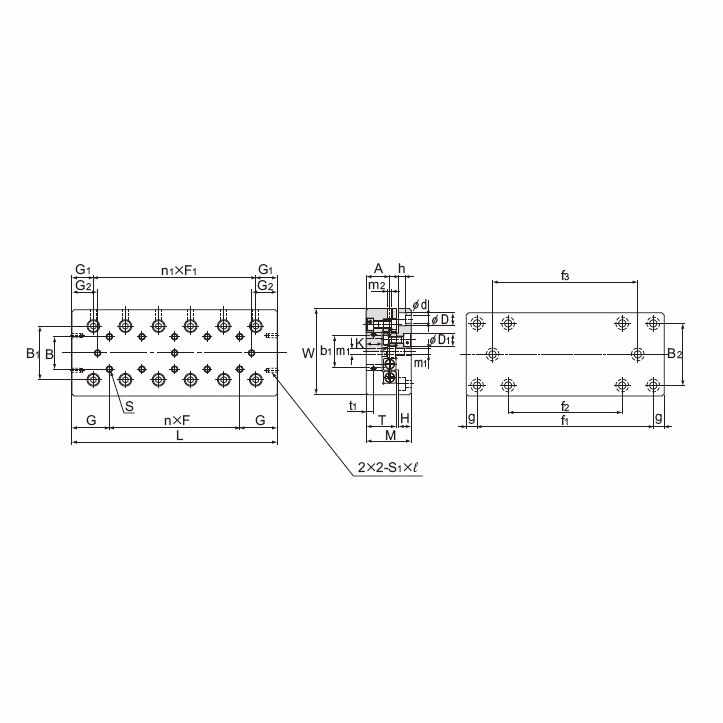

| Width (mm) | 30 | ||
| max stroke (mm) | 32 | ||
| widthw±0.1 - mm | 30 | ||
| lengthl - mm | 55 | ||
| table mounting tap position - nxf - mm | 3x10 | ||
| table mounting tap position - s - mm | m2 | ||
| base surface dimensionsmounting hole position - f1 - mm | 48 | ||
| base surface dimensionsmounting hole position - g - mm | 3,50 | ||
| basic loadrating - c - kn | 1,09 | ||
| static permissible moment rating - ma - n-m | 5,92 | ||
| static permissible moment rating - mc - n-m | 12,40 | ||
| accuracy - Δd - μm | 5 |
| Height (mm) | 17 | ||
| maxstroke - mm | 32 | ||
| heightm±0.1 - mm | 17 | ||
| table mounting tap position - b - mm | 10 | ||
| table mounting tap position - g - mm | 12,50 | ||
| base surface dimensionsmounting hole position - b2 - mm | 22 | ||
| base surface dimensionsmounting hole position - f2 - mm | 28 | ||
| no.ofrollersz | 12 | ||
| basic loadrating - c0 - kn | 1,83 | ||
| static permissible moment rating - mb - n-m | 6,41 | ||
| accuracy - Δc - μm | 2 |
