| Material regulator housing | PA | ||
| Material control panel | PA | ||
| Pressure gauge connection | Via retaining clamp | ||
| Produktgewicht | 180 g | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| LABS-Konformität | VDMA24364-B1/B2-L | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Eingangsdruck 1 | 0,5 bar ... 10 bar | ||
| Selection of pressure gauge | Possible | ||
| Controller function | Output pressure constant With secondary venting | ||
| Einbaulage | optional |
| Werkstoff Dichtungen | NBR | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Mounting with vertical stacking | On manifold sub-base | ||
| Max. Anziehdrehmoment | 0,65 Nm | ||
| Schutzart | IP65 To IEC 60529 | ||
| Korrosionsbeständigkeitsklasse KBK | 1 - Low corrosion stress | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Druckregelbereich | 0,5 bar ... 6 bar | ||

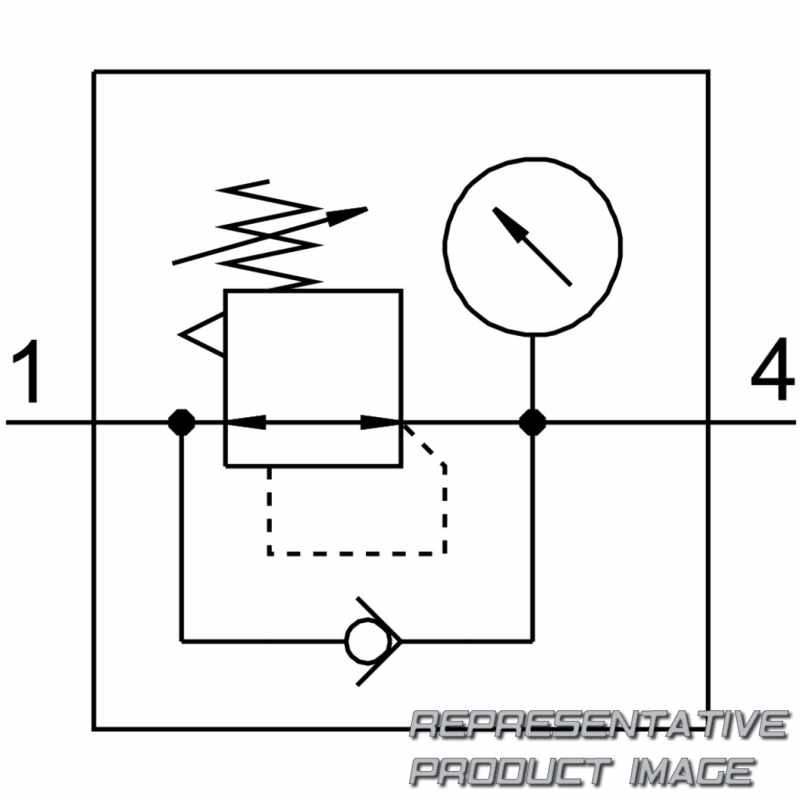

| Symbol | 00992002 | ||
| Vertical pneumatic linkage | Pressure regulator for 4 reversible | ||
| Baubreite | 21 mm |
