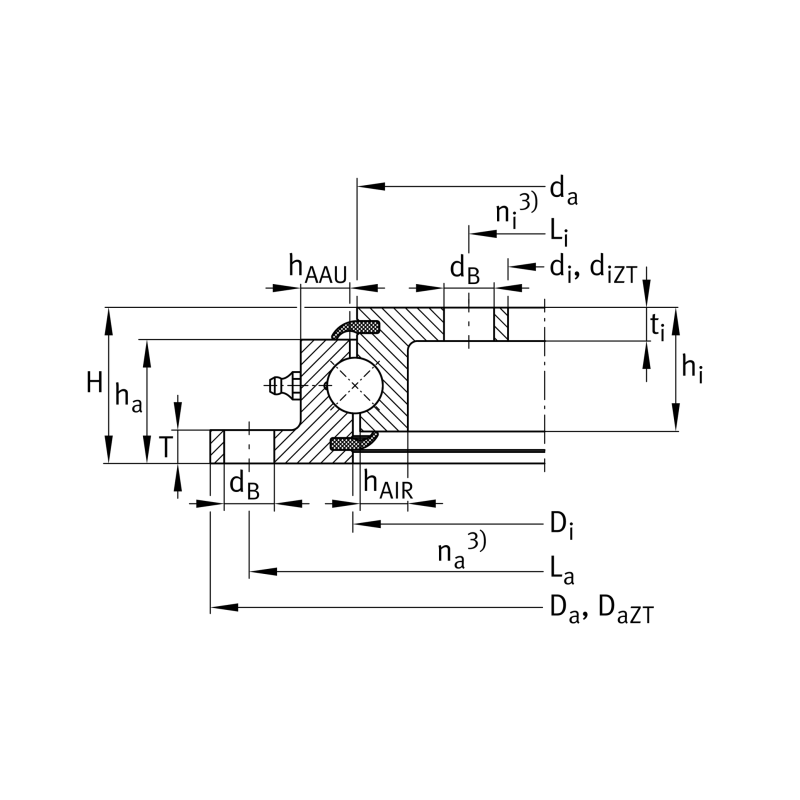

| Inner diameter inner ring | di | 834 | mm |
| Höhe | T | 56 | mm |
| Outside diameter lower tolerance | -0,70 | mm | |
| Length centering inner ring | t | 12 | mm |
| Width inner ring | B | 44,50 | mm |
| Inner diameter inner ring upper tolerance | 0,70 | ||
| Außen-Ø | D | 1,048 | |
| Length centering outer ring | T | 12 | mm |
| Width Outer ring | C | 44,50 | mm |
| Inner diameter outer ring upper tolerance | 0,70 | ||
| Outside diameter inner ring lower tolerance | -0,70 | mm | |
| Pitchcircle diameter fixing holes outer ring | La | 1,020 | |
| Pitchcircle diameter fixing holes inner ring | Li | 862 | mm |
| Max. radial load fixing screws (friction locking) | Fr zul | 124,800 |
| Outside diameter inner ring | da | 942,50 | mm |
| Fixing bore | dB | 18 | mm |
| Number of fixing holes in outer ring | na | 16 | |
| Number of fixing holes in inner ring | ni | 20 | |
| Ring cross section | hA | 20 | mm |
