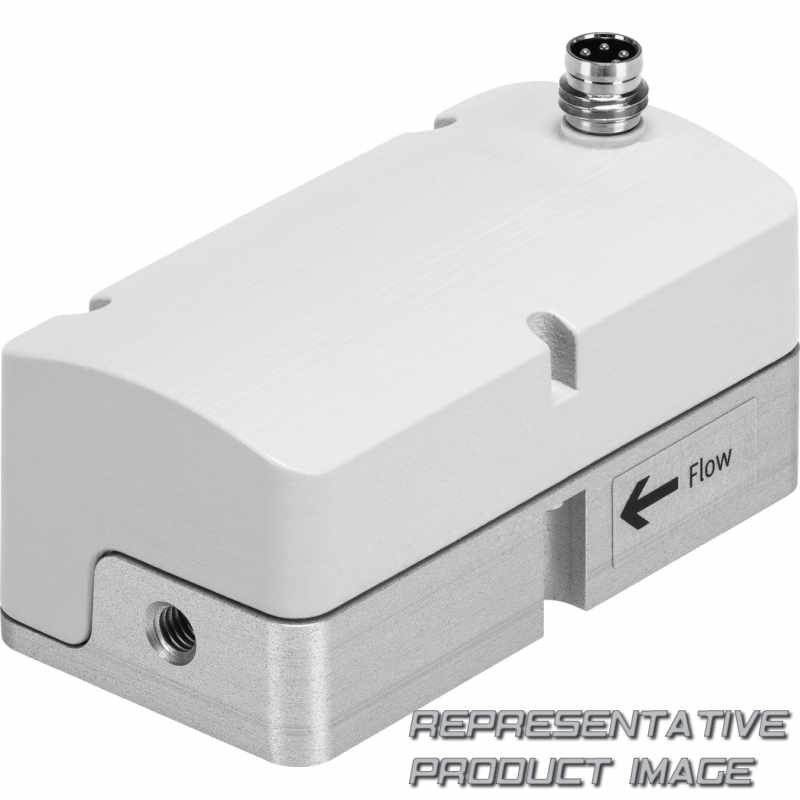

FESTO VEMD
2 Produkte
Technische Daten
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VEMD – Proportional fl ow control valve. Finden Sie das passende Produkt durch Filtern mit und Nominal operating voltage.
VEMD Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VEMD | VEMD--L-6- - - - - - - | Proportional fl ow control valve |
Typcode zur Katalognummer VEMD,
VEMD--L-6- - - - - - -
| 001 | Series |
|---|---|
| VEMD | Proportional fl ow control valve |
| 002 | Variant |
| Plug and play | |
| 003 | Directional control valve type |
| L | In-line valve |
| 004 | Valve function |
| 6 | 2/2-way valve, normally closed |
| 005 | Nominal width |
| 14 | 1.4 mm |
| 60 | 6 mm |
| 006 | Flow rate range |
| 20 | 20 l/min |
| 200 | 200 l/min |
| 007 | Pressure range [bar] |
| D9 | 0 ... 6 |
| D21 | 0 ... 2.5 |
| 008 | Pneumatic connection |
| G14 | G1/4 |
| M5 | M5 |
| 009 | Nominal operating voltage |
|---|---|
| 1 | 24 V DC |
| 5 | 12 V DC |
| 5Y | 12 V DC to 26 V DC |
| 010 | Bus protocol/activation |
| None | |
| MP | Multiprotocol |
| 011 | Electrical connection |
| M1 | Multi-pin with SUB-D plug |
| R1 | Individual connector M8, 4-pin |
| 012 | Display |
| None | |
| D | Display |
| 013 | Setpoint input for individual valves |
| V4 | 0.2 ... 10 V |
| VA | 0 ... 10 V and 4 ... 20 mA |
