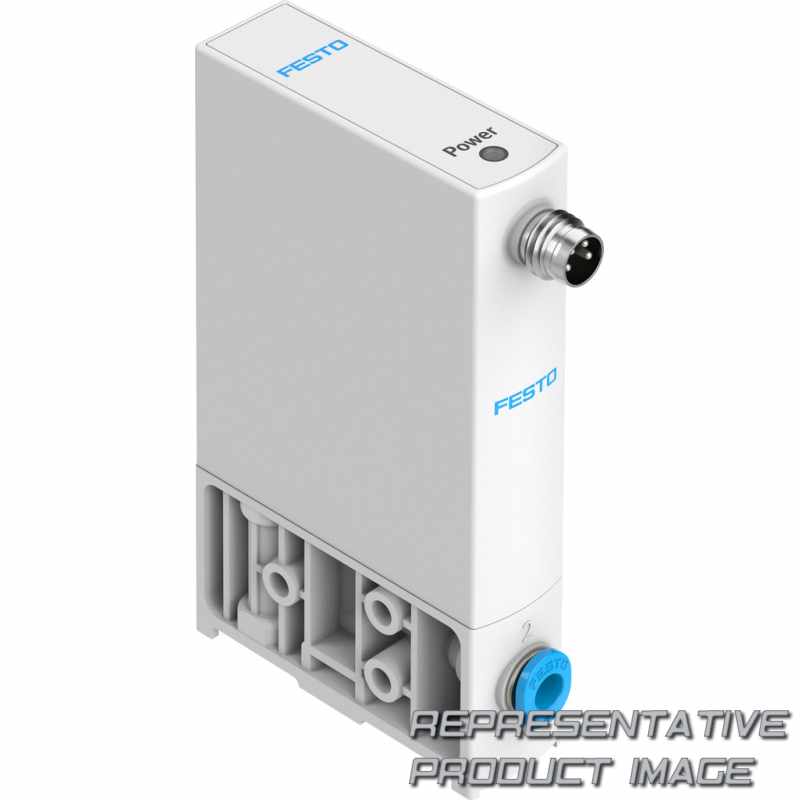

VEAA Festo

FESTO VEAA

18 Produkte

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VEAA – Proportional pressure regulator. Finden Sie das passende Produkt durch Filtern mit Directional control valve type, Pressure range [bar], Pneumatischer Anschluss und Setpoint input for individual valves.

VEAA Typcodes

Serie	Katalognummernformat	Beschreibung
VEAA	VEAA- -3- - - -1-R1	Proportional pressure regulator

Typcode zur Katalognummer VEAA, VEAA- -3- - - -1-R1

001	Series
VEAA	Proportional pressure regulator
002	Directional control valve type
L	In-line valve
B	Sub-base valve
003	Valve function
3	3/3-way valve, normally closed
004	Pressure range [bar]
D11	0 ... 10
D9	0 ... 6
D2	0 ... 2
005	Pneumatic connection

006	Setpoint input for individual valves
F	Flange/sub-base
Q4	Push-in connector 4 mm
A4	4 ... 20 mA
V1	0 ... 10 V
V2	0 ... 5 V
007	Nominal operating voltage
1	24 V DC
008	Electrical connection
R1	Individual connector M8, 4-pin

Produkte

Zeige 1 Produkt bis 12 von insgesamt 18

Katalognummer	Teilenummer	Directional control valve type	Pressure range [bar]	Setpoint input for individual valves
VEAA-B-3-D11-F-A4-1R1	8046897	Sub-base valve	0 ... 10	4 ... 20 mA
VEAA-B-3-D11-F-V1-1R1	8046896	Sub-base valve	0 ... 10	0 ... 10 V
VEAA-B-3-D11-F-V2-1R1	8153644	Sub-base valve	0 ... 10	0 ... 5 V
VEAA-B-3-D2-F-A4-1R1	8046893	Sub-base valve	0 ... 2	4 ... 20 mA
VEAA-B-3-D2-F-V1-1R1	8046892	Sub-base valve	0 ... 2	0 ... 10 V
VEAA-B-3-D2-F-V2-1R1	8153642	Sub-base valve	0 ... 2	0 ... 5 V
VEAA-B-3-D9-F-A4-1R1	8046895	Sub-base valve	0 ... 6	4 ... 20 mA
VEAA-B-3-D9-F-V1-1R1	8046894	Sub-base valve	0 ... 6	0 ... 10 V
VEAA-B-3-D9-F-V2-1R1	8153643	Sub-base valve	0 ... 6	0 ... 5 V
VEAA-L-3-D11-Q4-A4-1R1	8046906	In-line valve	0 ... 10	4 ... 20 mA
VEAA-L-3-D11-Q4-V1-1R1	8046905	In-line valve	0 ... 10	0 ... 10 V
VEAA-L-3-D11-Q4-V2-1R1	8126196	In-line valve	0 ... 10	0 ... 5 V
